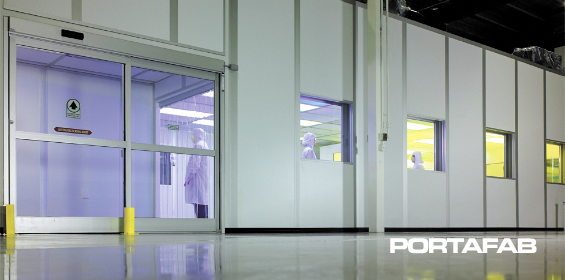

The 3″ thick system is the perfect solution when a free-standing cleanroom envelope with a plenum cap is required and the design criteria do not allow the cleanroom to tie into an existing structure where the ceiling can be supported.
The system’s load-bearing roof provides support of mechanical equipment while its height capabilities of up to 18-feet tall make it the ideal choice for applications where extended ceiling heights are demanded due to tall equipment.

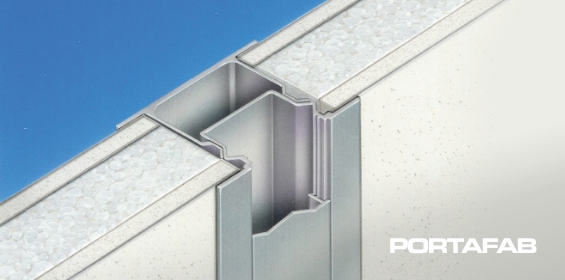

3″ thick stud system has load-bearing capabilities and can create cleanrooms in heights up to 18′ tall.
Panel surfaces can include vinyl, high pressure laminates (HPL), fiberglass reinforced plastic (FRP), poly-vinyl chloride (PVC), aluminum, and steel. Aluminum and steel can be finished with a variety of paint including baked conductive and non-conductive epoxy, polyester, and acrylic.
Panel cores include aluminum honeycomb, paper honeycomb, polystyrene, gypsum and isocyanurate and others based on project requirements.
