$1,118.51

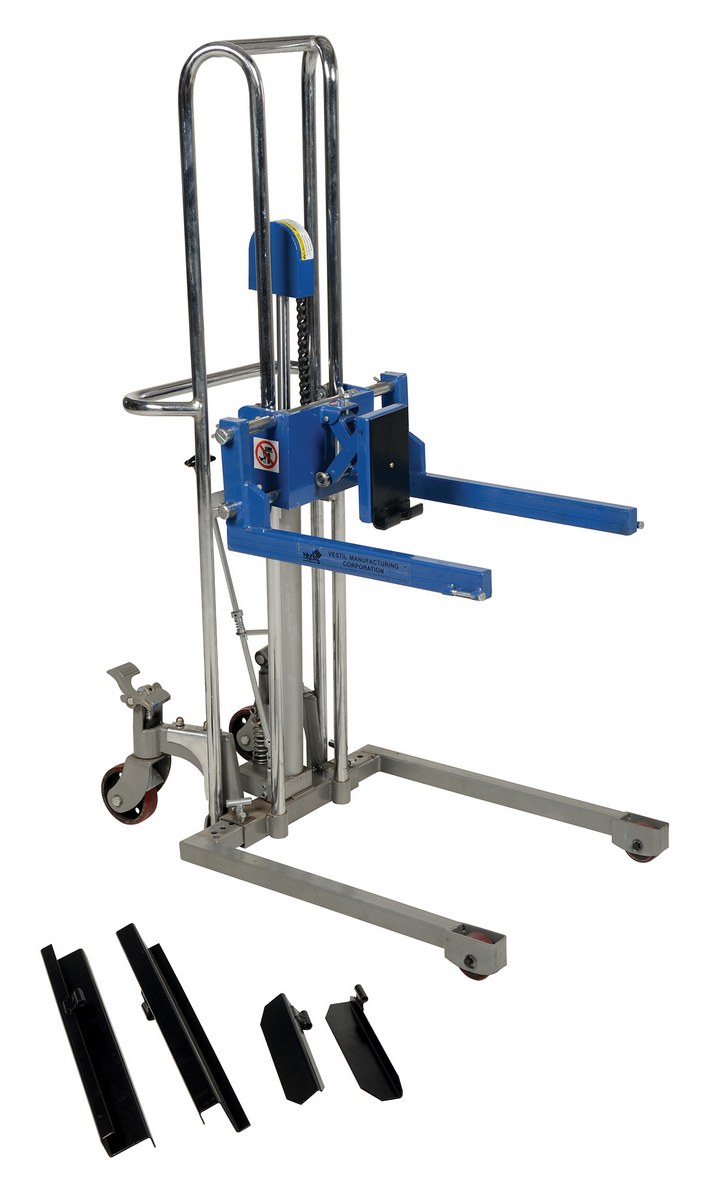

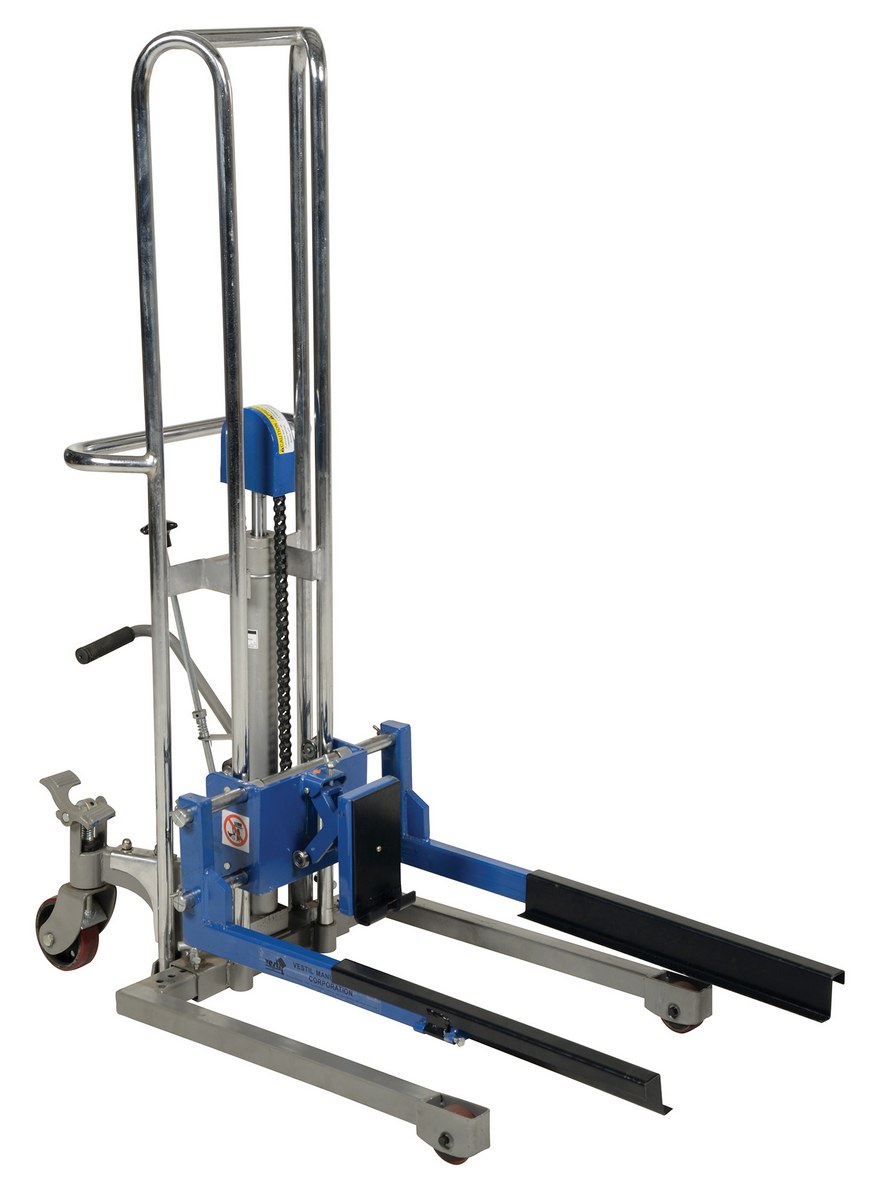

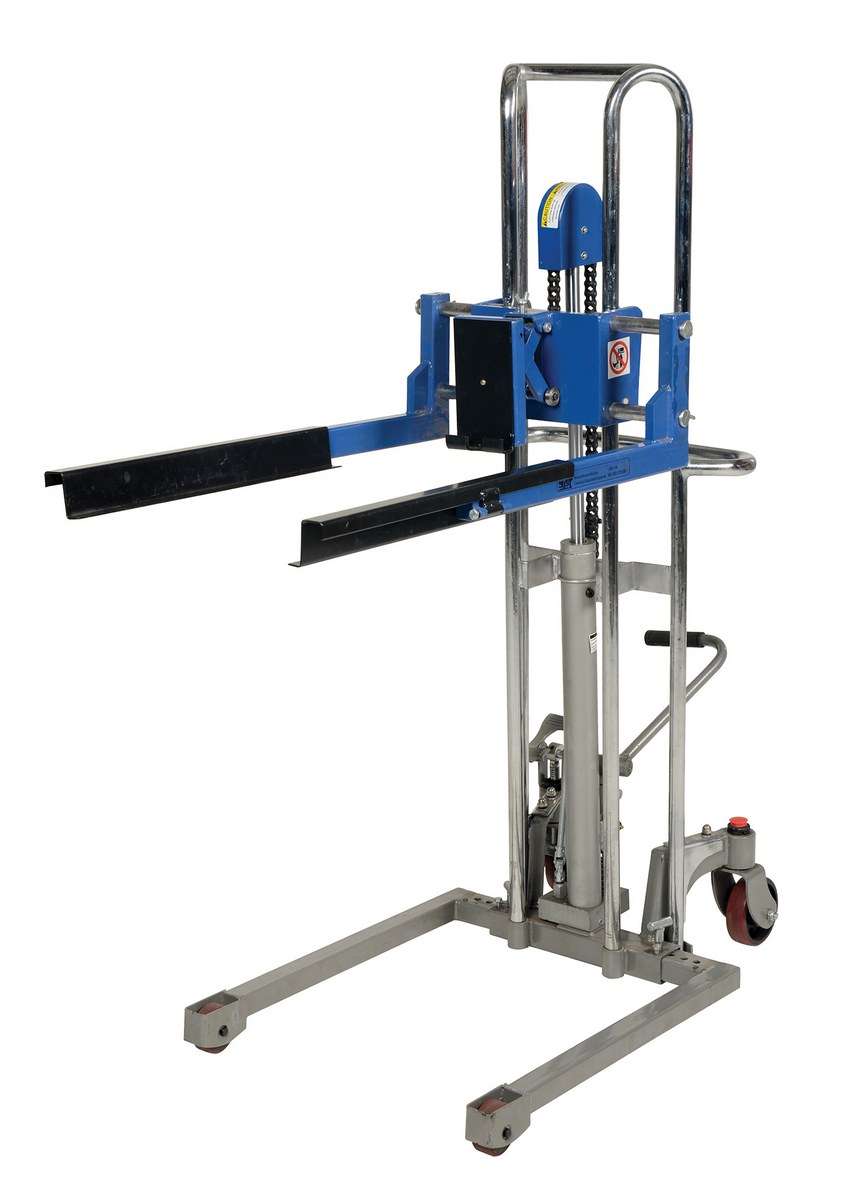

Adjustable Box Stacker

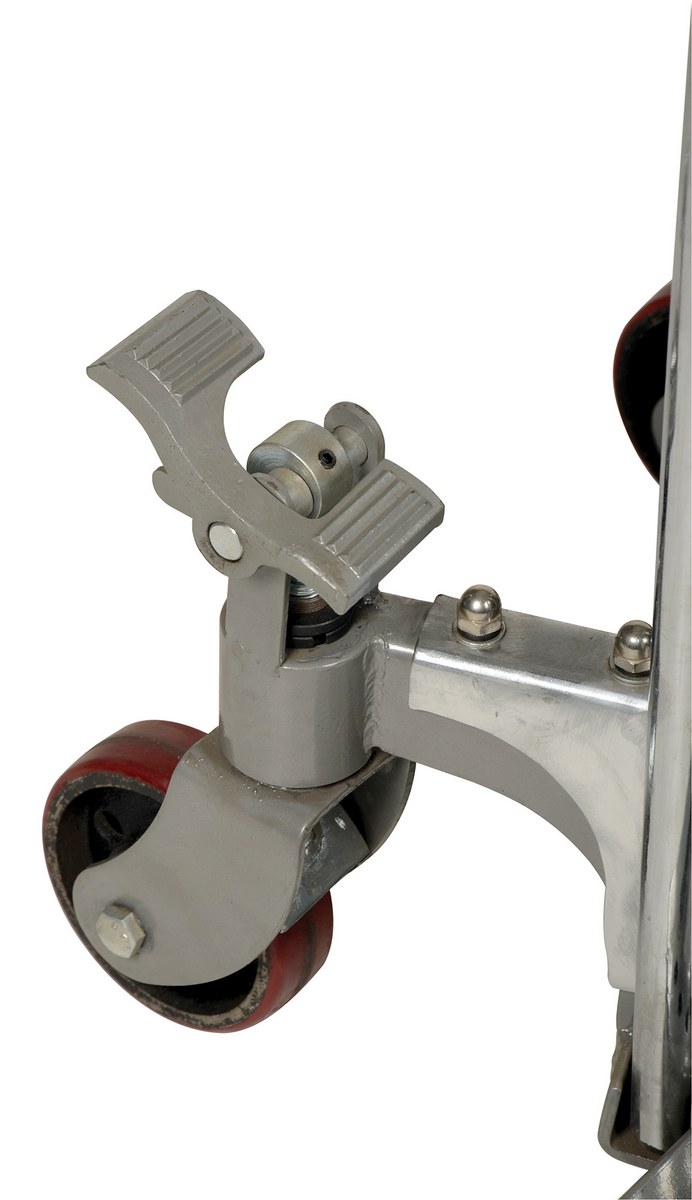

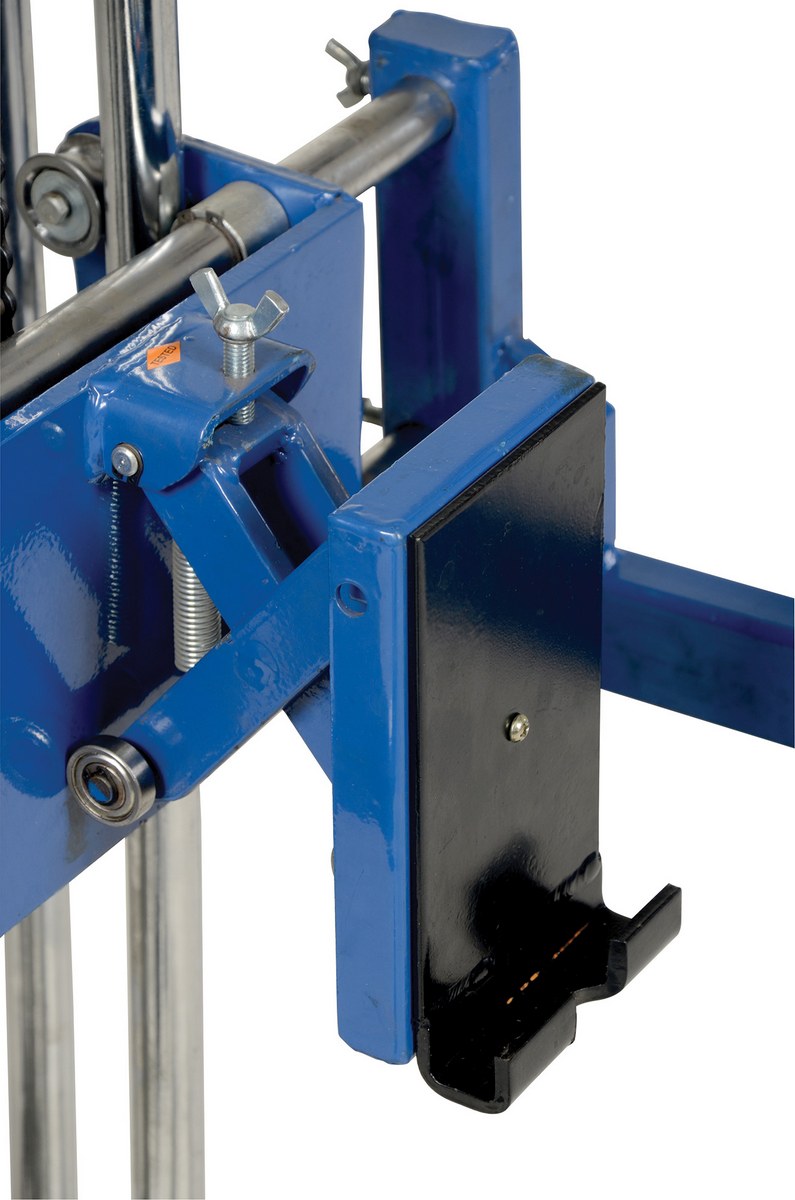

Transport, stack and lift plastic containers to raised heights up to 42-1/2 inches with the rugged Adjustable Box Stackers . The unit has a capacity of 380 pounds. The lift is raised by a foot pump and lowered by a lowering lever located near the driving handle. The model is compact and light. Both fork width and box clamps are adjustable to fit different sizes of plastic containers; these box clamps are rubber coated to protect your plastic containers.
| Uniform Capacity (lb.) | 380 |
|---|---|
| Lowered Height (in.) | 2-3/4 |
| Lowered Height (in.) | 2-3/4 |
| Raised Height (in.) | 42-1/2 |
| Fork Length (in.) | 19-1/2 |
| Min. Fork Width (in.) | 11-1/2 |
| Max. Fork Width (in.) | 18-1/2 |
| Min. Leg Width I.D. (in.) | 15-3/8 |
| Maximum Leg Width I.D. (in.) | 21-1/8 |
| Front Caster Width (in.) | 1-1/2 |
| Rear Caster Width (in.) | 1 |
| Assembled Weight | 156 |
| Total Ship Weight | 246 |
| Package 1 Size | 41″W x 49″D x 72″H |
| Freight | LTL Palletized |
| Weight | 246 lbs |
|---|---|
| Dimensions | 49 × 41 × 72 in |
| Uniform Capacity (lb.) | 380 |
