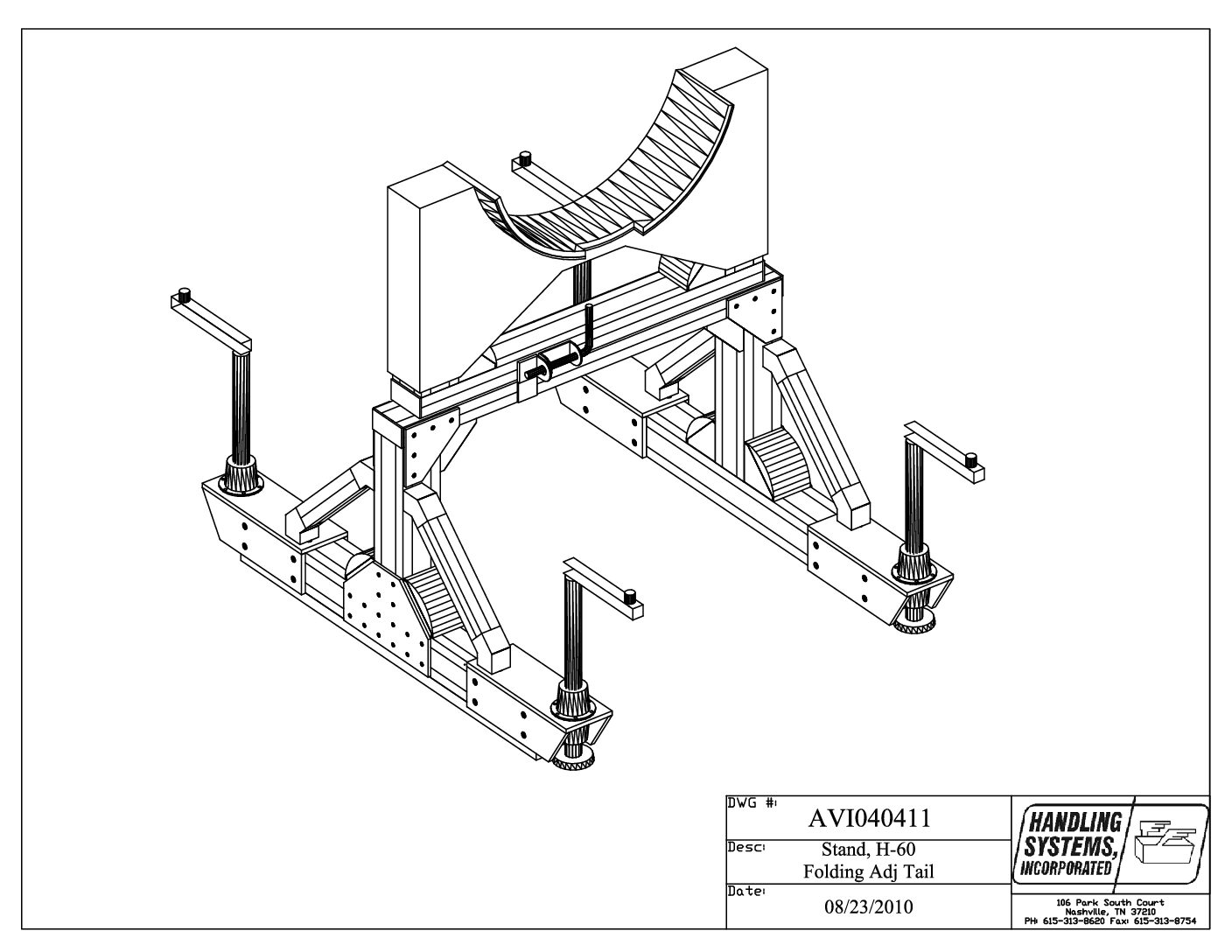

Tail Stand HH-60
Designed to cradle the Tail section of HH-60 at station 605 during tear down.
Overall Dimensions: 36.7” W x 44.9” L x 38.9”H (nominal)
Frame Construction: Bosch Rexroth aluminum extrusion
Capacity: 20,000 lbs
Support Saddle: Welded aluminum plate with jack clearance cutout
Covered with 1/2” rubber pad
Curved to support aircraft at STA 605
Hinged with spring loaded lock to facilitate placcement under aircraft
Height Adjustment: Approximately 6” using Four (4) screw leveling jacks
Skid Pads: 1” thick UHMW plastic
Design Features: High capacity/weight ratio
Shipped fully assembled
