$3,839.56

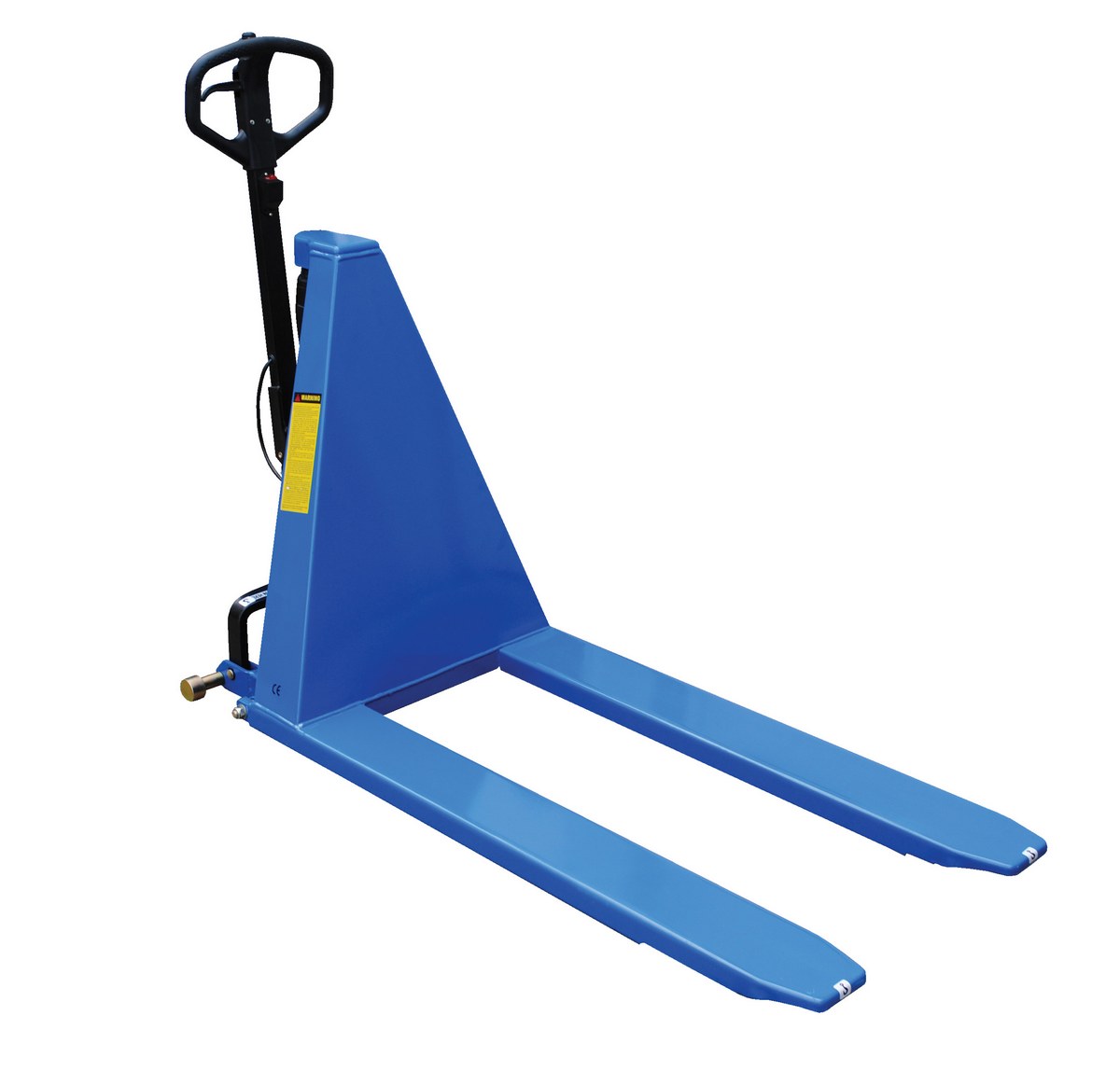

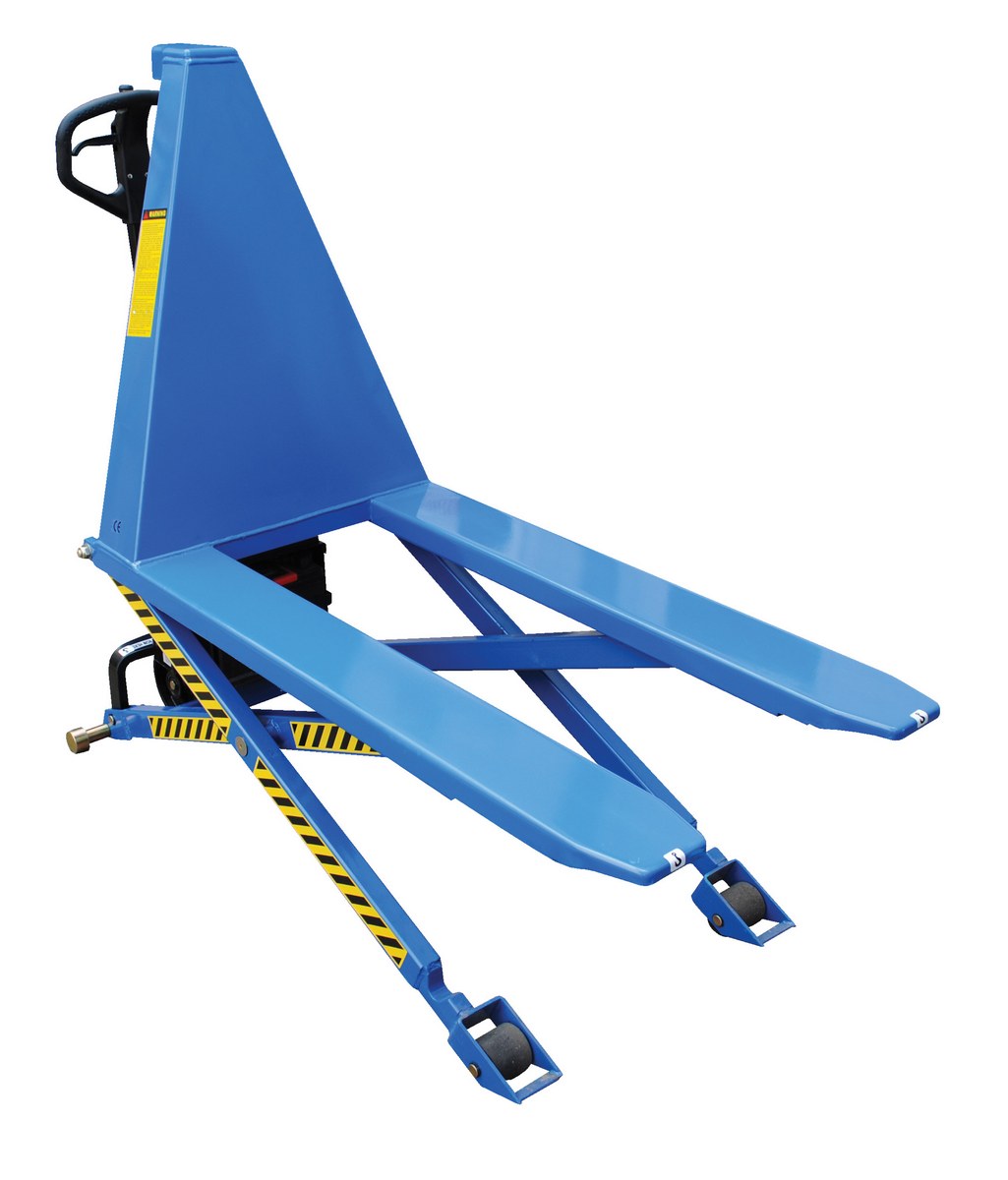

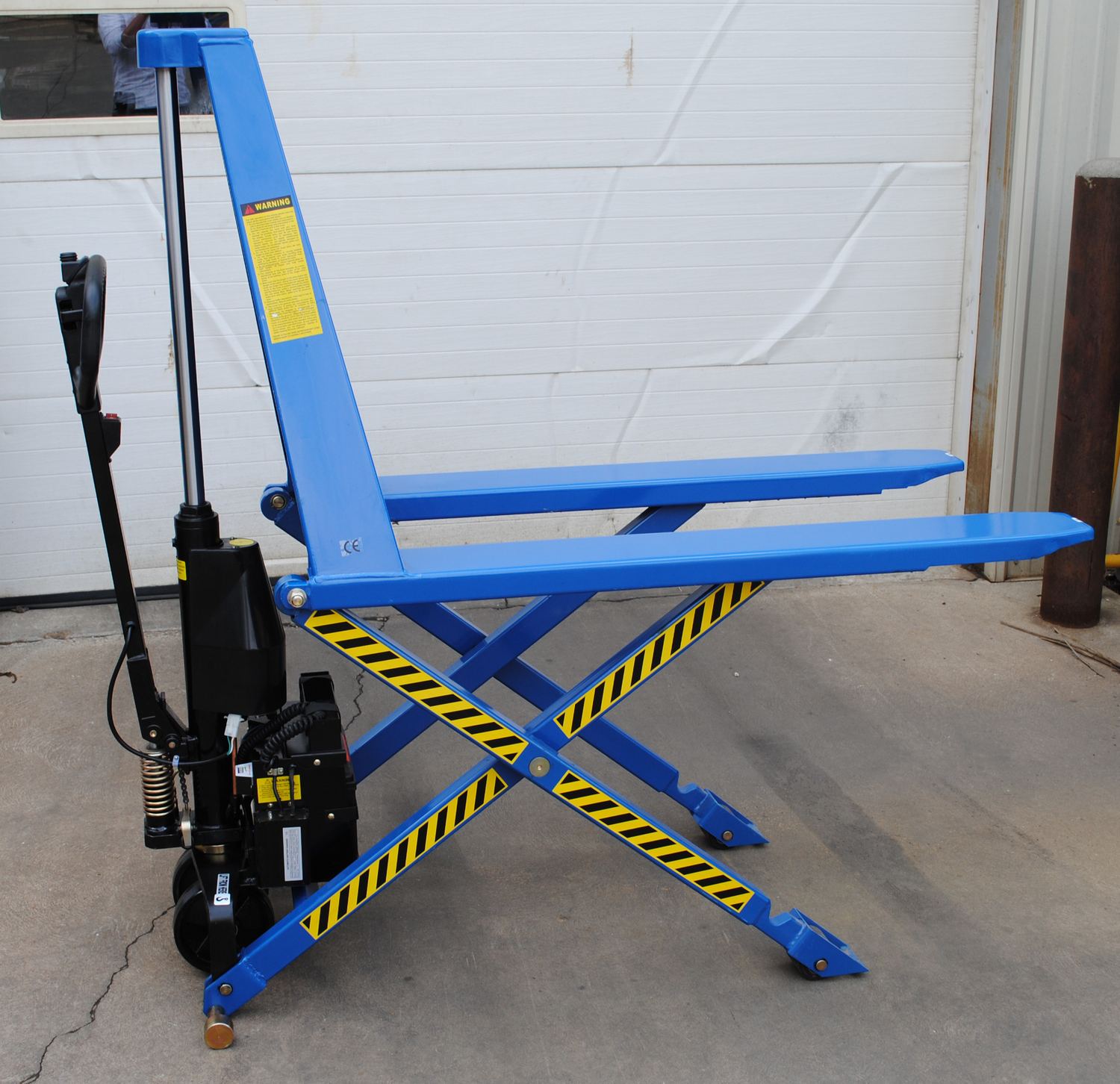

Dual Power Tote Lifter

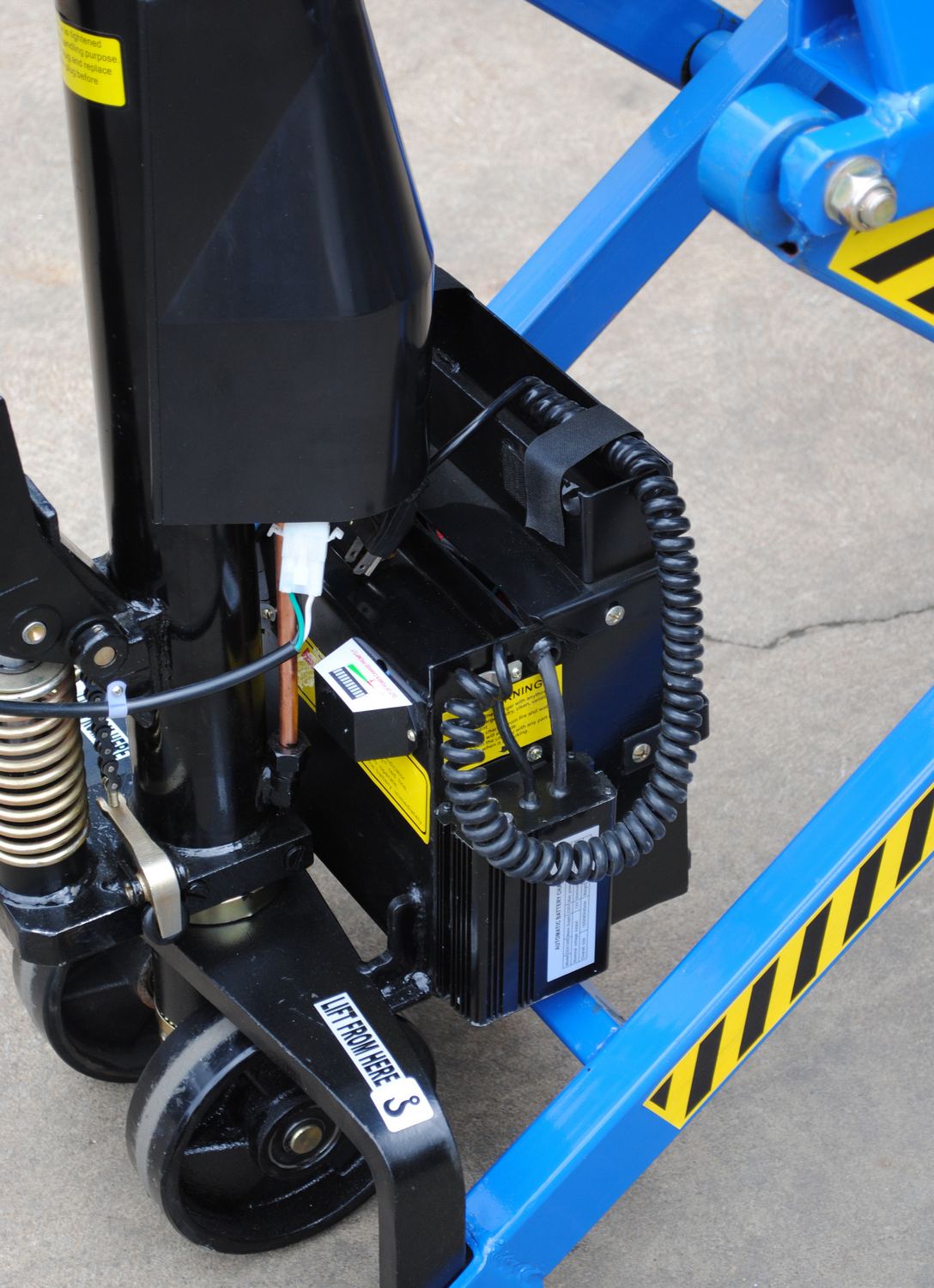

Designed to lift open bottom skids, boxes, and baskets. Lifter is DC powered with rocker switch to raise or lower. This DC powered unit includes an on-board battery charger. The side stabilizers lock lift in place when load is raised to 15-3/4″. Ideal for maintenance and commercial applications. This unit can be used as manual hand pump lift or electric powered lift. Ideal when power is not available. High quality hydraulic pump and DC lift system. Compact design and strong steel profile construction. Powered with one (1) 12V battery. Integral battery charger, battery level gauge, and adjustable lowering speed. Single stage cylinder, no risk of leakage and sudden dropping of 2nd stage cylinder. The compact structure with battery and power unit positioned between body and lifting cylinder resulting in a low center of gravity and excellent maneuverability. Ergonomic design handle for simple and comfortable operation.
| Uniform Capacity (lb.) | 2,200 |
|---|---|
| Dual Operation | Hand Pump/12 Volt DC Power |
| Side Stabilizer Locks at Raised Height (in.) | 15-3/4 |
| Fork Width (in.) | 26-3/4 |
| Fork Length (in.) | 47 |
| Fork Height (in.) | 2 |
| Single Fork Width (in.) | 6-1/2 |
| Lowered Height (in.) | 3-11/32 |
| Raised Height (in.) | 31 |
| Front Roller Wheel Width (in.) | 3 |
| Back Wheel Width (in.) | 2 |
| Handle Length (in.) | 30 |
| Handle Height (in.) | 50-1/2 |
| Handle Width (in.) | 14 |
| Overall Maximum Height (in.) | 64-1/4 |
| Assembled Weight | 328 |
| Total Ship Weight | 428 |
| Package 1 Size | 48″W x 75″D x 59″H |
| Freight | LTL Palletized |
| Weight | 428 lbs |
|---|---|
| Dimensions | 75 × 48 × 59 in |
| Uniform Capacity (lb.) | 2, 200 |
