Price range: $6,734.16 through $9,605.02
Electric Hydraulic Box Dumpers for Industrial Container and Bulk Material Handling

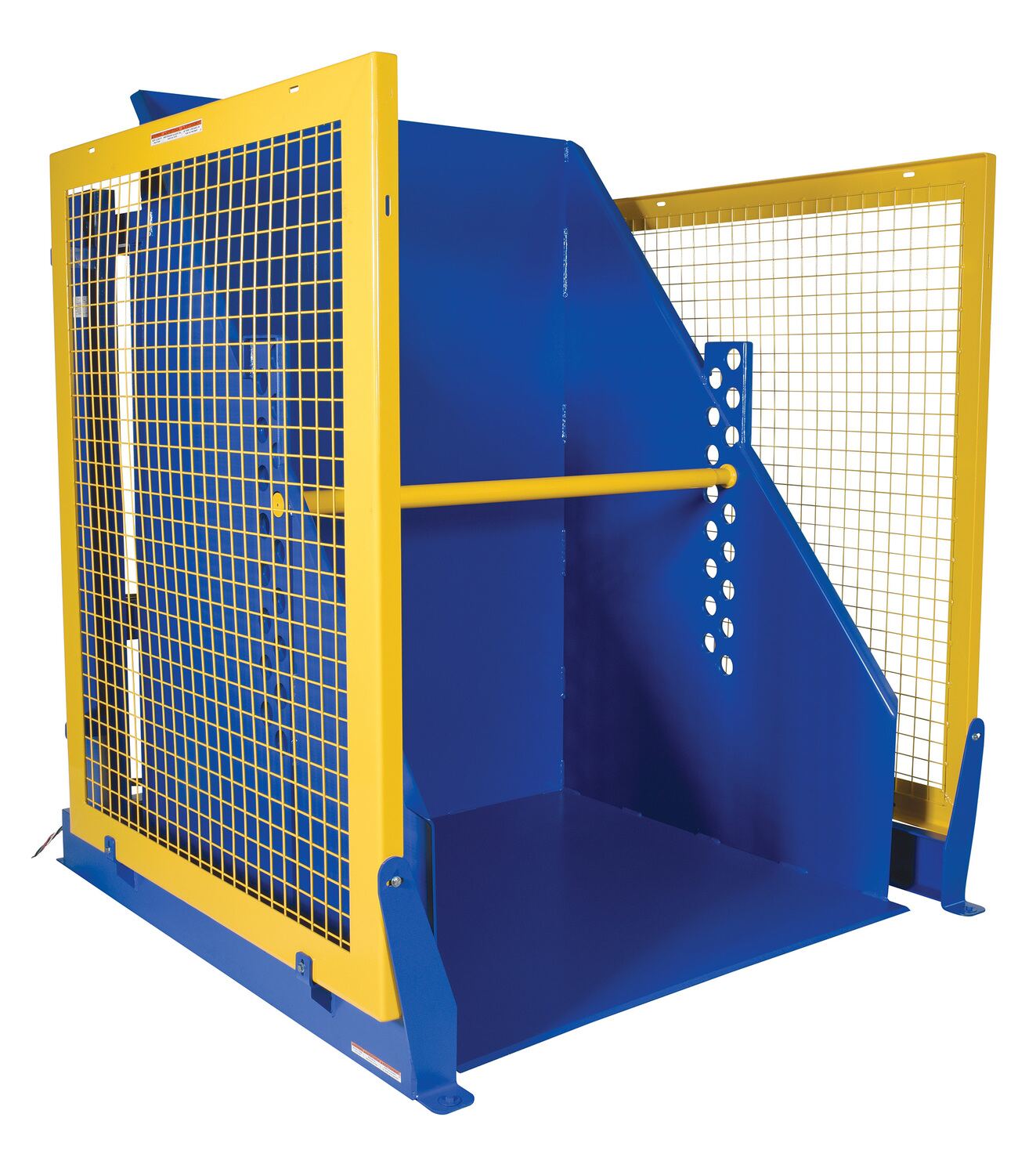

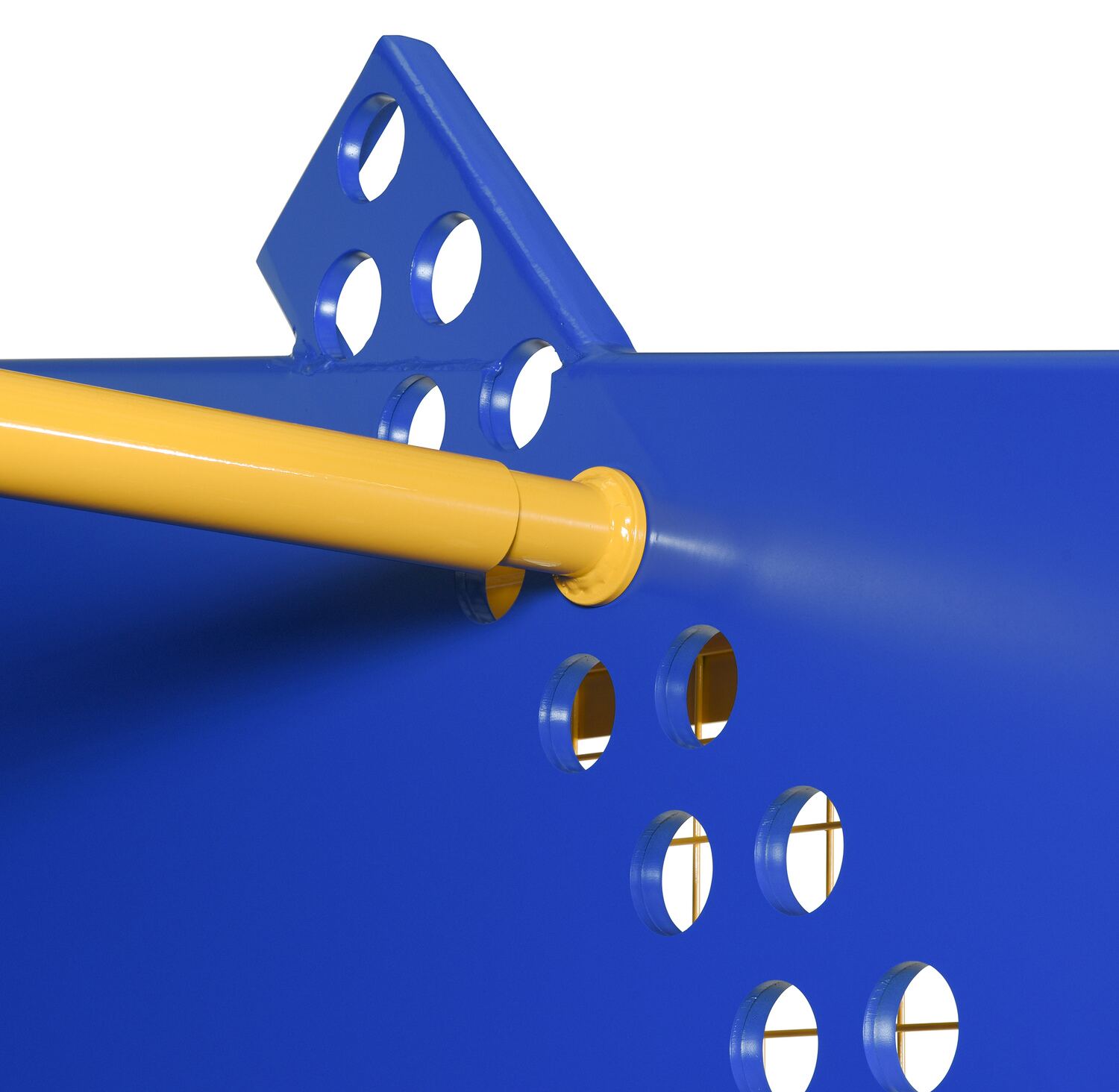

Electric hydraulic box dumpers provide safe, controlled dumping of boxes, crates, bins, and bulk containers in manufacturing, distribution, recycling, and processing environments. Designed to improve material handling efficiency while reducing manual labor, these industrial dumpers feature powered hydraulic operation with adjustable hold-down bars to accommodate a wide range of container sizes and load heights. Low-profile loading access allows easy loading and unloading with pallet trucks.

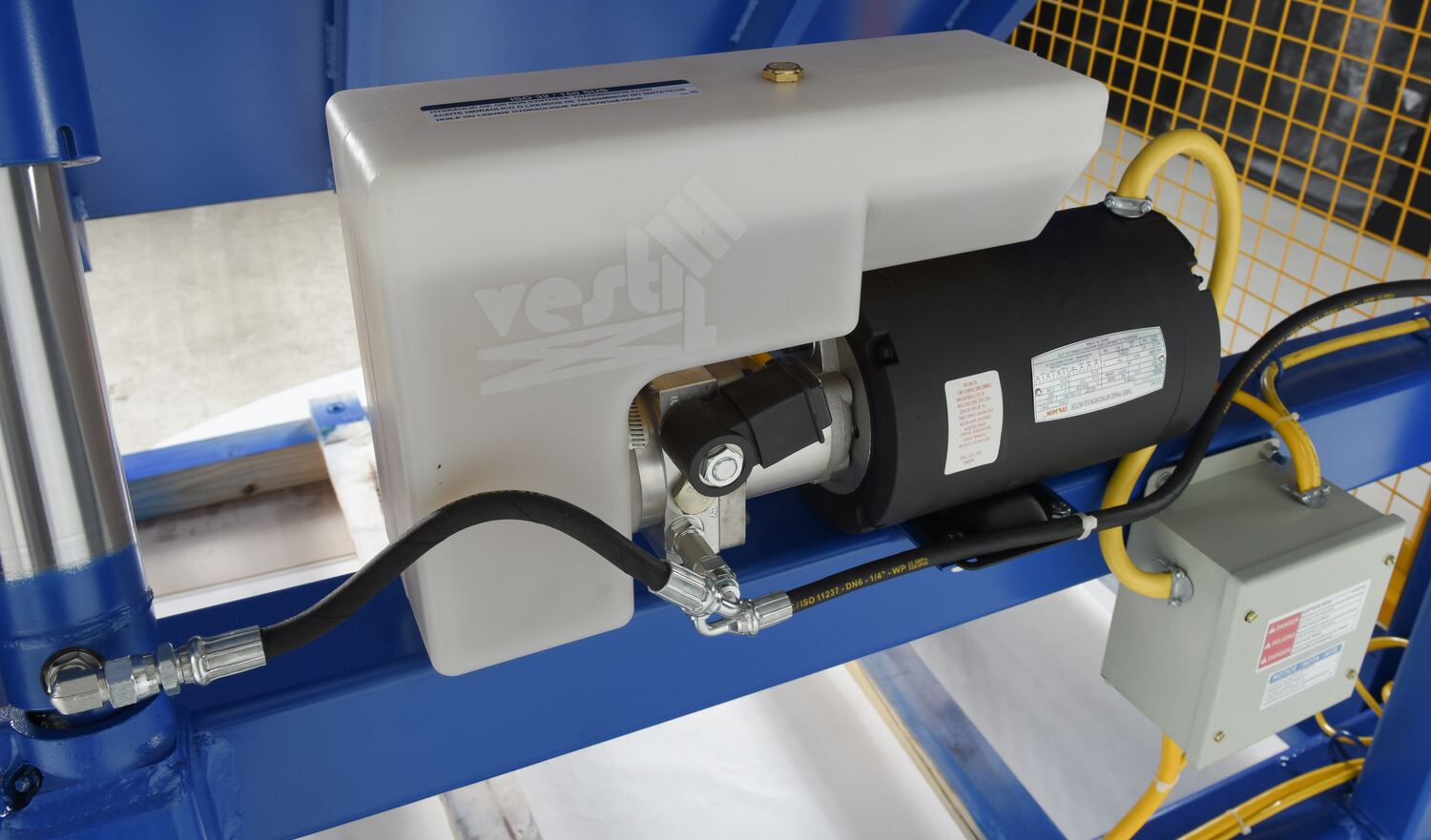

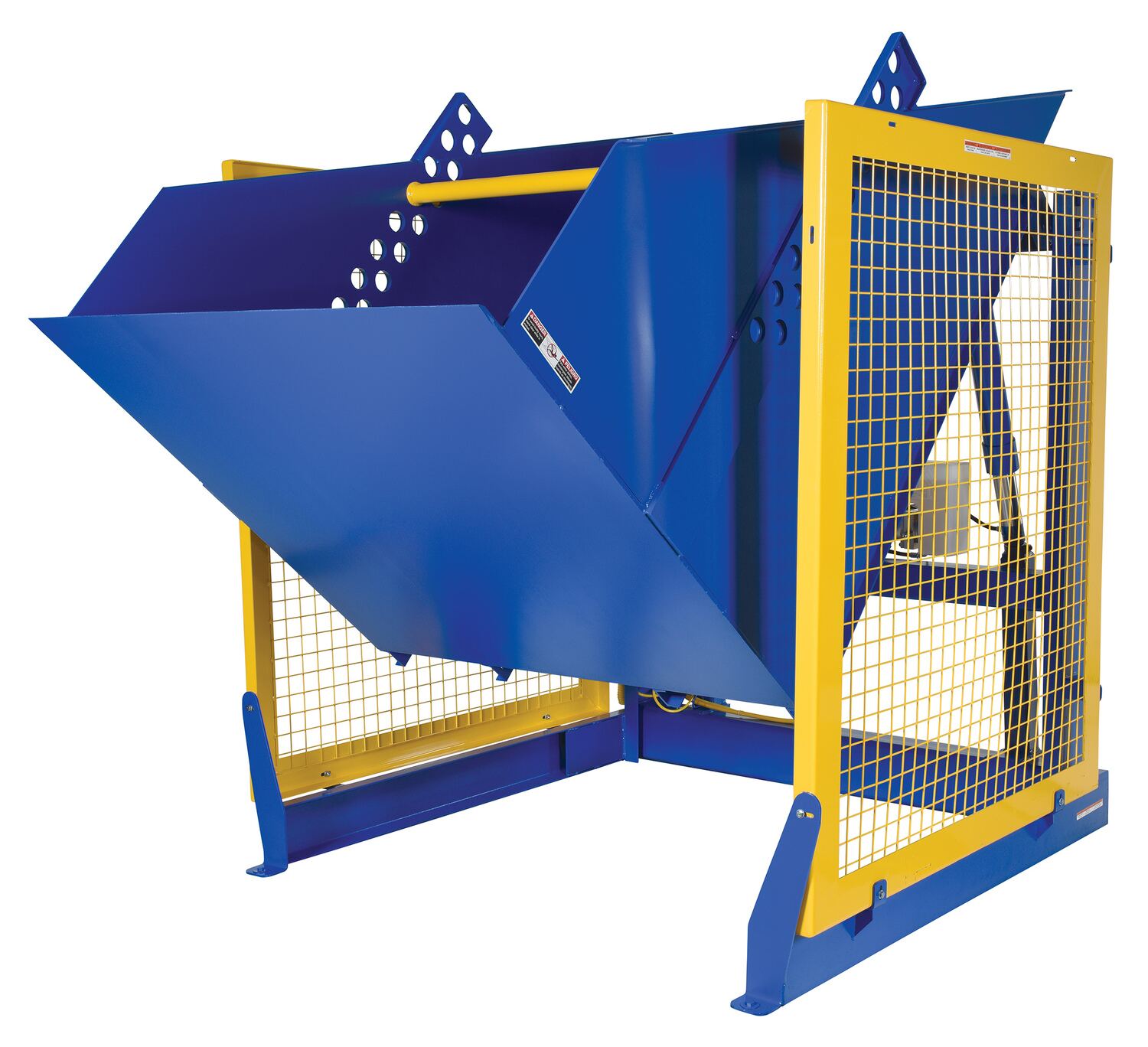

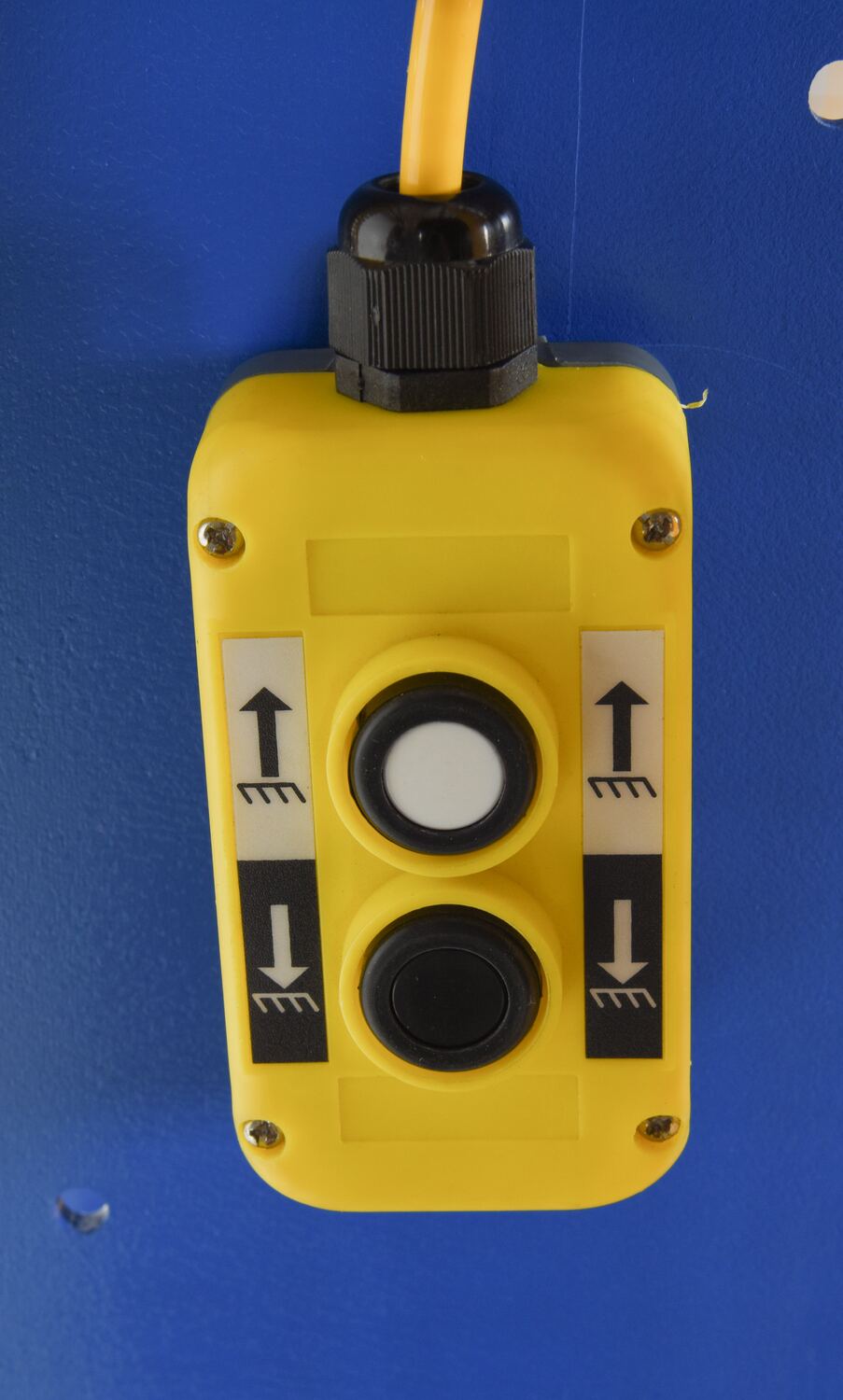

Built with heavy-duty welded steel construction, these hydraulic container dumpers are engineered for demanding industrial applications. Powered rotation up to 135 degrees delivers an efficient 45-degree dump angle for controlled material discharge. Operators can stop the dumper at any point during the cycle for improved precision and safety. Protective mesh side screens, fused 24-volt controls, pressure relief systems, and hydraulic velocity fuses help enhance operator protection and equipment reliability. Variable voltage options and industrial-grade hydraulic components support long service life and dependable daily performance.
Ideal for warehouses, food processing plants, manufacturing facilities, agricultural operations, and recycling centers, these electric box dumpers simplify transferring bulk materials into hoppers, conveyors, processing equipment, or workstations while improving productivity and reducing strain on personnel.
Available in multiple dump heights and load capacities, these hydraulic dumpers can be configured for a variety of material handling requirements. Optional safety gates, light curtain systems, foot controls, radio remote controls, and extended-duty power units provide added flexibility for high-volume or safety-sensitive applications. Popular mid-height models offer an excellent balance of reach, capacity, and operational efficiency.
| Weight | 2227 lbs |
|---|---|
| Dimensions | 72 × 72 × 84 in |
| Model | HBD-2-36, HBD-2-48, HBD-2-60, HBD-4-36, HBD-4-48, HBD-4-60, HBD-6-36, HBD-6-48, HBD-6-60 |
