$1,857.95

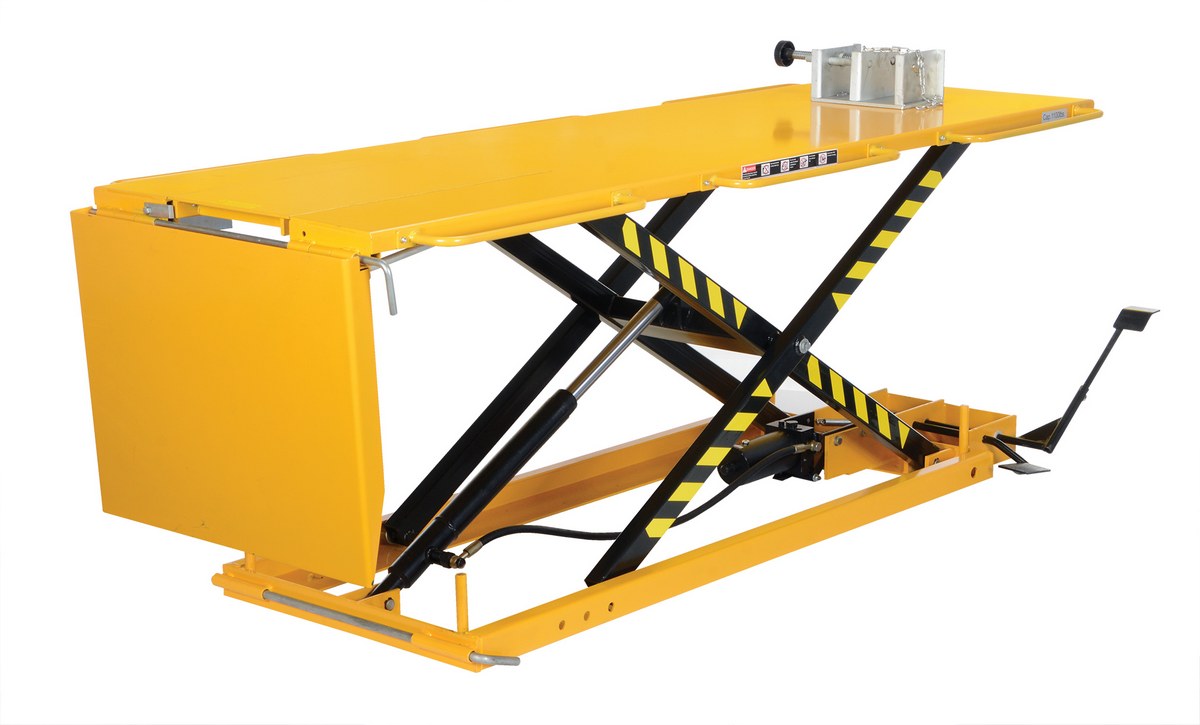

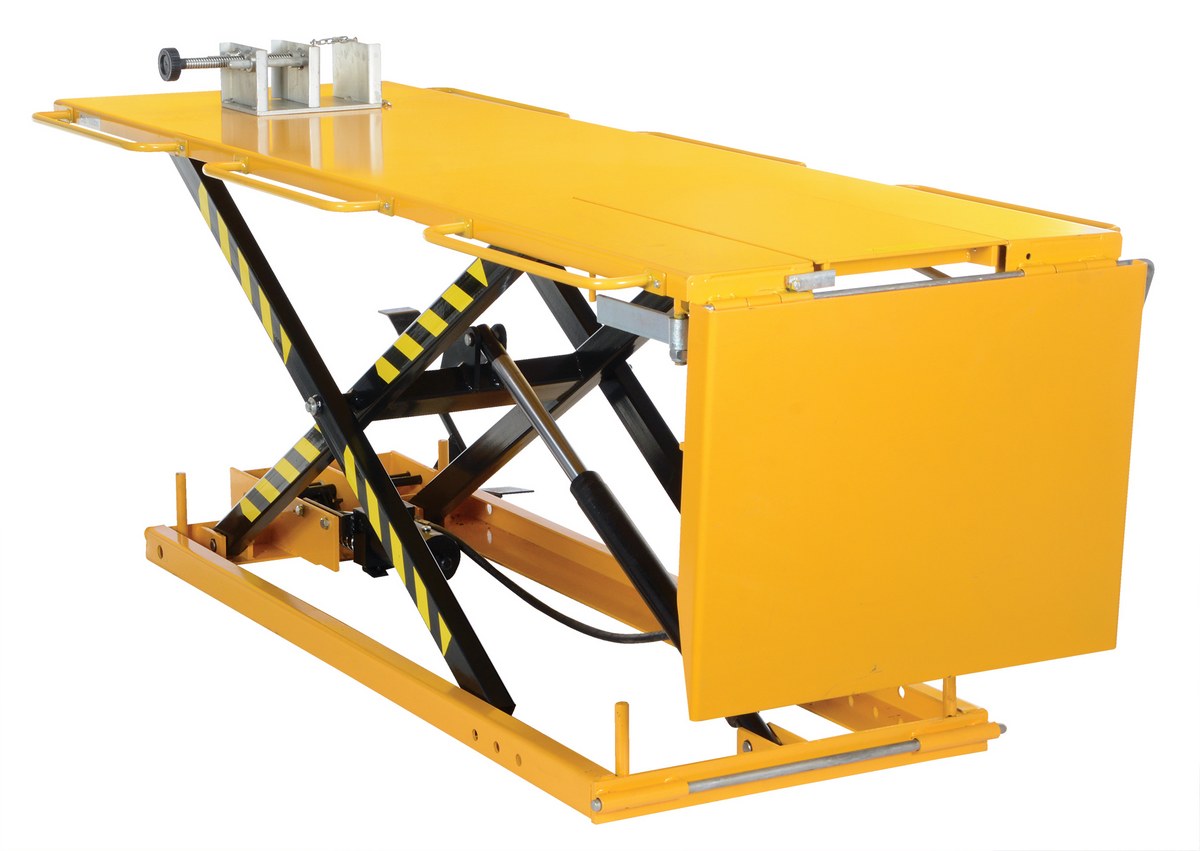

Manual Hydraulic Motorcycle Lift for Service, Repair, and Maintenance Work
Hydraulic motorcycle lifts provide a stable, elevated work platform for servicing, repairing, cleaning, and inspecting motorcycles in garages, repair shops, maintenance areas, and enthusiast workspaces. The manual foot pump design allows the lift to be used where electrical power is not available, making it practical for both casual riders and professional service environments.
The foot pump activated hydraulic system raises the platform from 7 inches to 32 inches, helping users position motorcycles at a more comfortable working height. This reduces the need to bend, kneel, or work from the floor during routine maintenance and repair tasks.

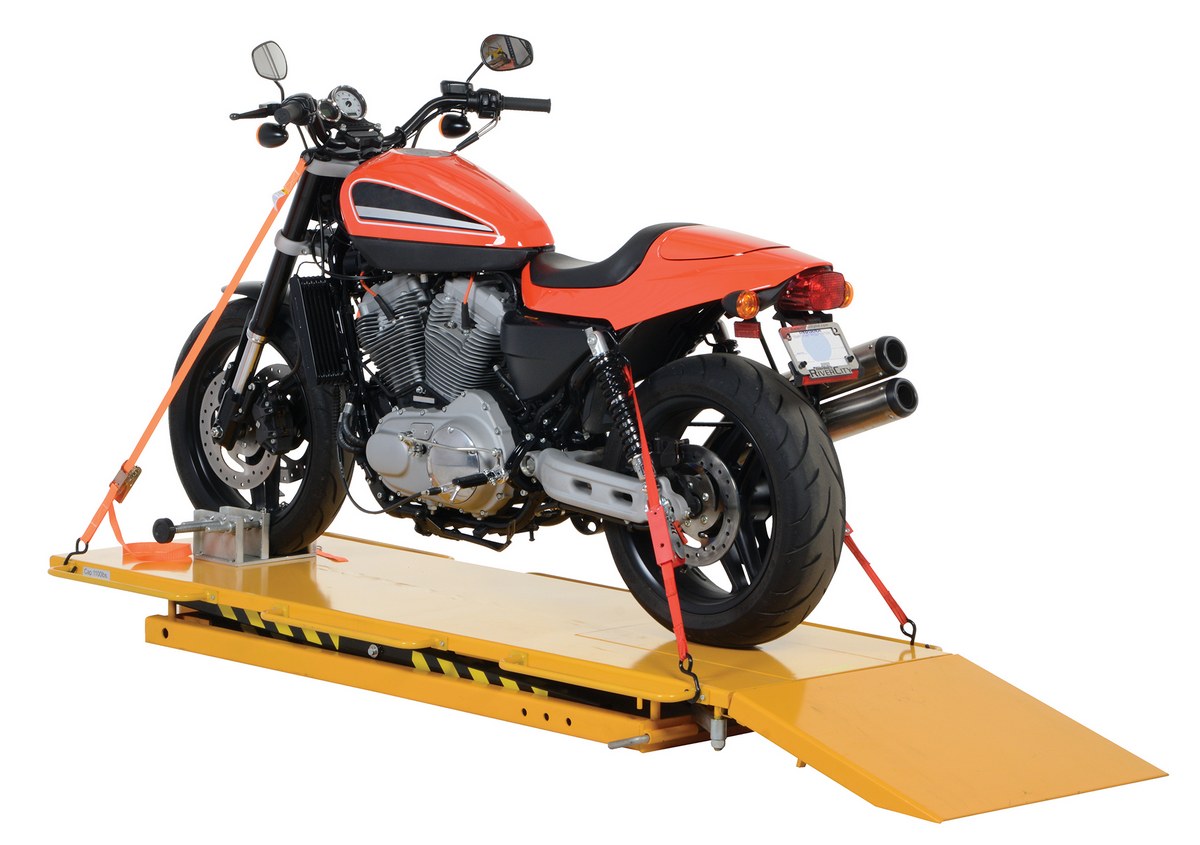

A front tire cradle helps hold wheels up to 6 inches wide, while the hinged ramp supports loading and unloading. The 35 inch x 108 inch overall platform provides ample surface area for handling motorcycles during service work.
This stationary lift supports 1,100 lb. capacity and includes a rugged base frame for stable positioning. A 7/32 inch thick top plate and durable yellow finish provide dependable performance for motorcycle shops, distributors, and end users needing a manual lift for efficient bike maintenance.
| Uniform Capacity (lb.) | 1,100 |
|---|---|
| Base Frame Width (in.) | 26-3/4 |
| Base Frame Width (in.) | 26-3/4 |
| Base Frame Length (in.) | 65 |
| Lowered Height (in.) | 7 |
| Raised Height (in.) | 32 |
| Hinged Ramp Width (in.) | 27-1/2 |
| Hinged Ramp Length (in.) | 21-1/2 |
| Front Tire Cradle Wheel Maximum Width (in.) | 6 |
| Assembled Weight | 641 |
| Total Ship Weight | 689 |
| Package 1 Size | 32″W x 92″D x 20″H |
| Freight | LTL Loose |
| Weight | 689 lbs |
|---|---|
| Dimensions | 92 × 32 × 20 in |
| Uniform Capacity (lb.) | 1, 100 |
