Hydraulic Post Tables

Hydraulic lift tables provide a stable, portable way to raise, lower, position, and move heavy materials in warehouses, machine shops, maintenance departments, assembly areas, and manufacturing facilities. Ideal for handling dies, castings, molds, machine parts, and work-in-process materials, these post-style lift tables help improve ergonomics by bringing loads to a more comfortable working height.

Stable Post-Style Lifting Design

Telescoping corner posts help stabilize and support the load during lifting and lowering. Heavy-duty construction is suited for industrial work areas, while two rigid casters and two locking swivel casters with brakes provide controlled movement and secure positioning when the table is in use.

Manual, Auto Shift, and DC Operation

This family includes single-speed foot pump, two-speed foot pump, two-speed auto shift, linear actuated, and 12V DC powered models. DC powered units include a battery, on-board charger, and hand control on an 8 ft. coil cord for convenient powered raising and lowering.

Capacities, Platforms, and Configurations

Platform sizes range from compact 16 x 16 inch decks to larger 48 x 48 inch tables, with capacities from 200 lb. to 6,000 lb. Select models include 360 degree swivel platforms for turntable use, removable rubber platform covers, low profile service ranges, or partially stainless steel construction for added application flexibility. DC units include one (1) 12V battery to raise and lower the platform. They also include a battery, on-board charger, and a hand control on an 8 ft. coil cord. *PP stands for poly-on-poly casters. PS = poly-on-steel casters. PP = polypropylene casters. Model HT-02-1616A and HT-03-1616A includes a platform that swivels 360 degrees for use as a turntable. Model HT-02-1616A, HT-03-1616A and HT-05-1818A standard with a removable rubber platform cover. Partially Stainless Steel Post Tables feature a zinc plated pump assembly and leg posts while the platform, base frame, handle, casters rigs, and hardware are stainless steel. Patented ergonomic push handle makes pushing the unit safe and easy.

Hydraulic Post Tables

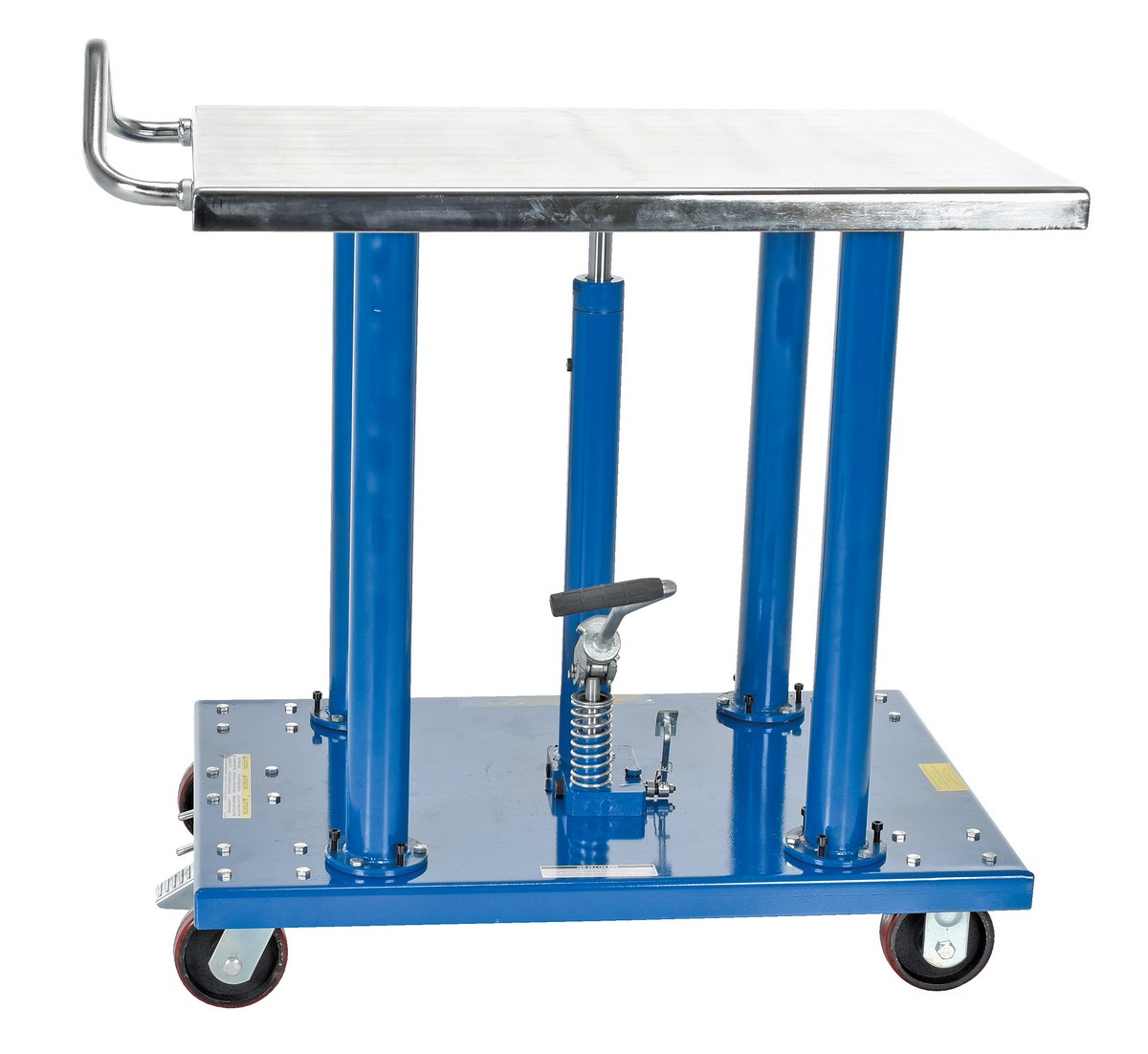

model: HT-20-2436A
