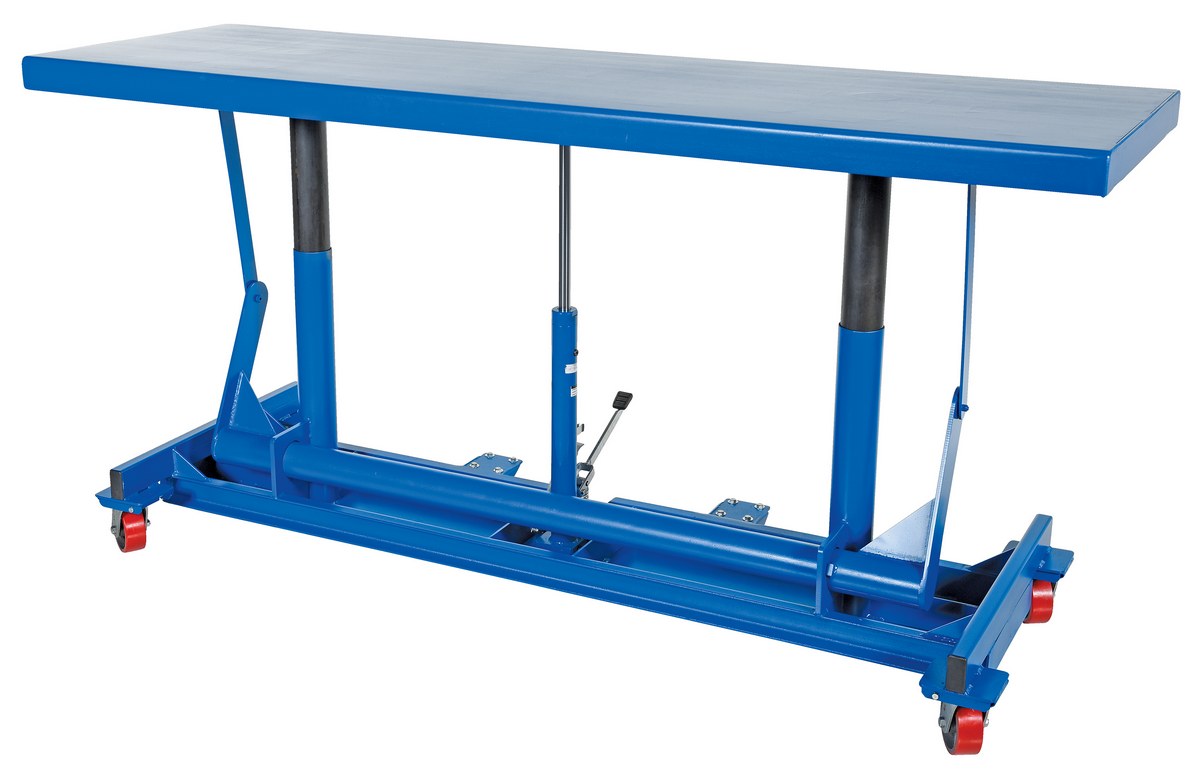

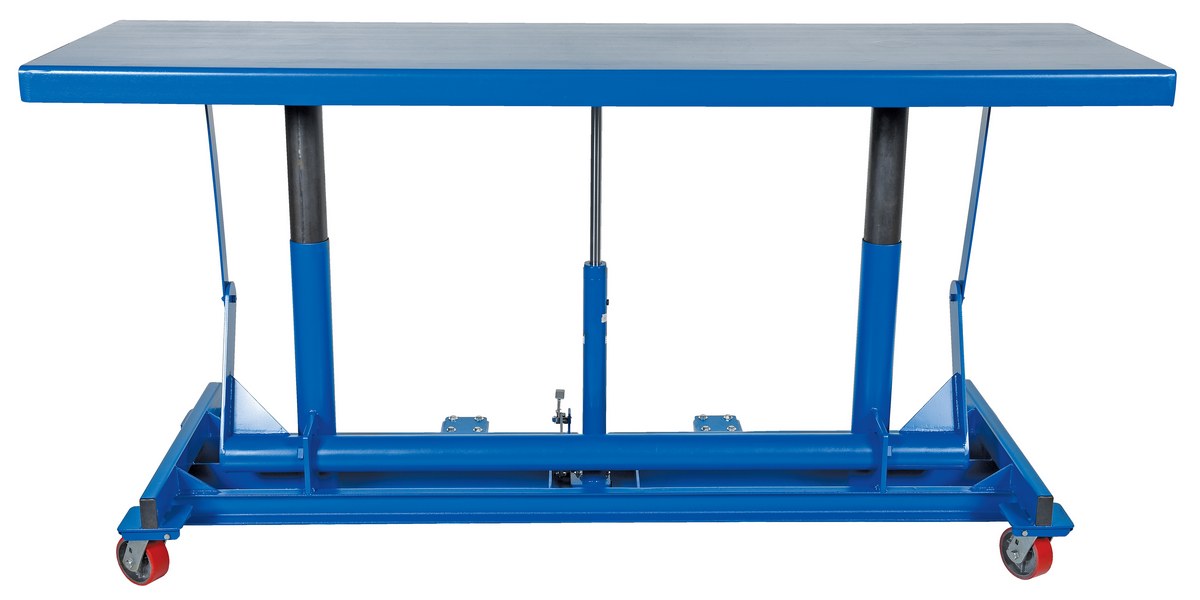

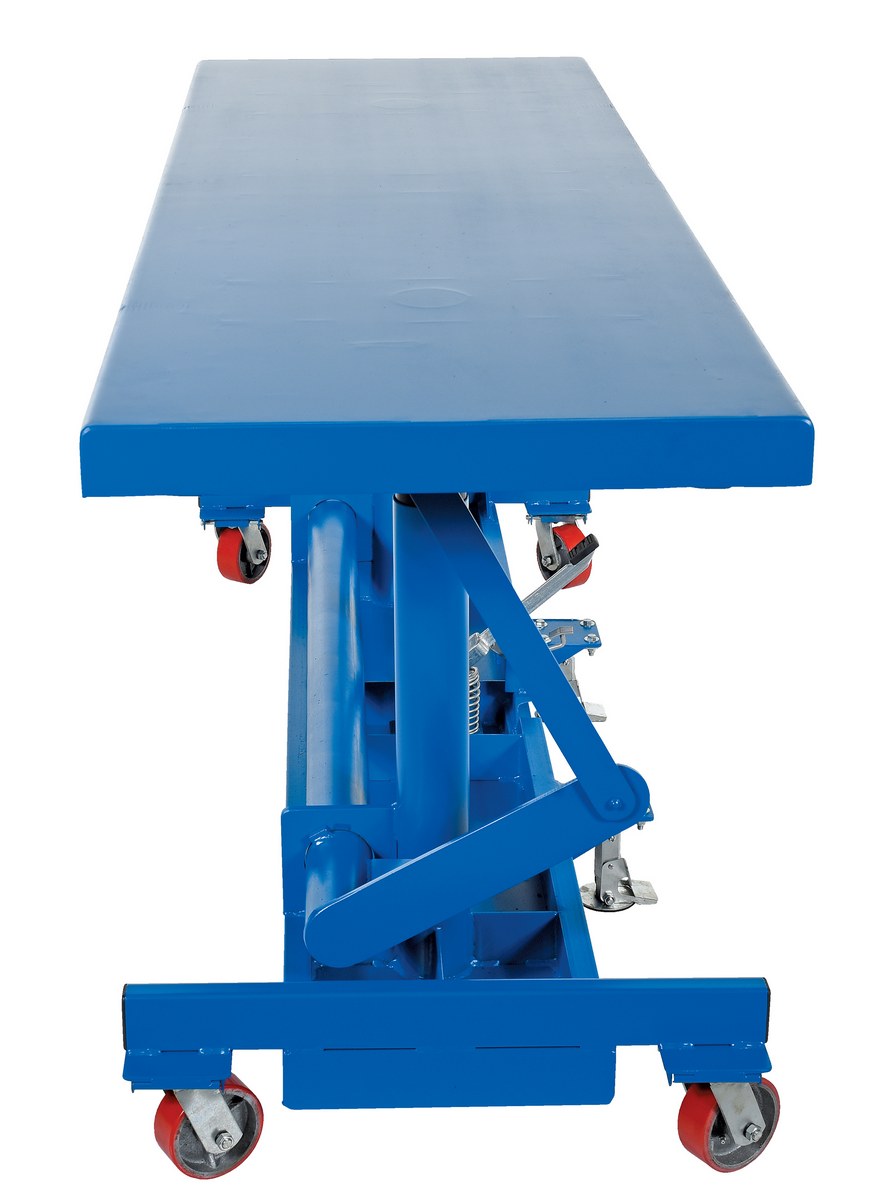

Long Deck Carts

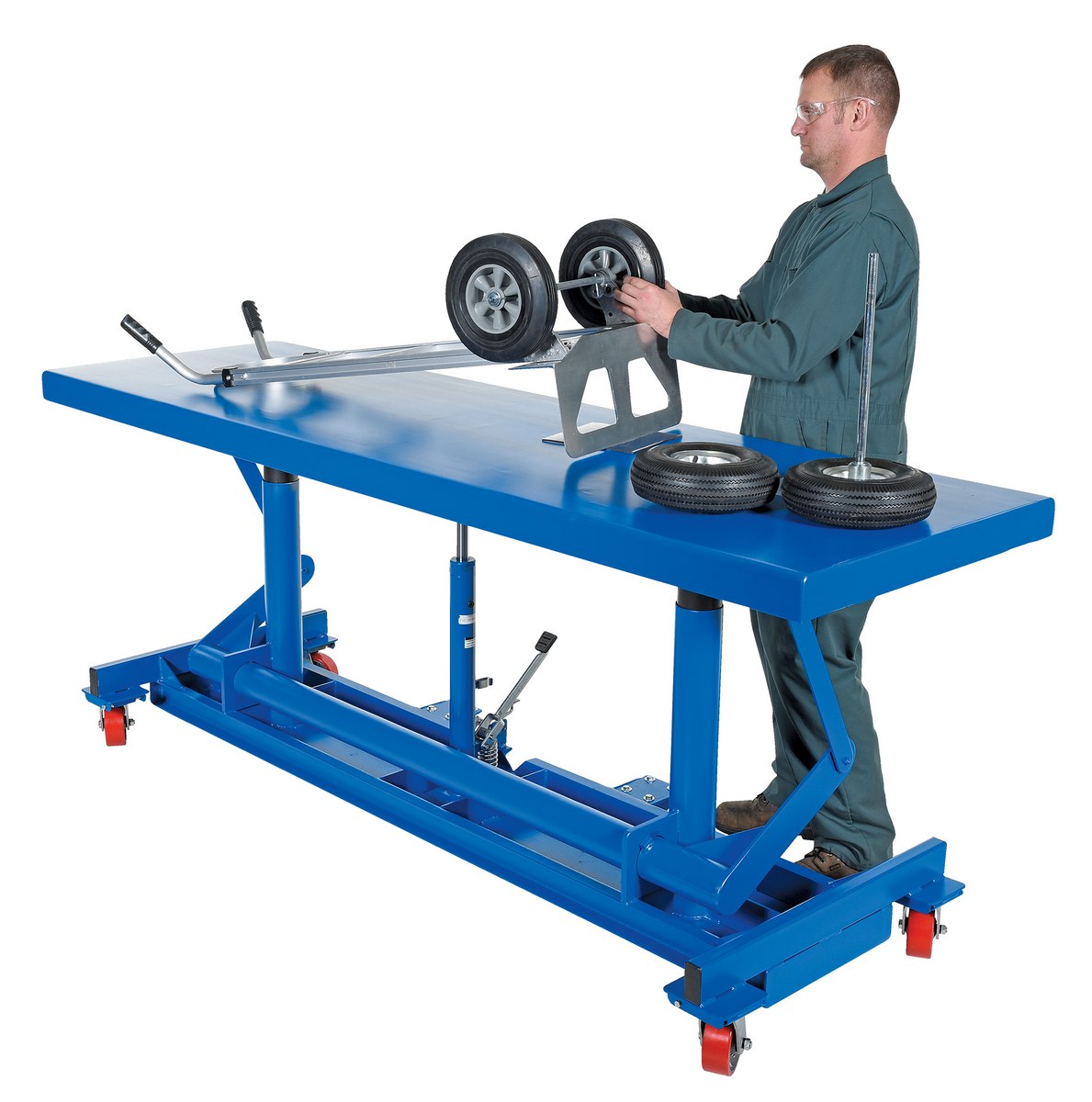

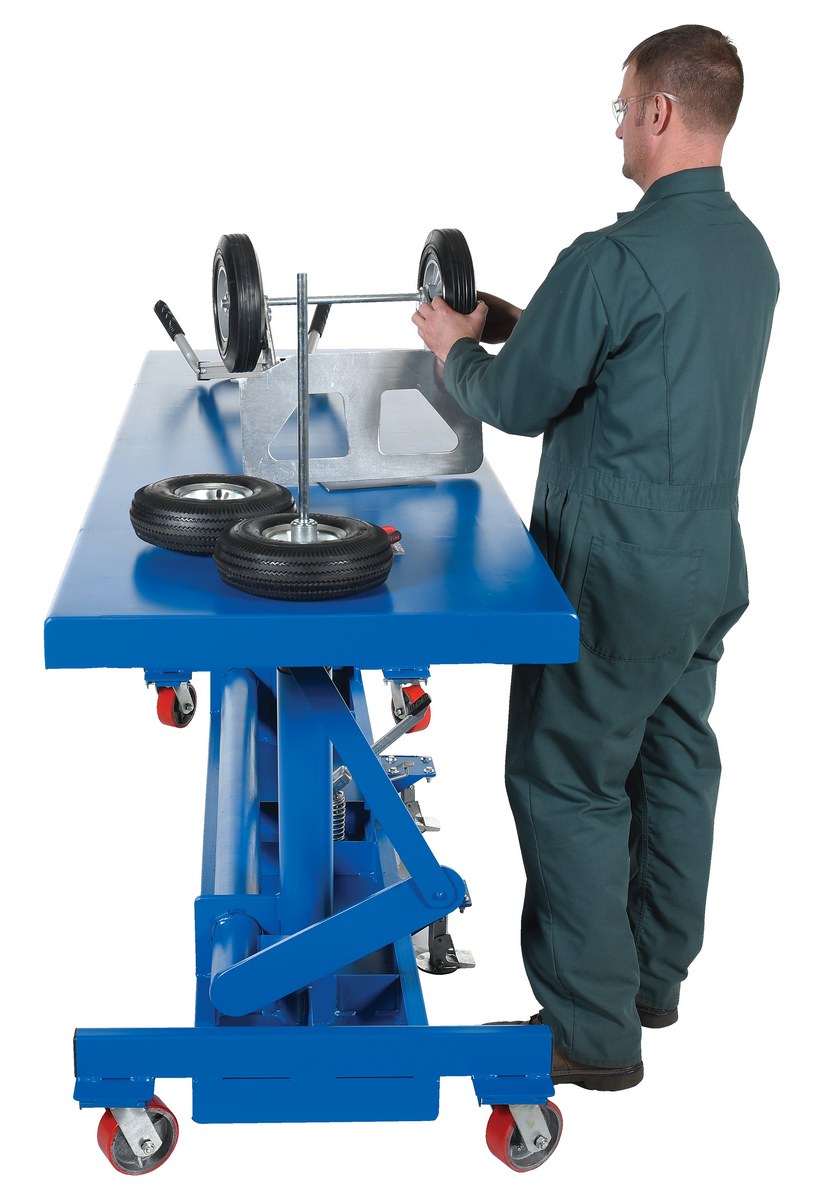

Long platform lift carts provide ergonomic material handling for sheet goods, strip stock, panels, long components, and other awkward loads that are difficult to move or position on standard carts. Designed for warehouses, fabrication shops, assembly areas, maintenance departments, and production lines, these carts help operators raise, lower, transport, and stage materials at a more efficient working height.

Manual Hydraulic Height Adjustment

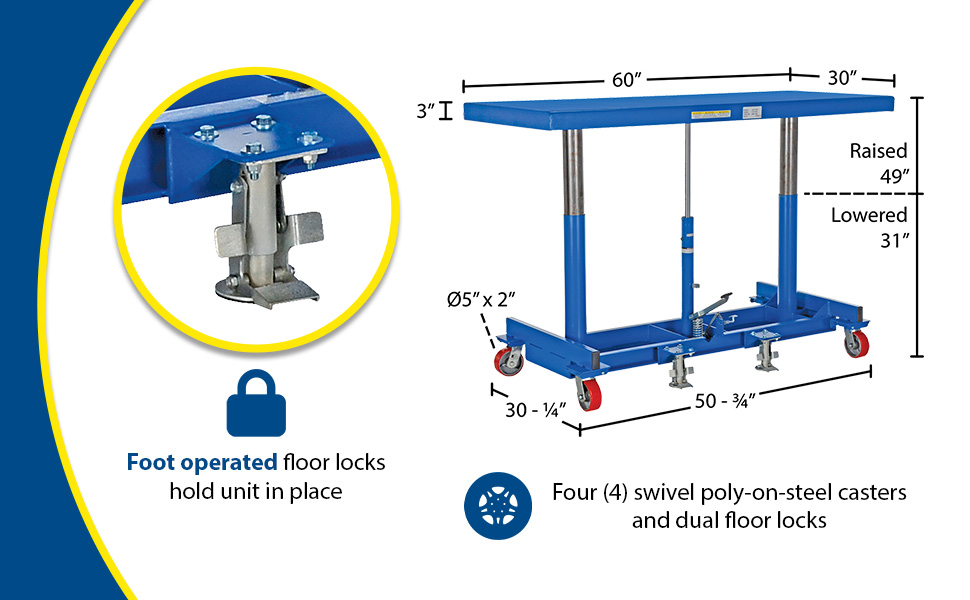

Standard models use a manual hydraulic foot pump to adjust the platform from a 31 inch lowered height to a 49 inch raised height. The 1/4 inch thick deck supports long material while the structural steel base helps distribute loads evenly during transport and positioning.

Platform Sizes and Capacities

This family includes 20 inch and 30 inch wide platforms with lengths from 60 inches to 120 inches. Models are available with 2,000 lb. or 4,000 lb. evenly distributed capacities, allowing users to match the cart to specific sheet handling, workstation feeding, and long-load transport requirements.

Mobility and Power Options

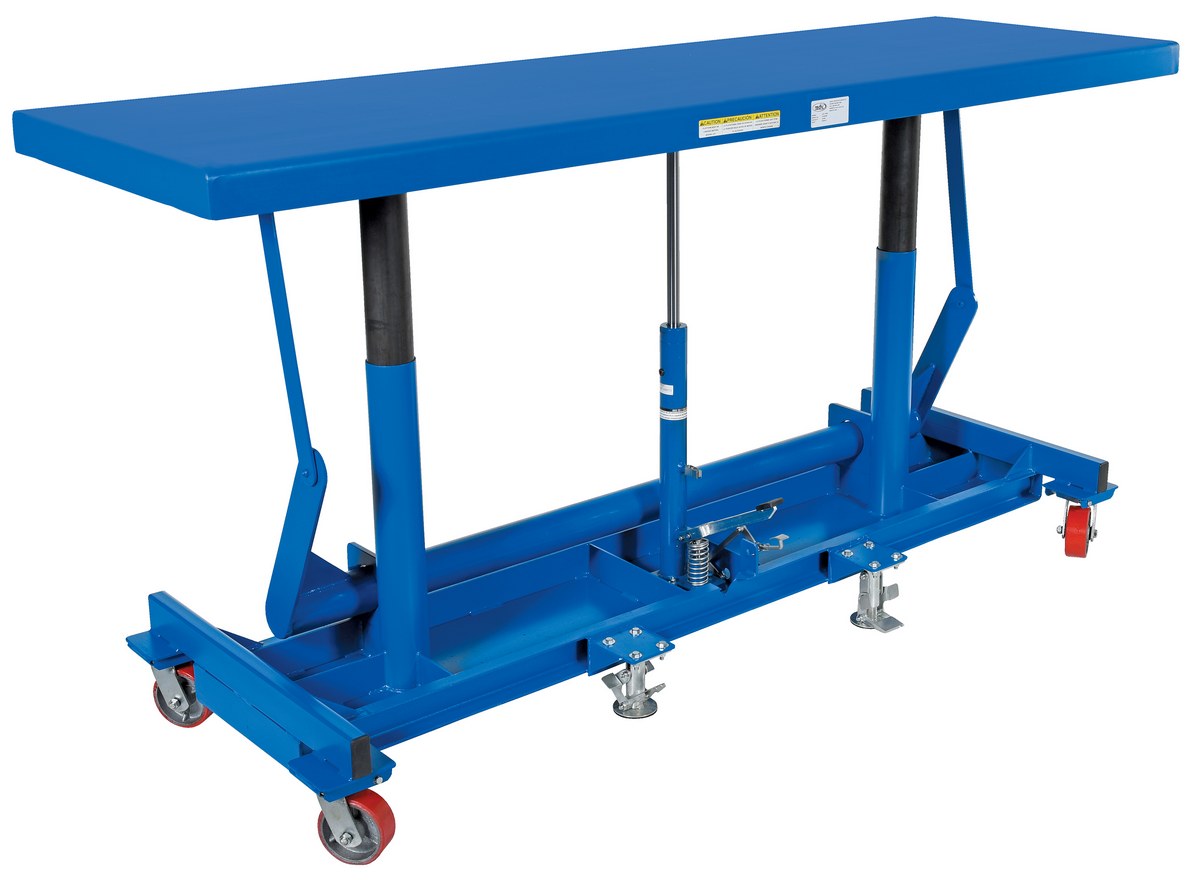

Four swivel 5 inch by 2 inch poly-on-steel casters allow smooth maneuvering, while dual floor locks help keep the cart in place during loading, unloading, and work positioning. Factory-installed power options include AC power, 12V DC battery power, reciprocating air/oil power with foot treadle control, and rotary air/oil power with muffler and hand control.

Long Deck Carts

model: LDLT-3096
