Narrow Scissor Lift Tables

Narrow electric hydraulic scissor lift tables provide ergonomic load positioning where standard-width lift tables may not fit. Designed for manufacturing facilities, warehouses, assembly areas, conveyor work cells, and production lines, these compact lift tables help raise materials to a better working height while conserving valuable floor space.

Compact Powered Lift Design

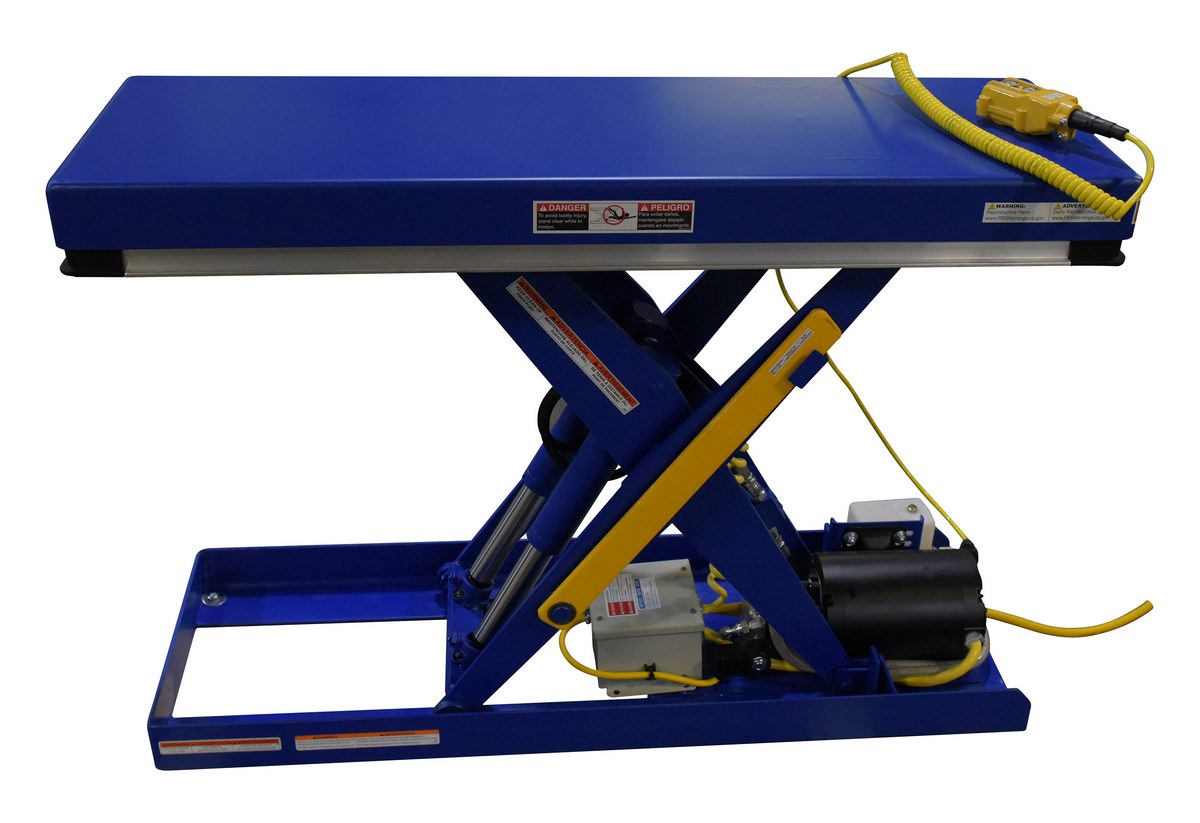

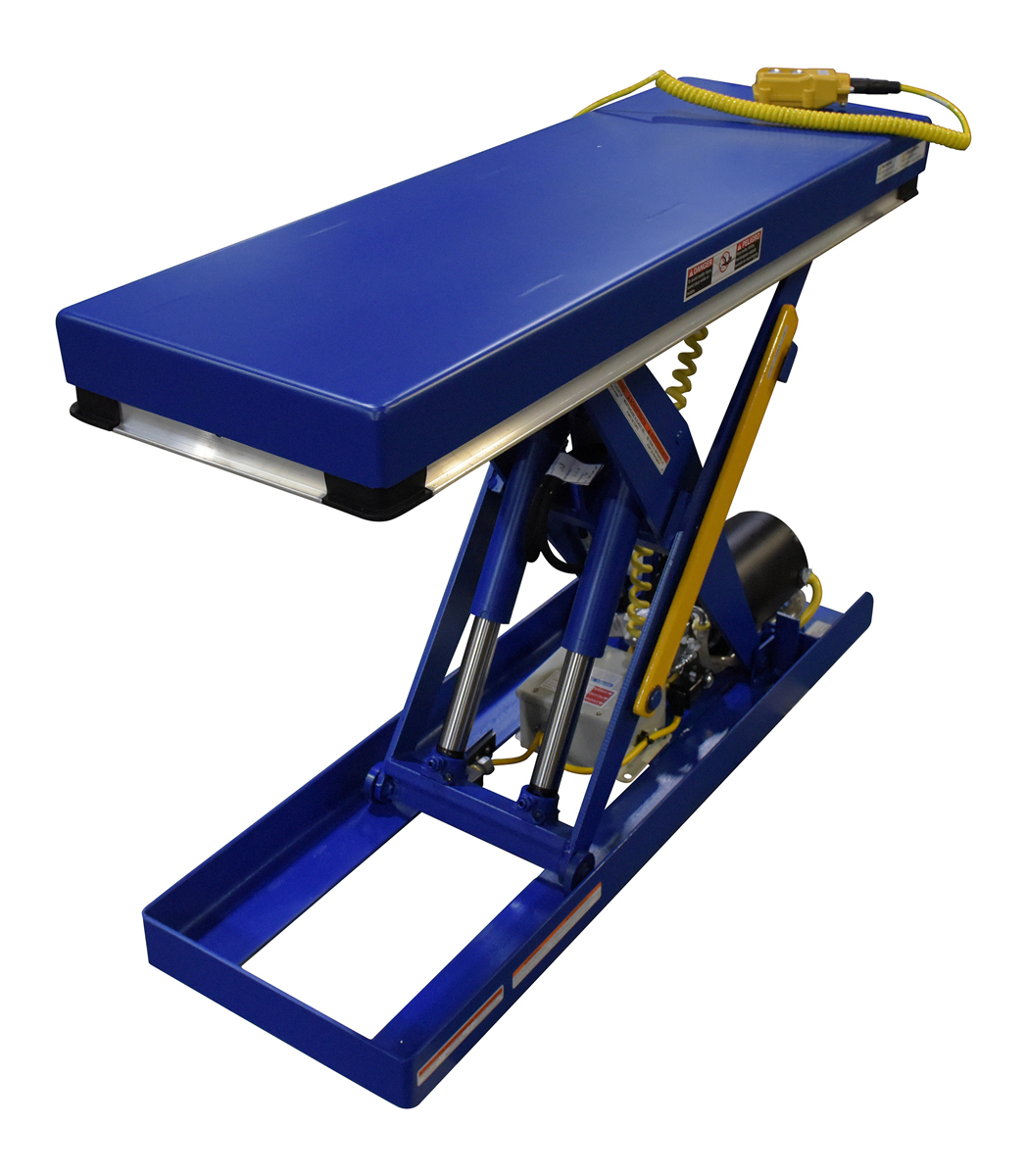

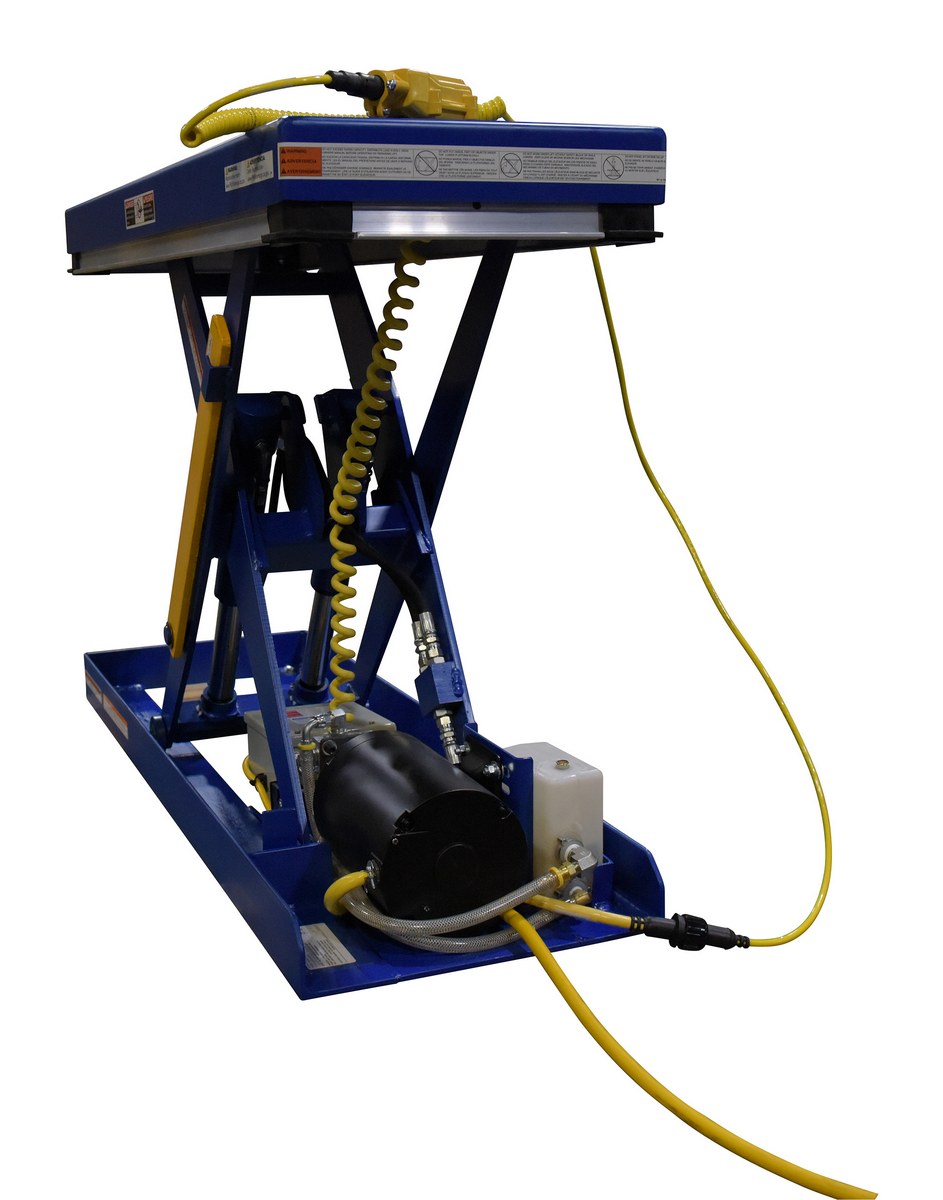

The narrow 16 inch by 48 inch platform is well suited for handling smaller loads, long parts, containers, fixtures, and work-in-process materials in tight aisles or restricted workstations. Electric hydraulic operation supports smooth raising and lowering, helping reduce manual lifting and improve productivity during repetitive handling tasks.

Built-In Safety Features

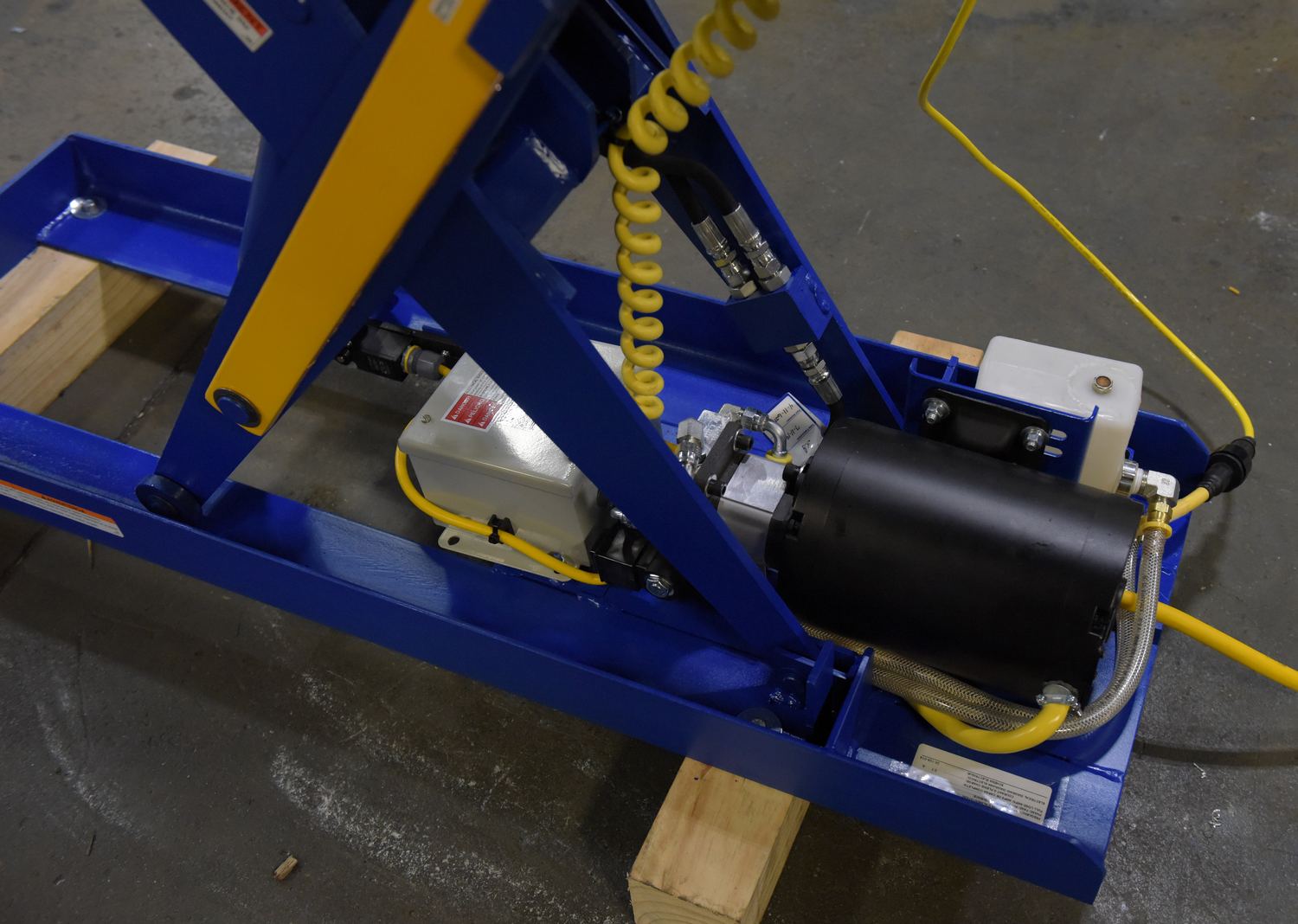

Safety features include an electric pinch point toe guard, internal safety velocity fuse, maintenance props, and an upper travel limit switch to stop the table at maximum height. Displacement-style hydraulic cylinders are installed rod down for strength and reliable lifting performance.

Capacities and Controls

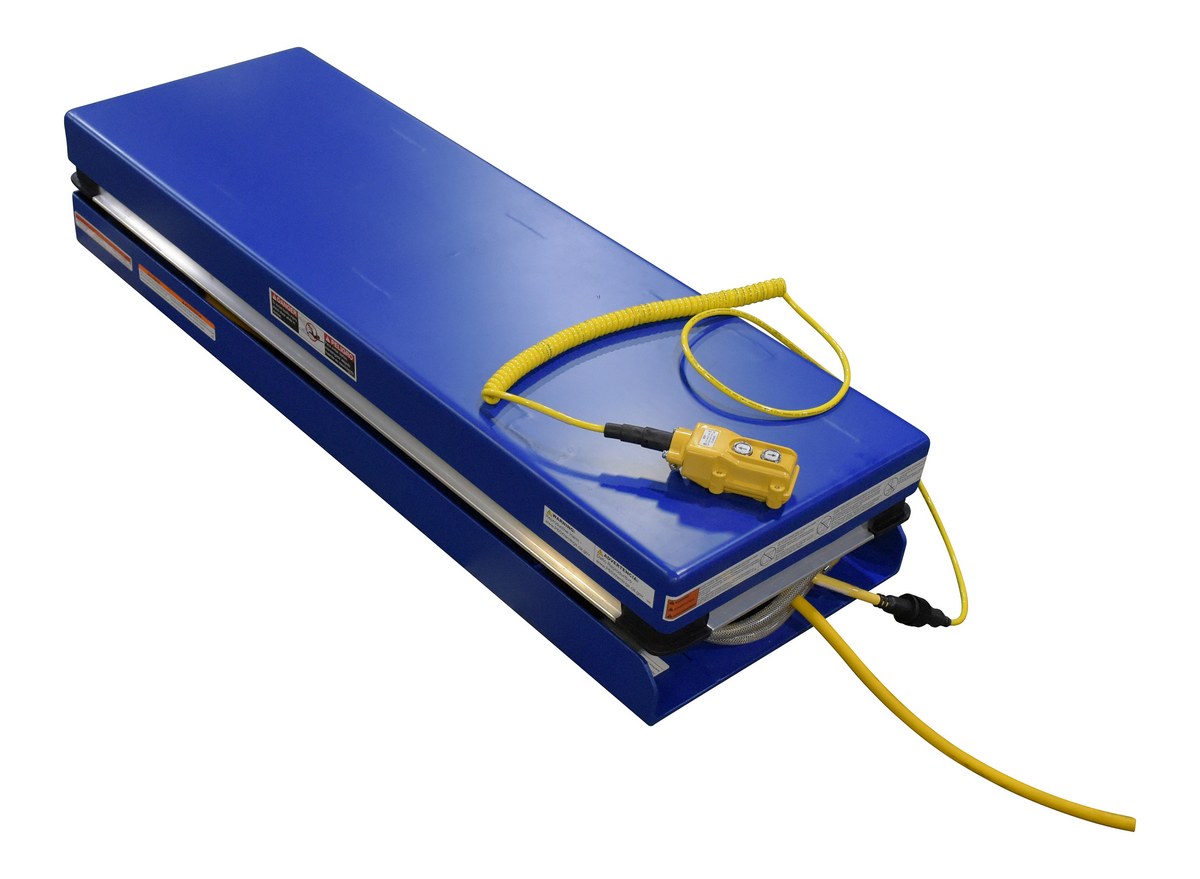

This family includes 1,000 lb. and 2,000 lb. uniform static capacity models with an 8 inch lowered height and 32 inch raised height. Standard power is 460V, 3-phase, 60 Hz, with other voltages available. A handheld two-button NEMA 4 pendant control with minimum 8 foot usable cord supports convenient operation in demanding industrial environments.

Narrow Scissor Lift Tables

model: EHLT-N-1648-2-32
