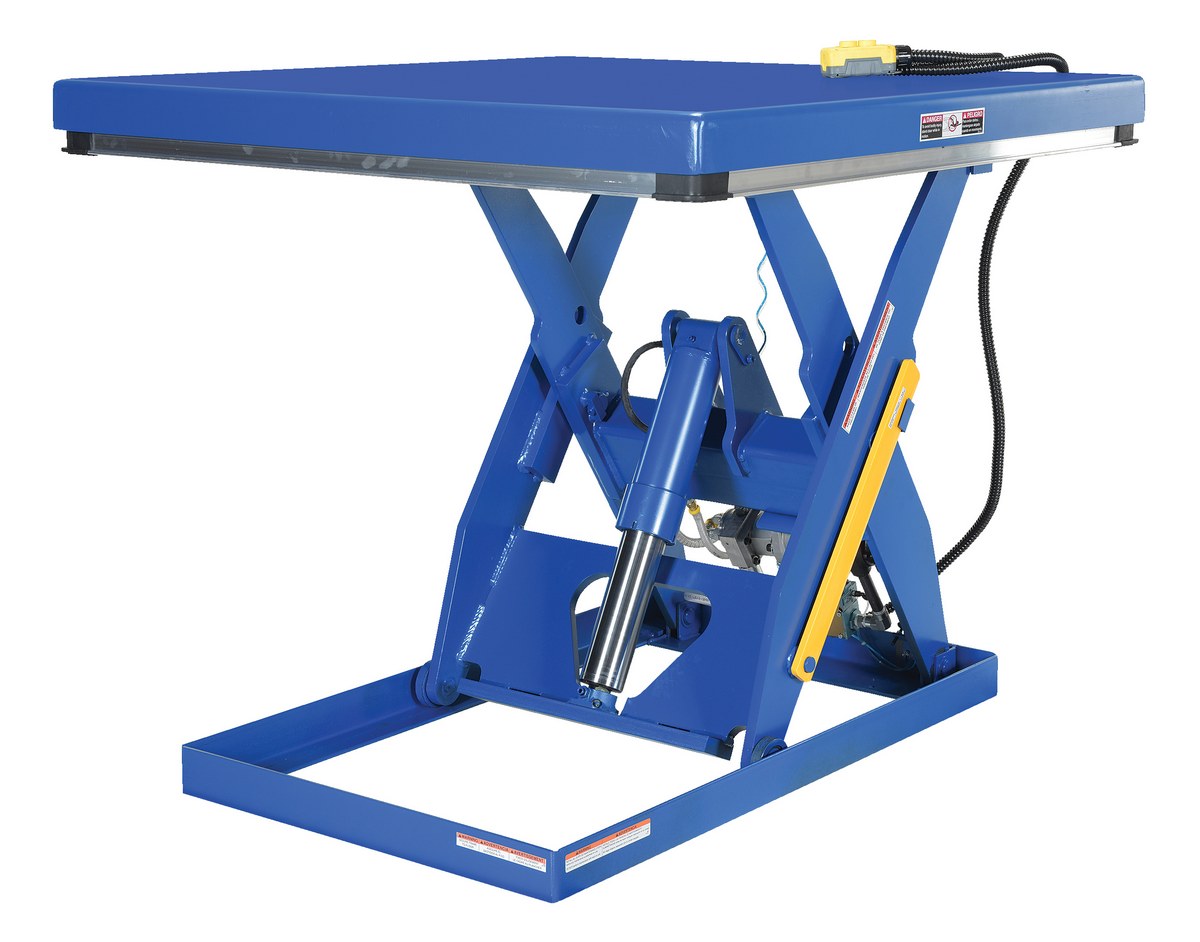

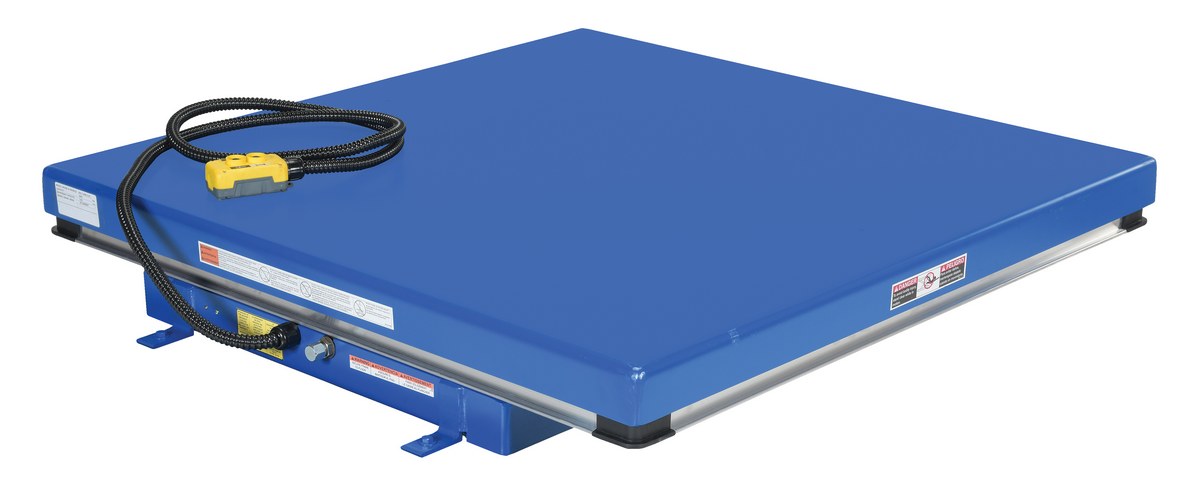

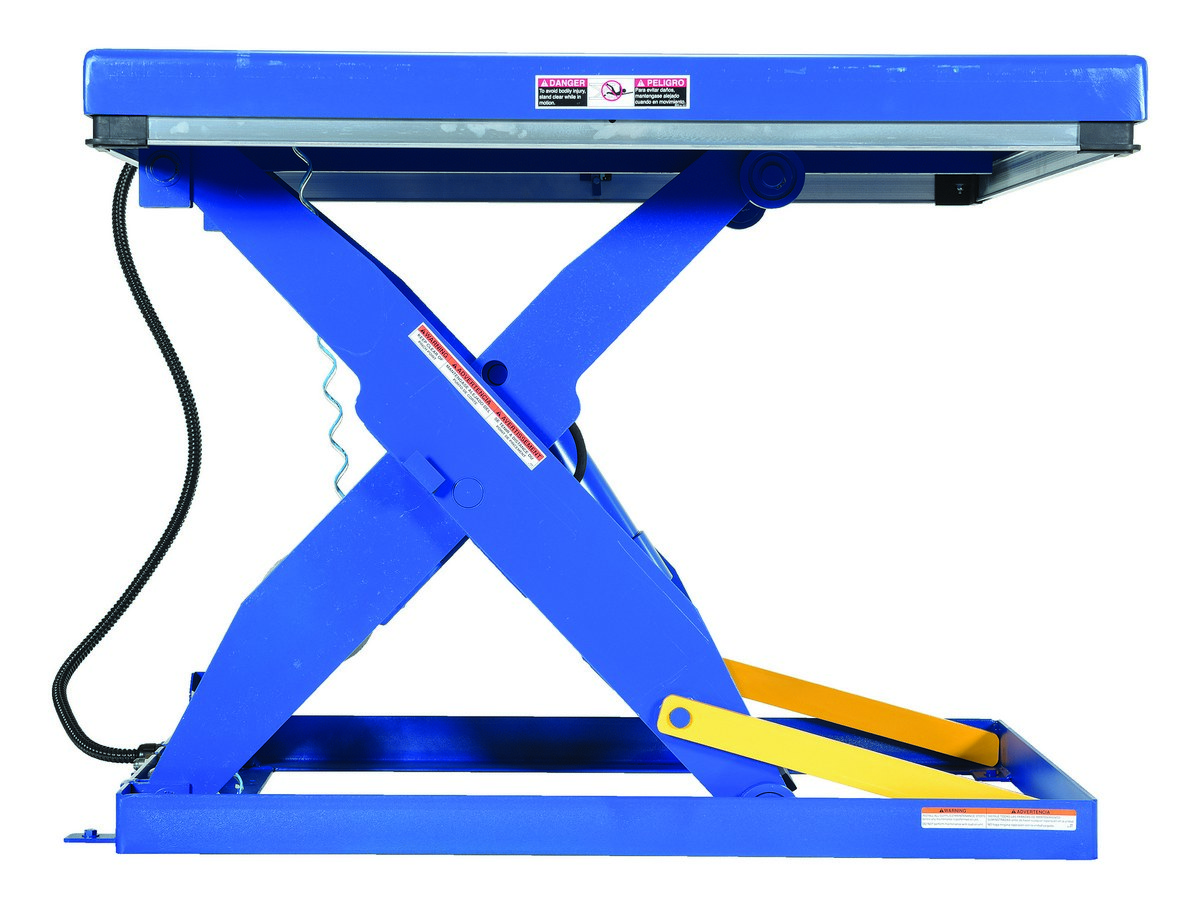

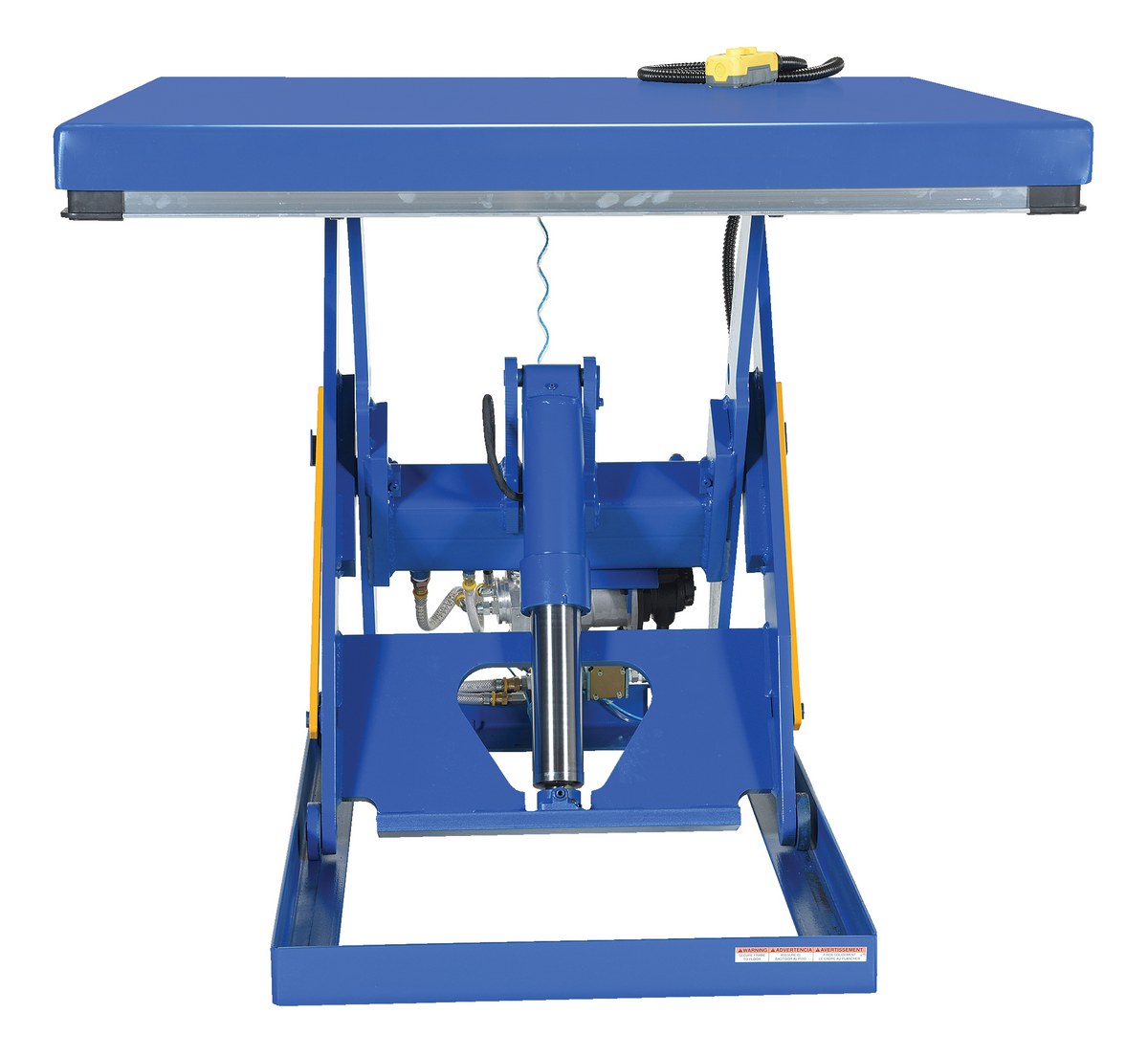

Rotary Air/Hydraulic Scissor Lift Tables

Rotary air/hydraulic scissor lift tables provide a dependable, low-maintenance lifting solution powered entirely by compressed air. Designed for facilities with existing air systems, these tables eliminate the need for electric power while delivering smooth, consistent lifting performance. With a robust scissor design and air-over-oil actuation, they are ideal for environments where electrical components are impractical or restricted.

Key Features & Benefits

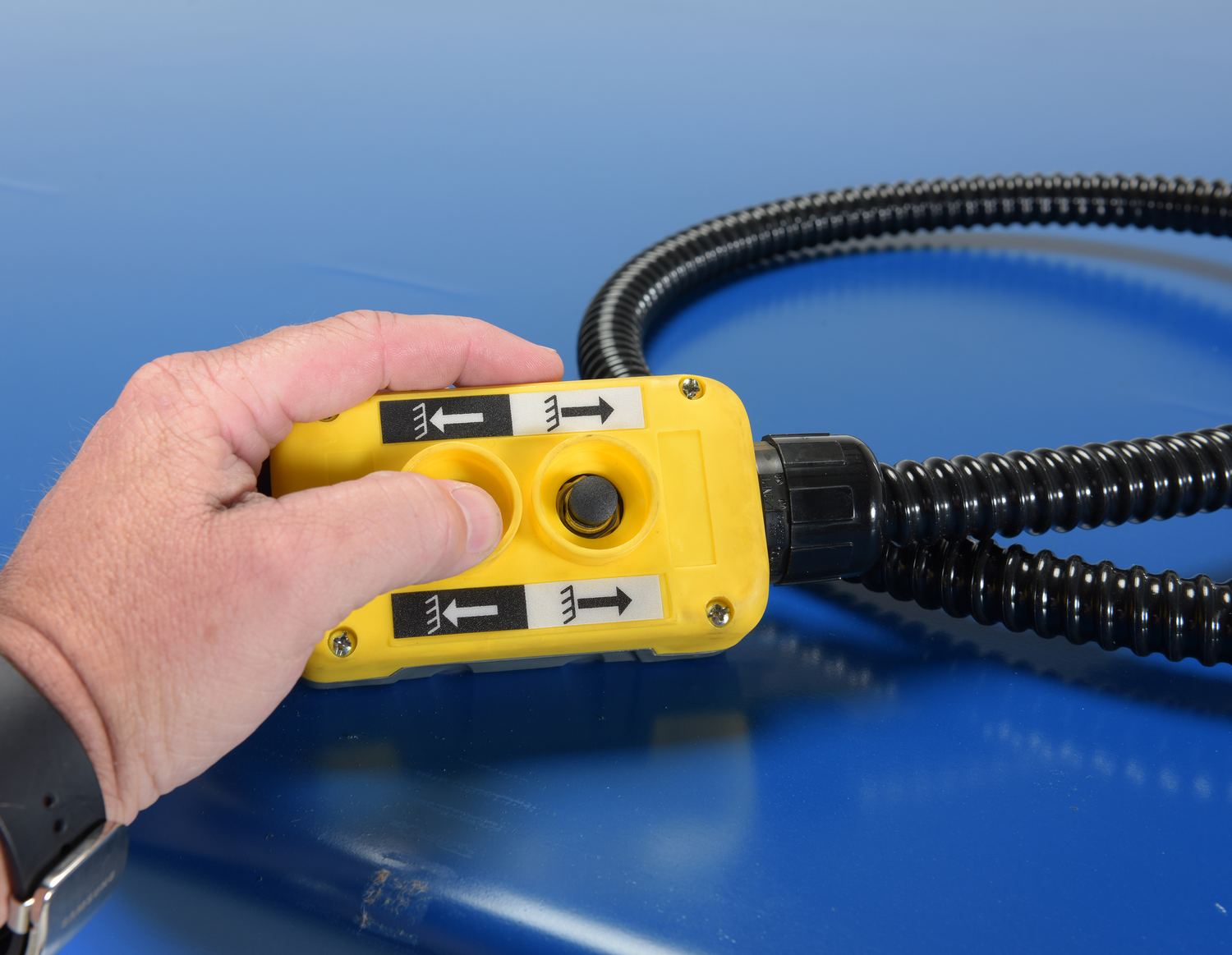

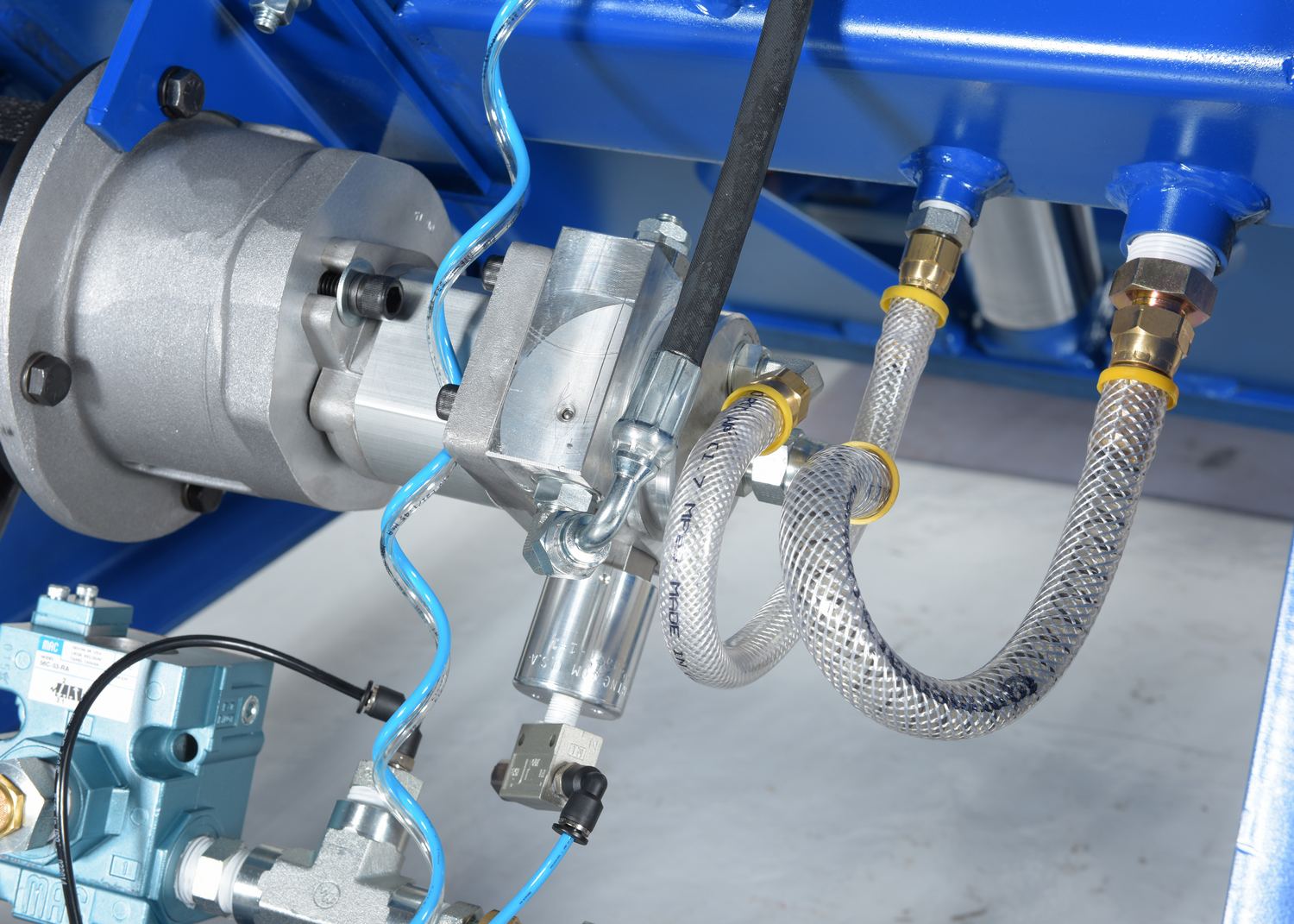

These lift tables operate using a factory air supply (minimum 80 CFM at 80 PSI) and feature a high-performance rotary air/oil power unit for reliable lifting up to heavy-duty capacities. Built-in safety elements include pneumatic upper travel limit switches, safety toe guards, and internal velocity fuses to maintain platform stability in the event of hose failure. Lifetime-lubricated sleeve bearings reduce maintenance while ensuring long service life. A two-button hand control on an extended hose allows safe and convenient operation.

Applications

Ideal for manufacturing plants, assembly lines, warehouses, and maintenance areas, these air-powered lift tables improve ergonomics and reduce worker strain during lifting, positioning, and material handling tasks. They are especially beneficial in facilities prioritizing explosion-proof or non-electric equipment solutions.

Configurations & Options

Available in multiple platform sizes and consistent high-capacity configurations, this family supports a wide range of load handling needs. Optional accessories such as foot controls, pedestal-mounted controls, integrated scales, manual carousels, and safety accordion skirts enhance functionality and adaptability. Proper use of a filter, regulator, and lubricator (FRL) system is required to maintain performance and warranty compliance.

Rotary Air/Hydraulic Scissor Lift Tables

model: AHLT-4848-3-43
