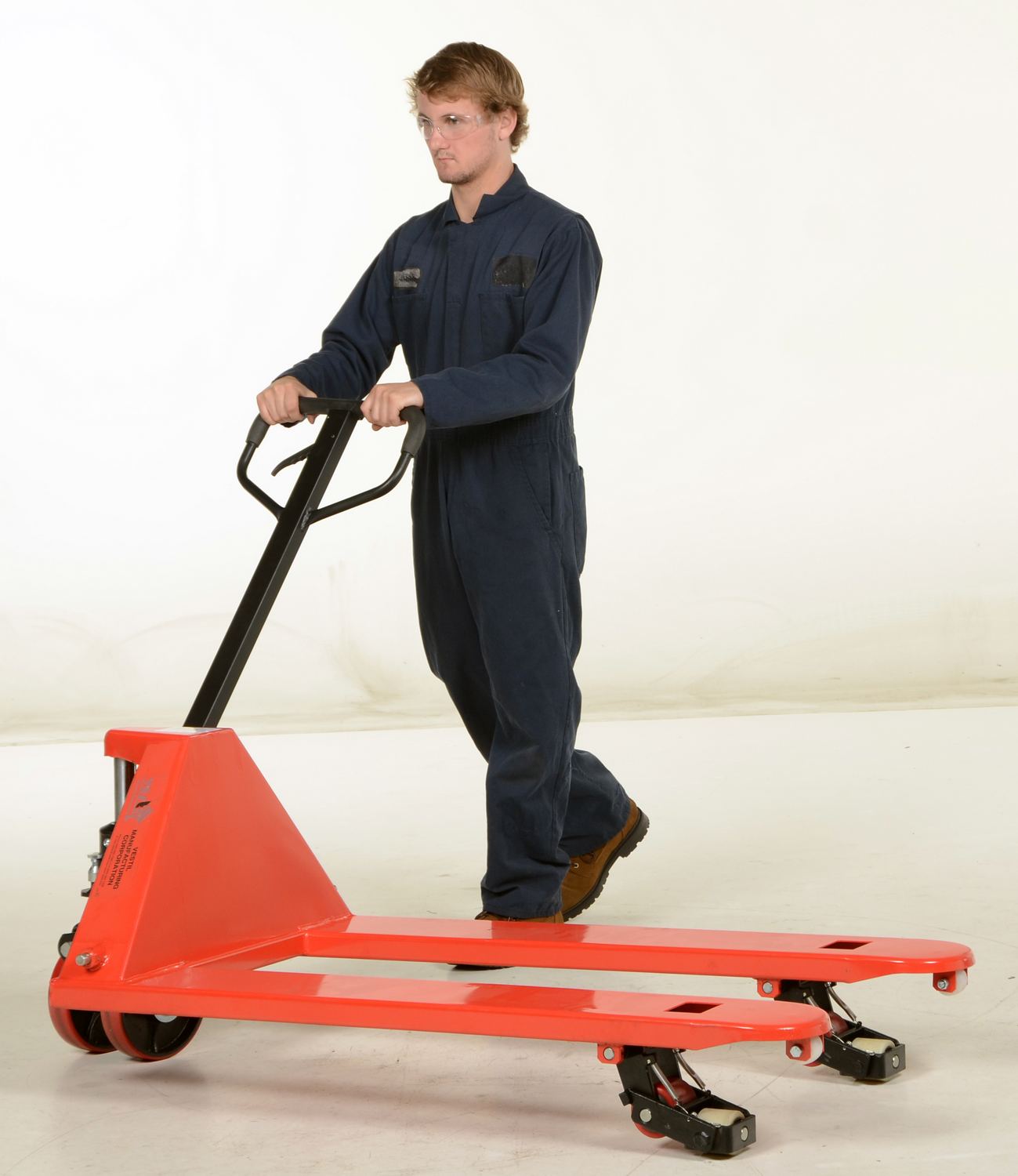

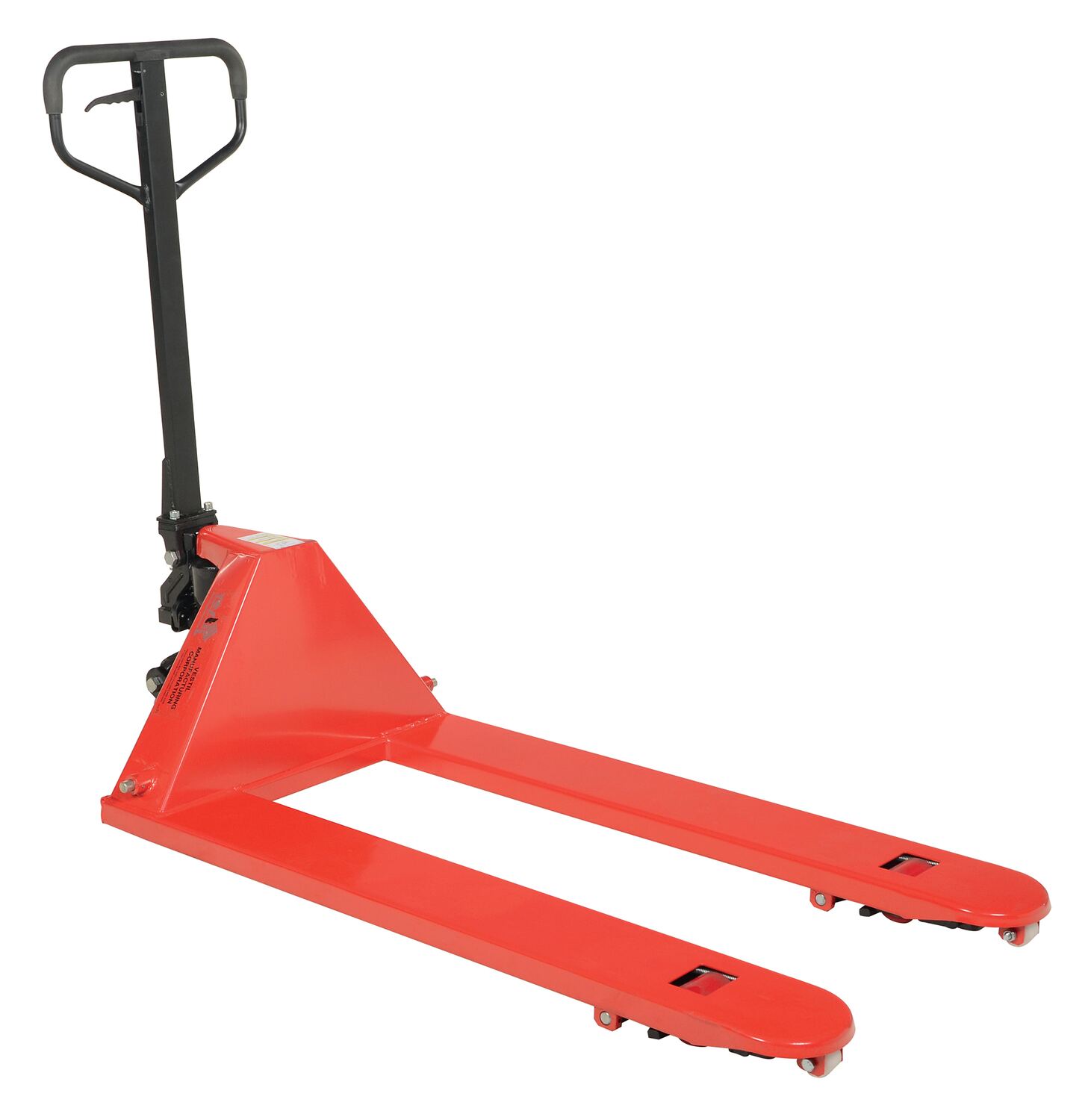

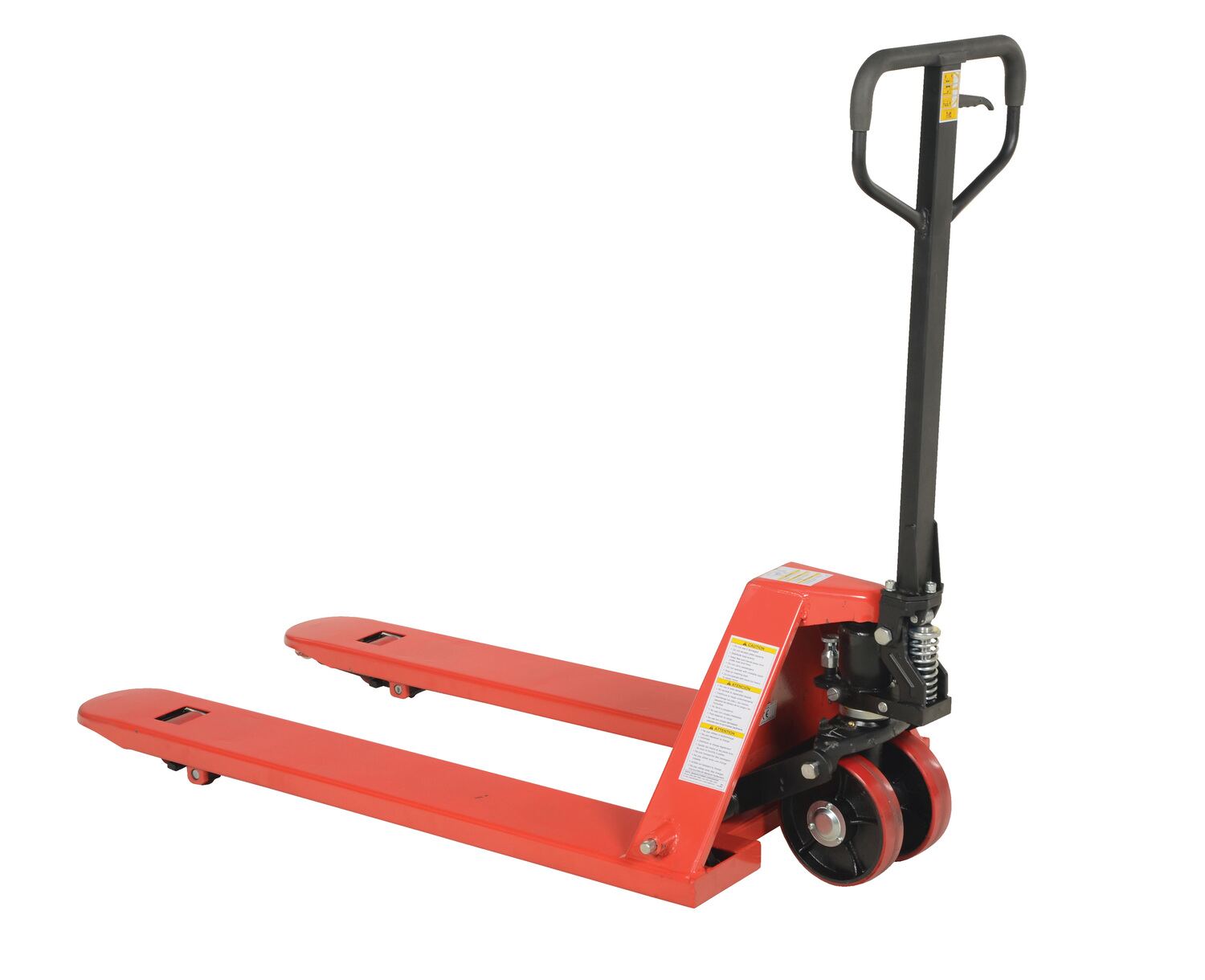

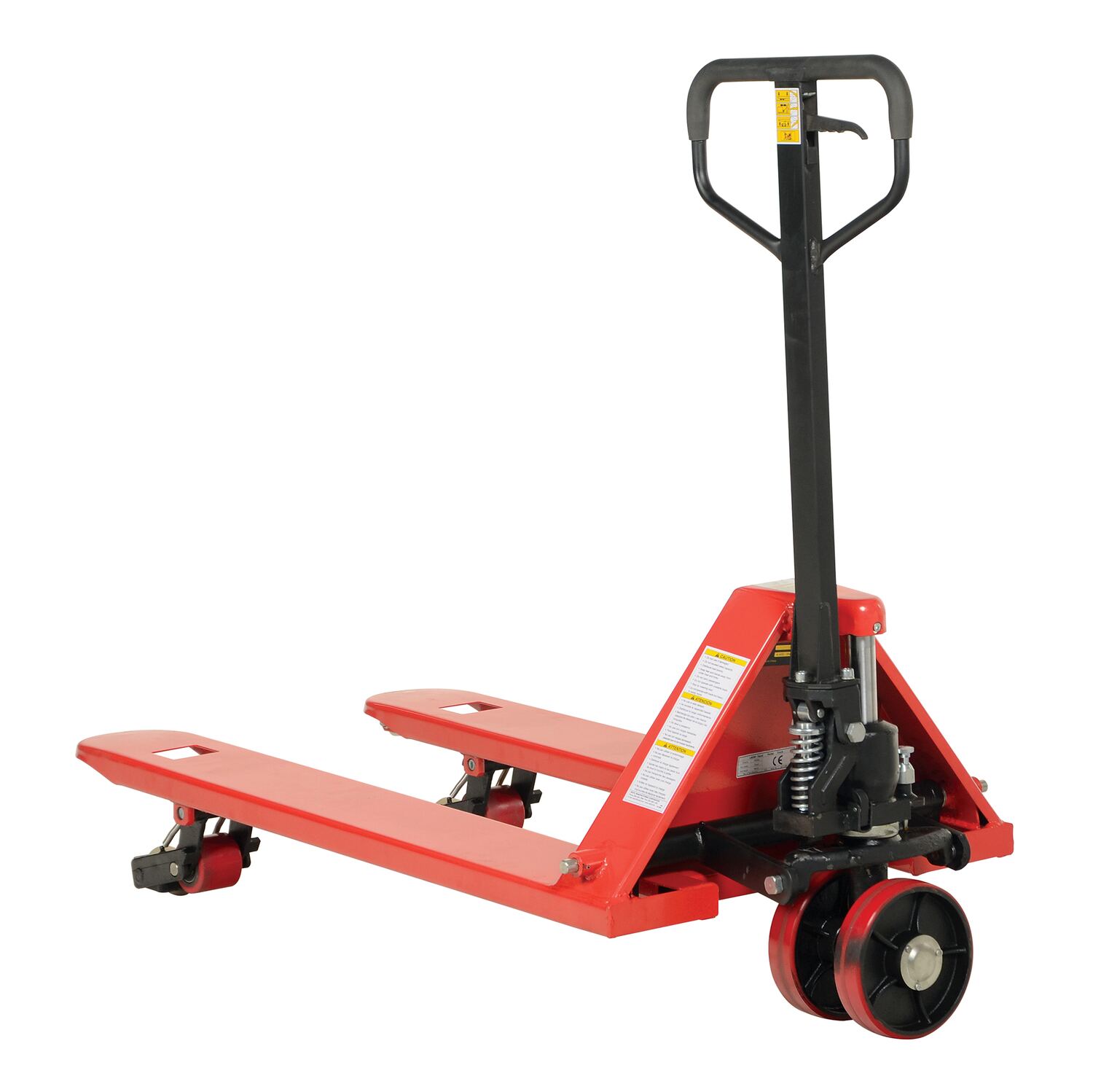

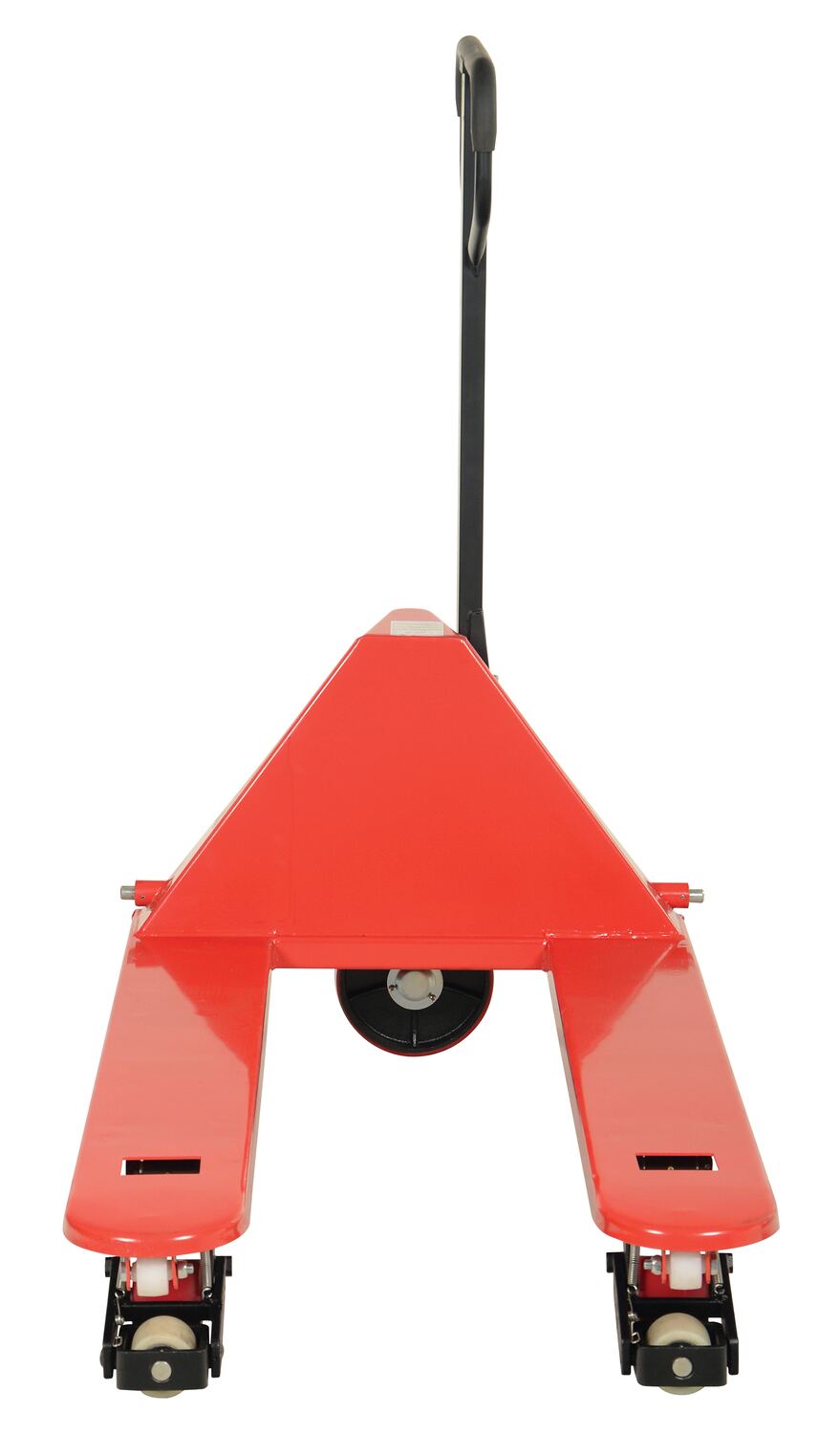

Sideways Pallet Jack for Moving Long Loads Through Narrow Aisles
Side winder pallet trucks provide a specialized solution for transporting long palletized loads through narrow aisles, tight storage areas, and confined warehouse spaces. Designed to move in both traditional and perpendicular directions, this lateral movement pallet jack helps facilities handle oversized materials where standard pallet trucks may not have enough turning clearance.

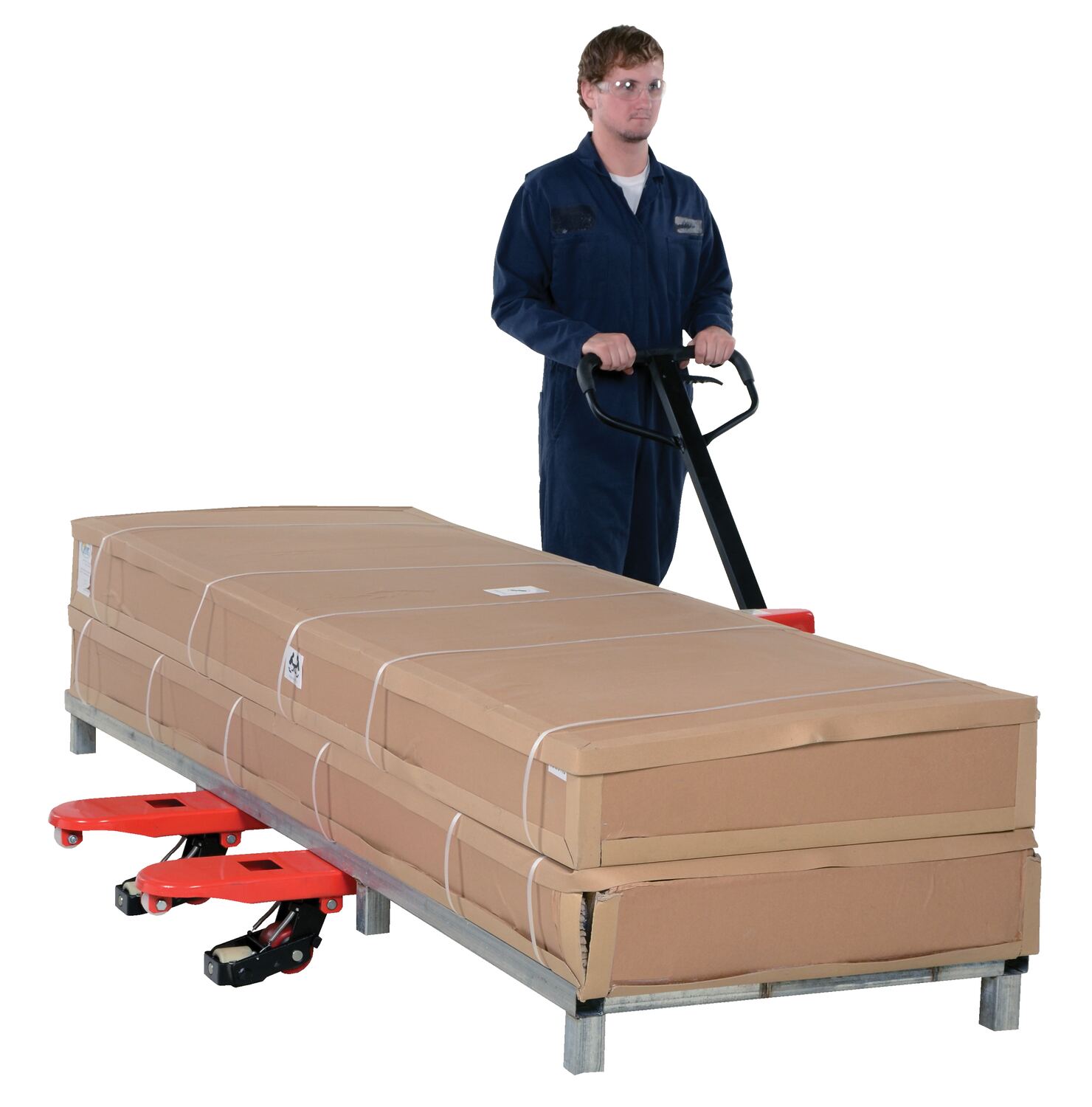

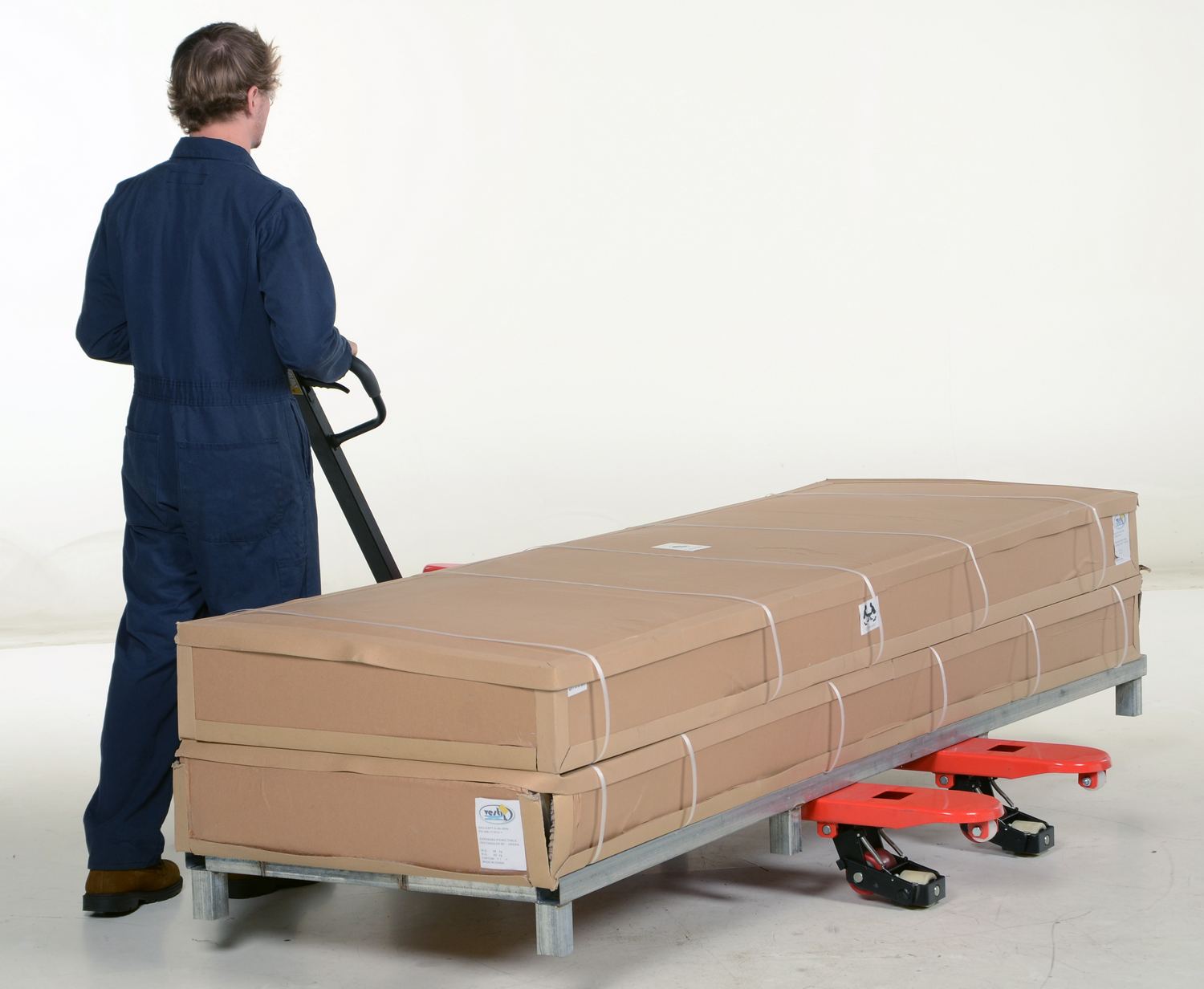

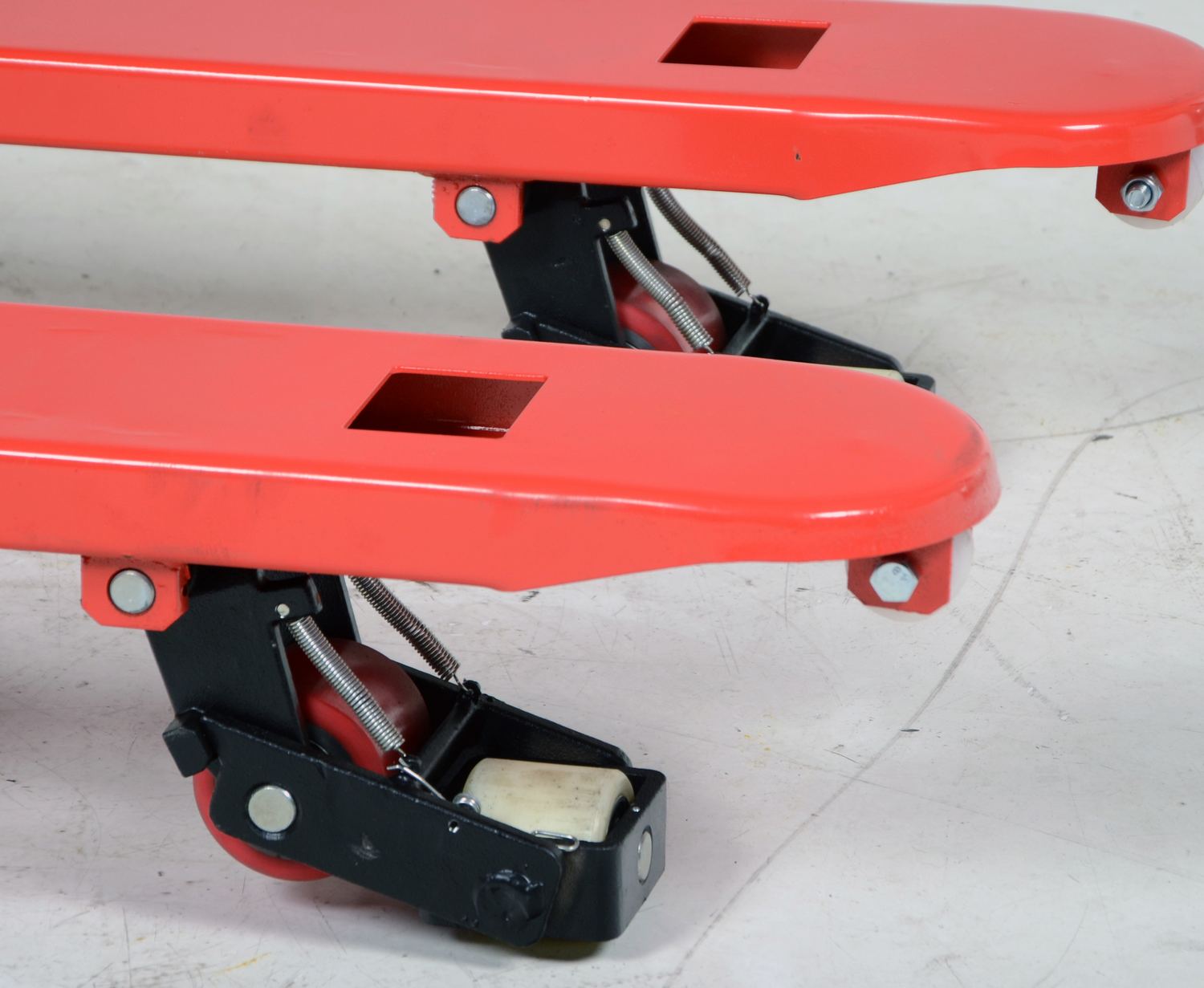

After the forks enter the pallet, the load is raised to engage the side travel function. The handle is rotated and locked into place, activating the right and left roller set so the truck can be pushed sideways, perpendicular to normal pallet truck movement.
The 7 inch x 48 inch forks, 27 inch fork spacing, and 3,000 lb. capacity support practical handling of long, bulky, or awkward palletized loads. This makes the truck useful for warehouses, manufacturing areas, stockrooms, lumber handling, pipe storage, and other applications where aisle space is limited.
A rugged frame, multiple wheel and roller sets, and a service range from 3-1/2 inches to 8 inches provide dependable performance for daily material handling. The red finish improves visibility in busy work areas while providing a clear solution for narrow aisle pallet transport.
| Uniform Capacity (lb.) | 3,000 |
|---|---|
| Fork Spacing (in.) | 27 |
| Fork Width/Length (in.) | 7 x 48 |
| Rear Wheel Qty./Diameter/Width (in.) | (2) 8 x 2 |
| Load Roller Qty./Diameter/Width (in.) | (2) 3 x 2-3/4 |
| Balance Wheel Qty./Diameter/Width (in.) | (2) 3 x 2-3/4 |
| Front Wheel Qty./Diameter/Width (in.) | (2) 2 x 1-1/8 |
| Assembled Weight | 219 |
| Total Ship Weight | 219 |
| Package 1 Size | 40″W x 64″D x 19″H |
| Freight | LTL Palletized |
| Weight | 219 lbs |
|---|---|
| Dimensions | 64 × 40 × 19 in |
| Uniform Capacity (lb.) | 3, 000 |
