Price range: $3,184.57 through $5,716.92

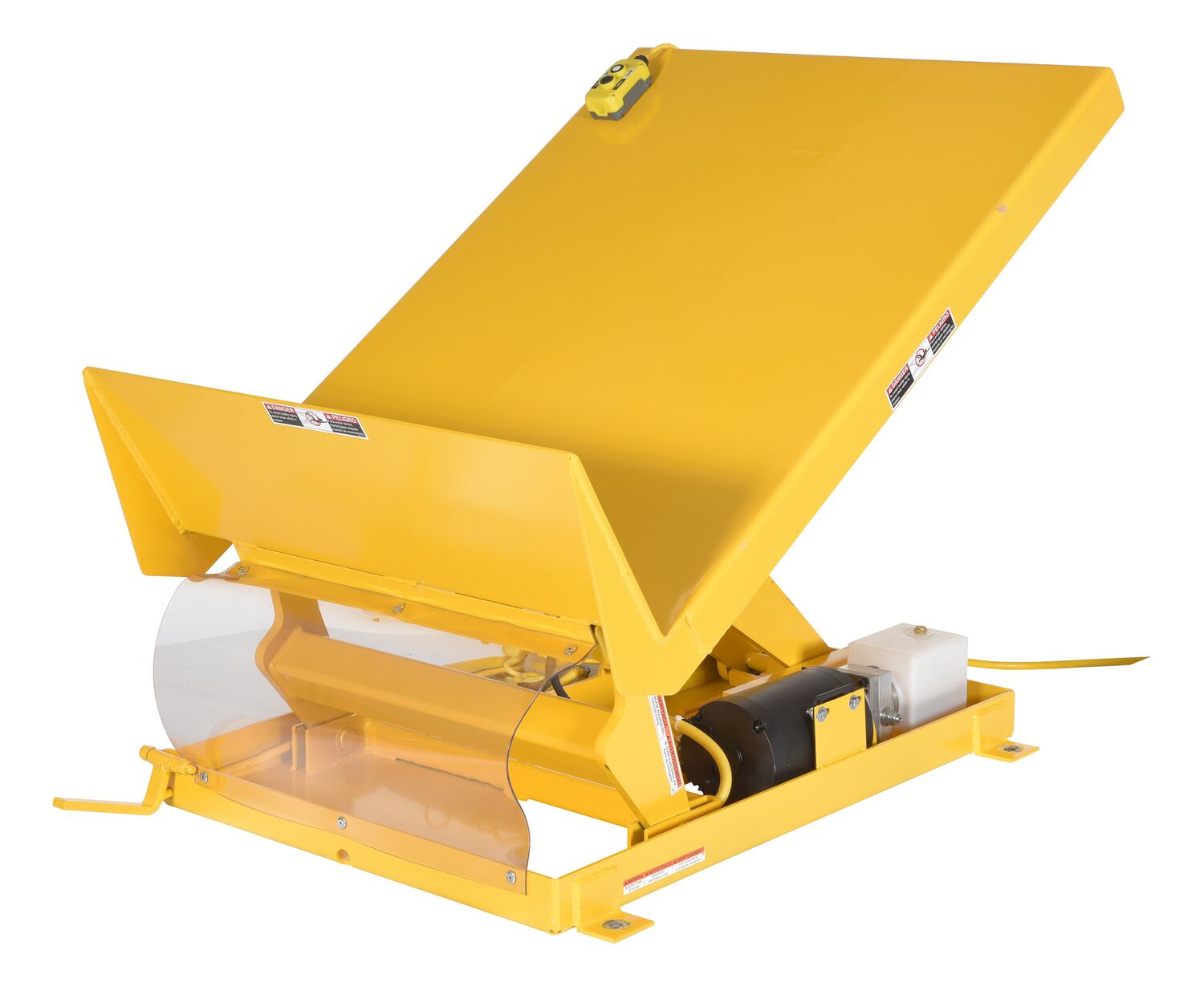

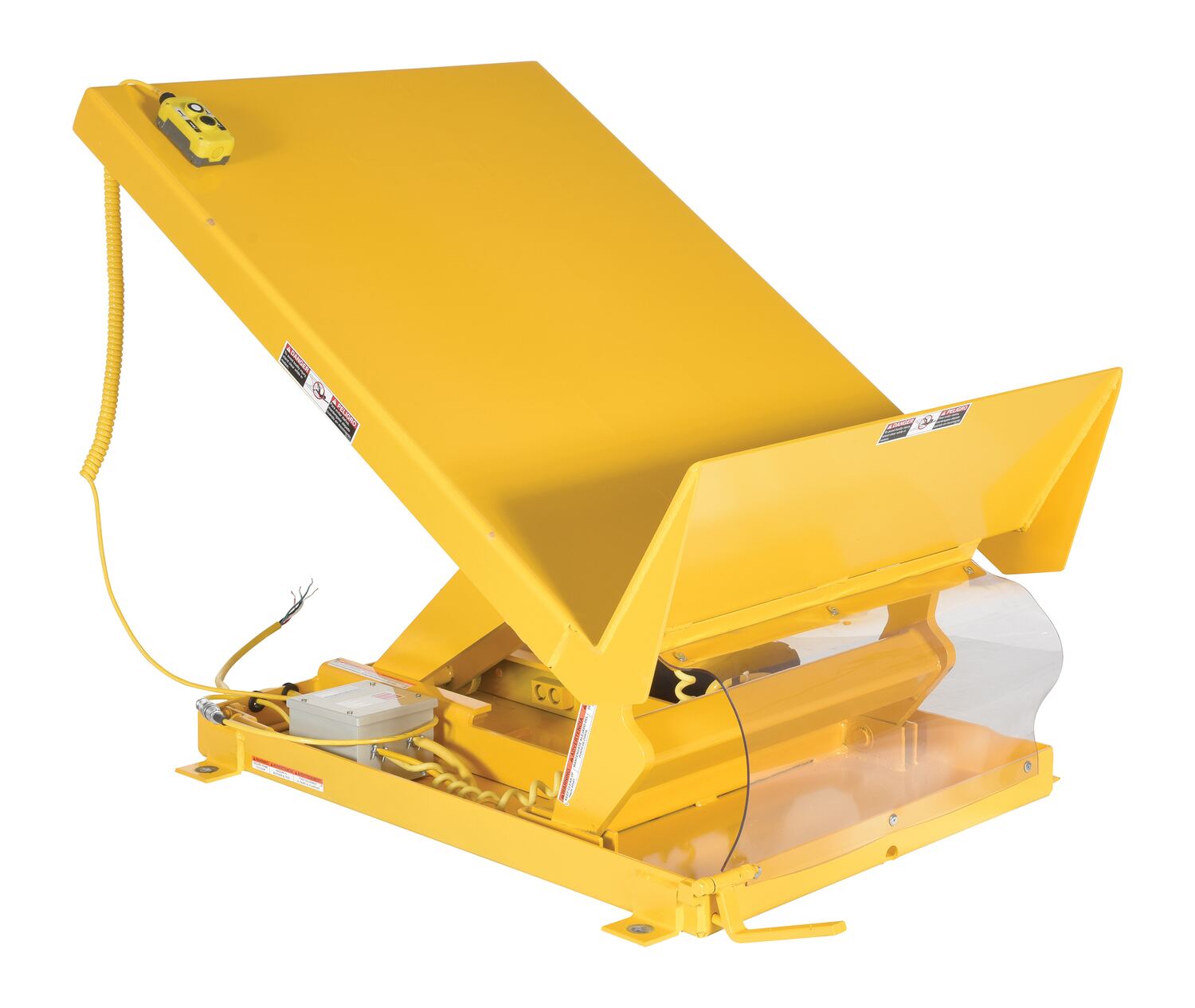

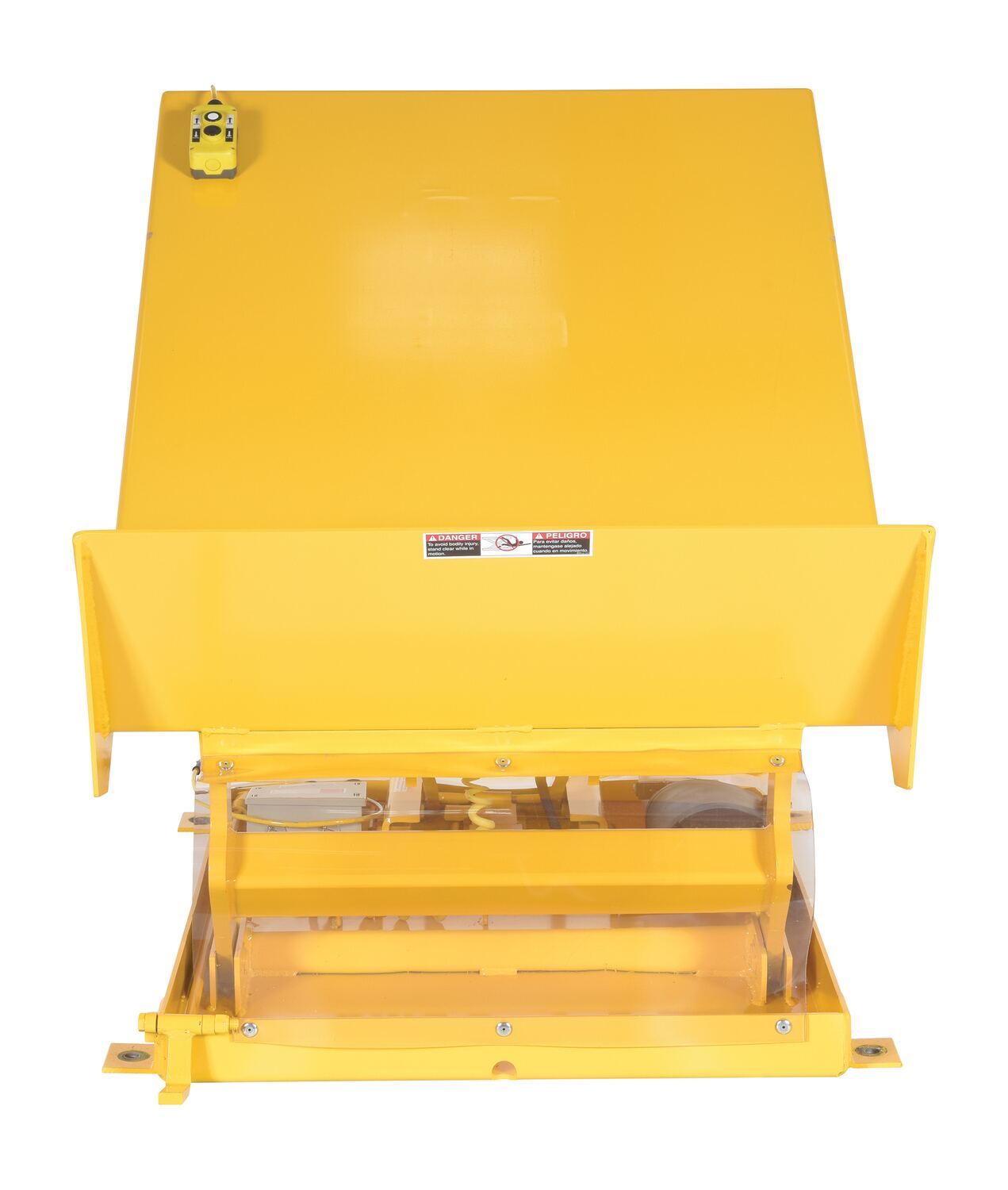

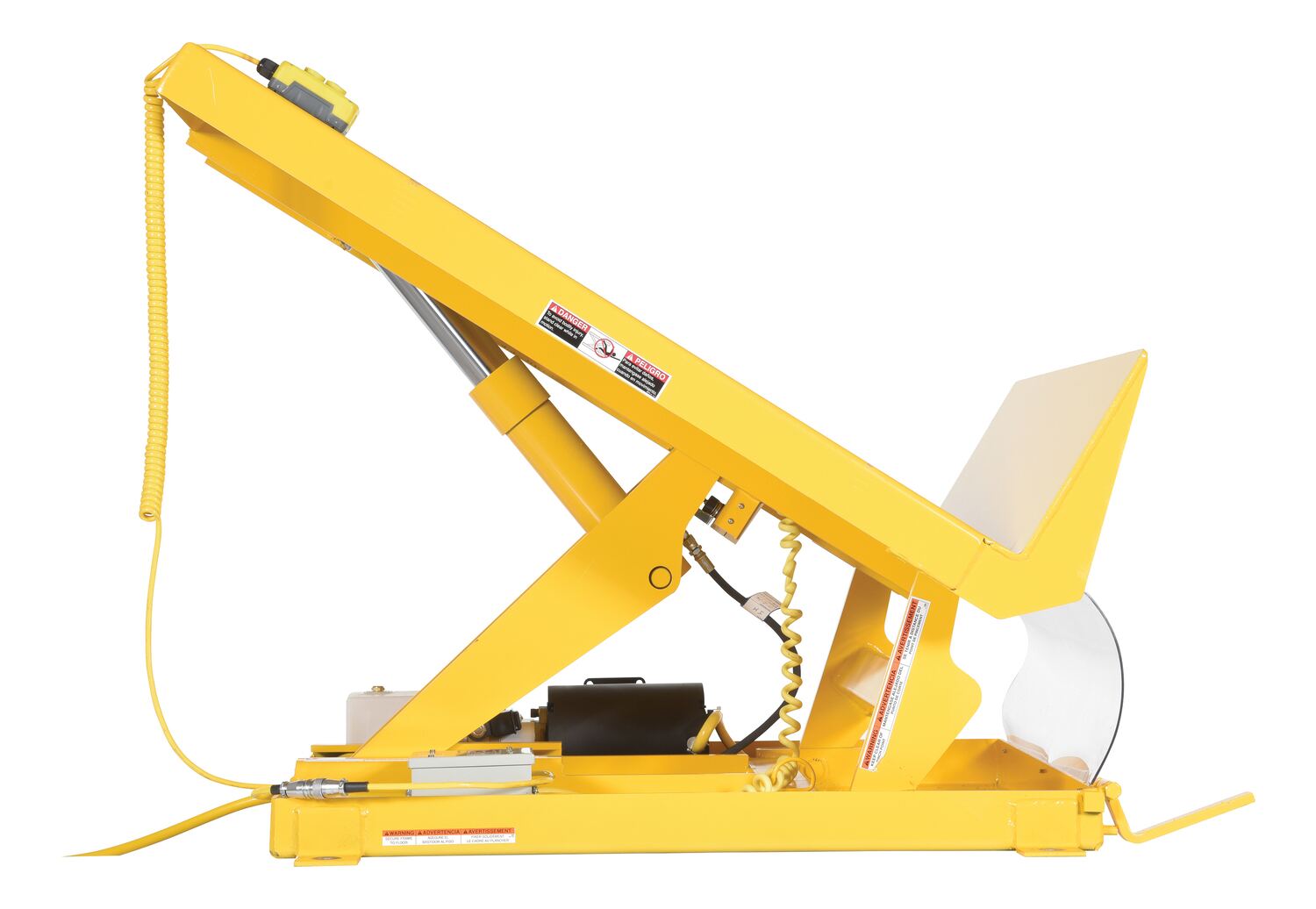

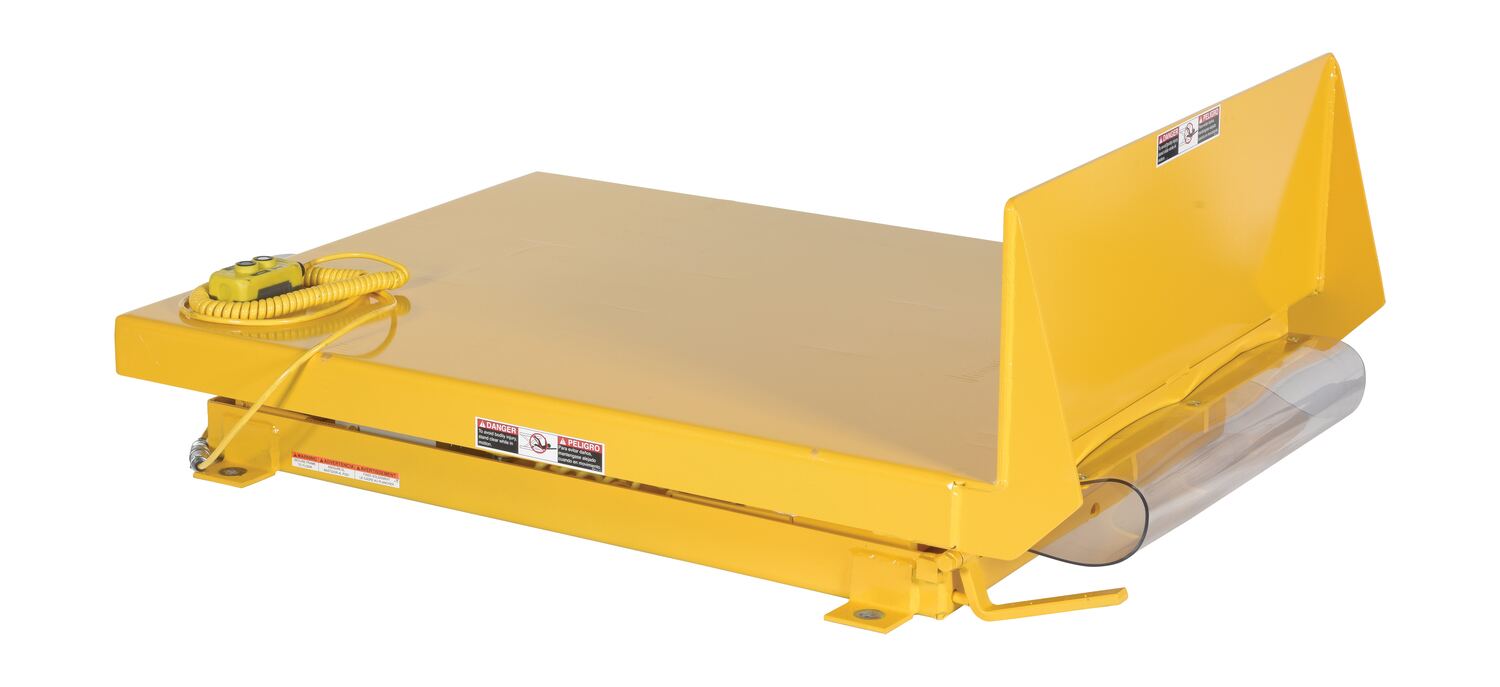

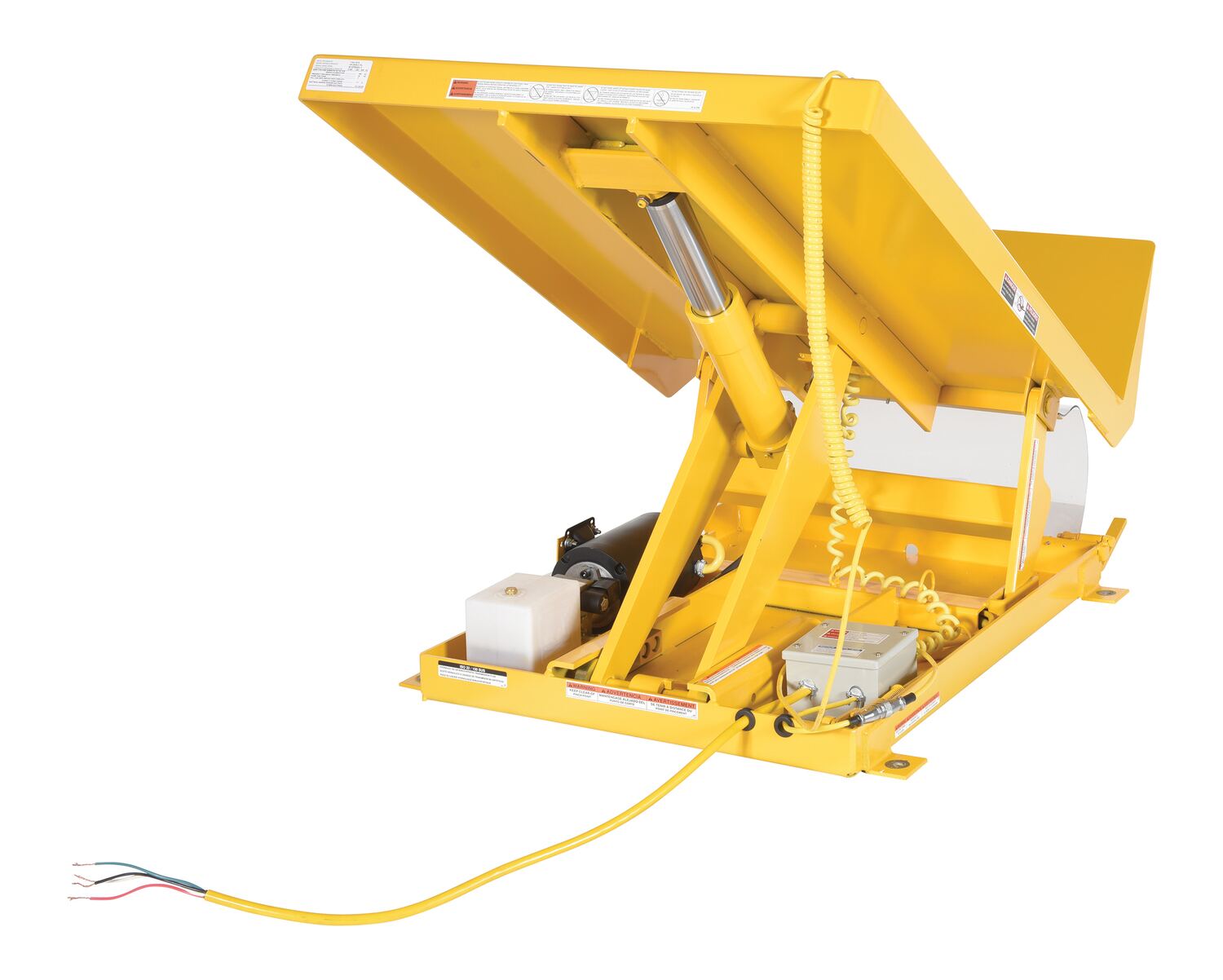

Hydraulic Lift and Tilt Tables for Ergonomic Parts Handling
Single Scissor Lift & Tilt Tables combine vertical lifting and controlled tilting in one ergonomic workstation solution. Designed to position containers, bins, totes, and parts at an optimal working height, these hydraulic lift tables help reduce repetitive bending, stretching, and reaching during assembly, packaging, inspection, and manufacturing operations. By bringing materials closer to the operator, they improve productivity while helping create a safer and more comfortable work environment.

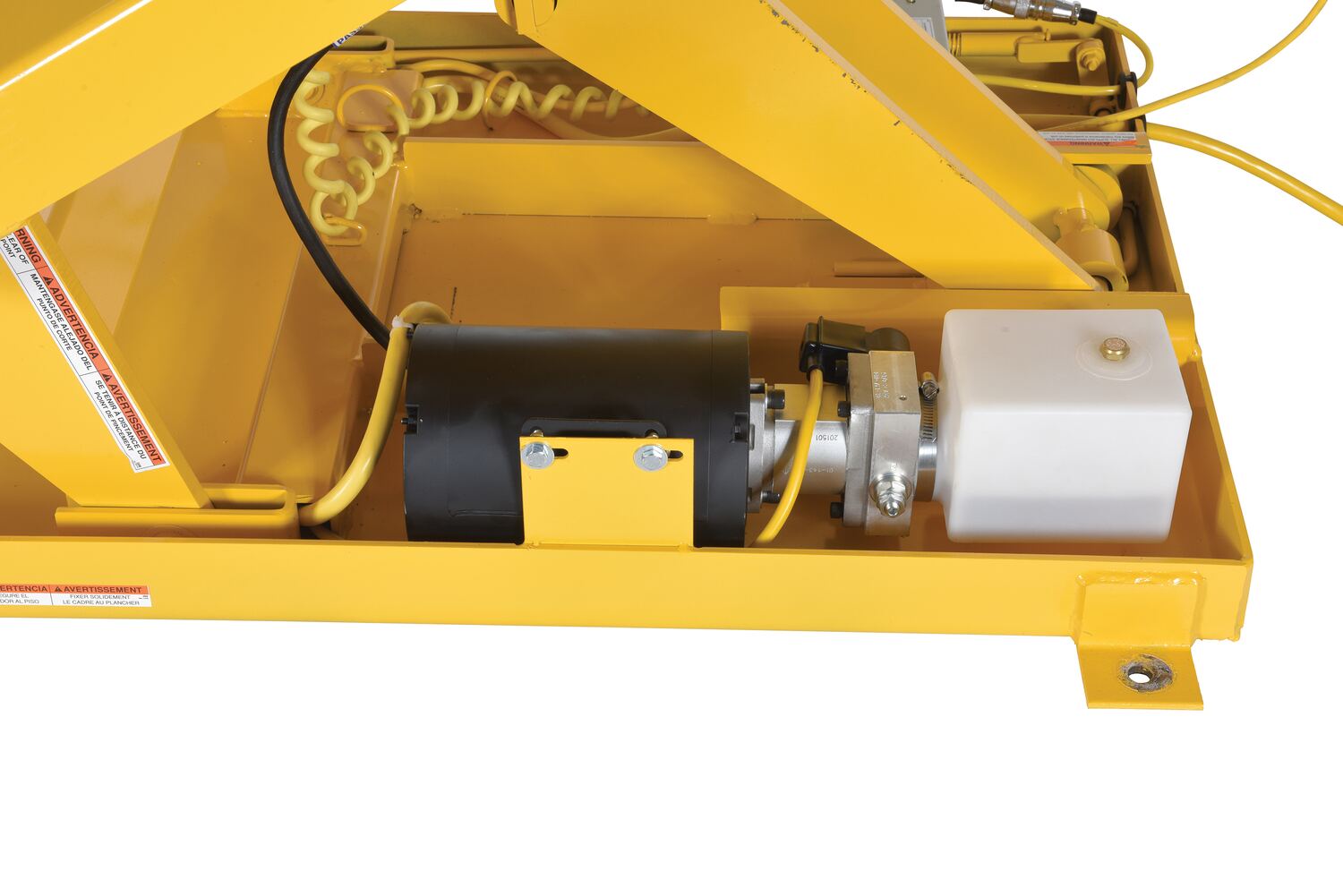

The unique lift-and-tilt design allows operators to raise and tilt loads independently, providing greater control when accessing parts throughout a container. A high retaining lip on the tilt side helps keep materials securely contained during operation, making these units ideal for parts transfer and assembly applications. Heavy-duty welded steel construction delivers long-lasting durability, while the hydraulic system features a pressure-compensated flow valve, maintenance lock, pressure-plated pump, adjustable travel switch, and smooth lowering controls for dependable performance. A handheld control comes standard for convenient operation.
These ergonomic material handling tables are ideal for manufacturing facilities, assembly lines, machine feeding stations, distribution centers, and packaging operations. They are particularly effective where operators repeatedly access parts from containers and need improved visibility and reach into bins, cartons, or bulk storage containers. The ability to tilt loads up to 40 degrees helps minimize worker fatigue and supports lean, efficient workflows.
Available in multiple platform sizes and load capacities, the family accommodates a wide range of container dimensions and material handling requirements. Internal and external power unit configurations are offered depending on model size and application needs. An optional hand control pedestal is available for enhanced operator convenience. For facilities seeking a reliable ergonomic lifting solution, these hydraulic lift and tilt tables deliver improved efficiency, safety, and operator comfort.
| Weight | 1086 lbs |
|---|---|
| Dimensions | 59 × 54 × 32 in |
| Model | UNI-2448-2-BLU-115-1, UNI-2448-2-BLU-208-3, UNI-2448-2-BLU-230-1, UNI-2448-2-BLU-230-3, UNI-2448-2-BLU-460-3, UNI-2448-2-YEL-115-1, UNI-2448-2-YEL-208-3, UNI-2448-2-YEL-230-1, UNI-2448-2-YEL-230-3, UNI-2448-2-YEL-460-3, UNI-2448-4-BLU-115-1, UNI-2448-4-BLU-208-3, UNI-2448-4-BLU-230-1, UNI-2448-4-BLU-230-3, UNI-2448-4-BLU-460-3, UNI-2448-4-YEL-115-1, UNI-2448-4-YEL-208-3, UNI-2448-4-YEL-230-1, UNI-2448-4-YEL-230-3, UNI-2448-4-YEL-460-3, UNI-3648-2-BLU-115-1, UNI-3648-2-BLU-208-3, UNI-3648-2-BLU-230-1, UNI-3648-2-BLU-230-3, UNI-3648-2-BLU-460-3, UNI-3648-2-YEL-115-1, UNI-3648-2-YEL-208-3, UNI-3648-2-YEL-230-1, UNI-3648-2-YEL-230-3, UNI-3648-2-YEL-460-3, UNI-3648-4-BLU-115-1, UNI-3648-4-BLU-208-3, UNI-3648-4-BLU-230-1, UNI-3648-4-BLU-230-3, UNI-3648-4-BLU-460-3, UNI-3648-4-YEL-115-1, UNI-3648-4-YEL-208-3, UNI-3648-4-YEL-230-1, UNI-3648-4-YEL-230-3, UNI-3648-4-YEL-460-3, UNI-4048-2-BLU-115-1, UNI-4048-2-BLU-208-3, UNI-4048-2-BLU-230-1, UNI-4048-2-BLU-230-3, UNI-4048-2-BLU-460-3, UNI-4048-2-YEL-115-1, UNI-4048-2-YEL-208-3, UNI-4048-2-YEL-230-1, UNI-4048-2-YEL-230-3, UNI-4048-2-YEL-460-3, UNI-4048-4-BLU-115-1, UNI-4048-4-BLU-208-3, UNI-4048-4-BLU-230-1, UNI-4048-4-BLU-230-3, UNI-4048-4-BLU-460-3, UNI-4048-4-YEL-115-1, UNI-4048-4-YEL-208-3, UNI-4048-4-YEL-230-1, UNI-4048-4-YEL-230-3, UNI-4048-4-YEL-460-3, UNI-4848-2-BLU-115-1, UNI-4848-2-BLU-208-3, UNI-4848-2-BLU-230-1, UNI-4848-2-BLU-230-3, UNI-4848-2-BLU-460-3, UNI-4848-2-YEL-115-1, UNI-4848-2-YEL-208-3, UNI-4848-2-YEL-230-1, UNI-4848-2-YEL-230-3, UNI-4848-2-YEL-460-3, UNI-4848-4-BLU-115-1, UNI-4848-4-BLU-208-3, UNI-4848-4-BLU-230-1, UNI-4848-4-BLU-230-3, UNI-4848-4-BLU-460-3, UNI-4848-4-YEL-115-1, UNI-4848-4-YEL-208-3, UNI-4848-4-YEL-230-1, UNI-4848-4-YEL-230-3, UNI-4848-4-YEL-460-3, UNI-4848-6-BLU-115-1, UNI-4848-6-BLU-208-3, UNI-4848-6-BLU-230-1, UNI-4848-6-BLU-230-3, UNI-4848-6-BLU-460-3, UNI-4848-6-YEL-115-1, UNI-4848-6-YEL-208-3, UNI-4848-6-YEL-230-1, UNI-4848-6-YEL-230-3, UNI-4848-6-YEL-460-3, UNI-5448-2-BLU-115-1, UNI-5448-2-BLU-208-3, UNI-5448-2-BLU-230-1, UNI-5448-2-BLU-230-3, UNI-5448-2-BLU-460-3, UNI-5448-2-YEL-115-1, UNI-5448-2-YEL-208-3, UNI-5448-2-YEL-230-1, UNI-5448-2-YEL-230-3, UNI-5448-2-YEL-460-3, UNI-5448-4-BLU-115-1, UNI-5448-4-BLU-208-3, UNI-5448-4-BLU-230-1, UNI-5448-4-BLU-230-3, UNI-5448-4-BLU-460-3, UNI-5448-4-YEL-115-1, UNI-5448-4-YEL-208-3, UNI-5448-4-YEL-230-1, UNI-5448-4-YEL-230-3, UNI-5448-4-YEL-460-3, UNI-5448-6-BLU-115-1, UNI-5448-6-BLU-208-3, UNI-5448-6-BLU-230-1, UNI-5448-6-BLU-230-3, UNI-5448-6-BLU-460-3, UNI-5448-6-YEL-115-1, UNI-5448-6-YEL-208-3, UNI-5448-6-YEL-230-1, UNI-5448-6-YEL-230-3, UNI-5448-6-YEL-460-3 |
