$4,974.17

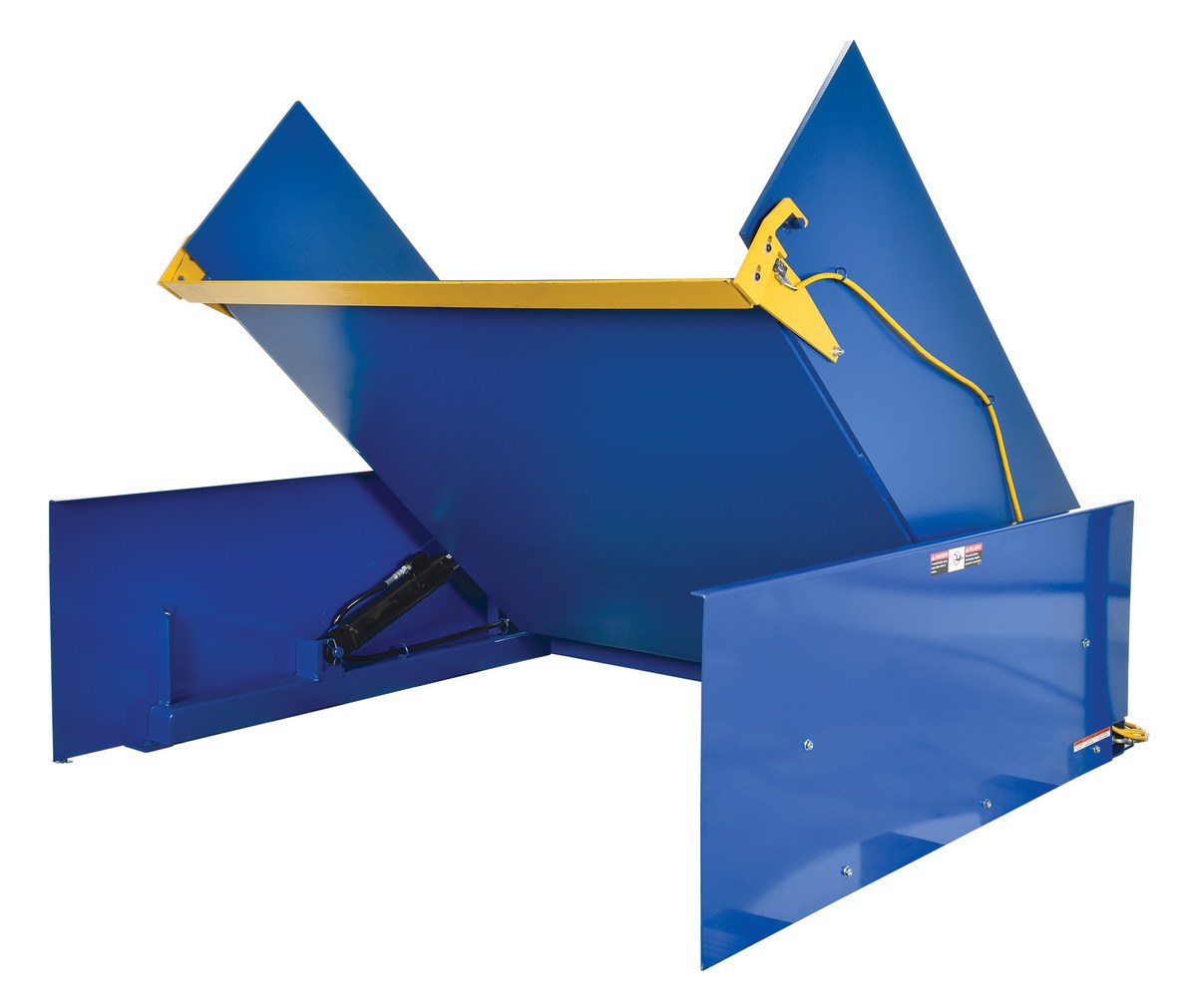

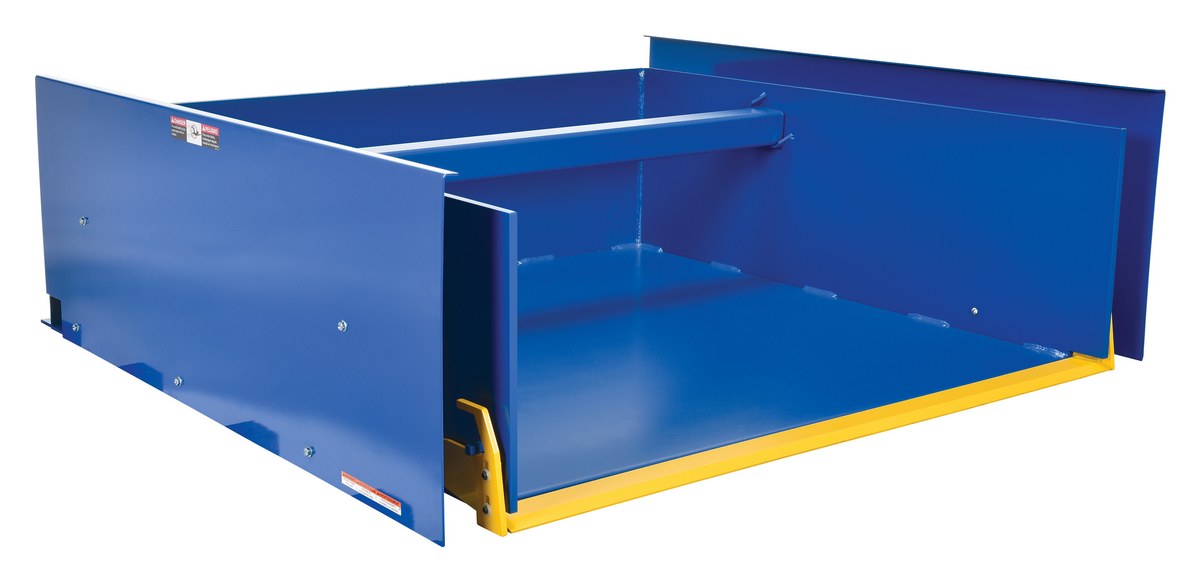

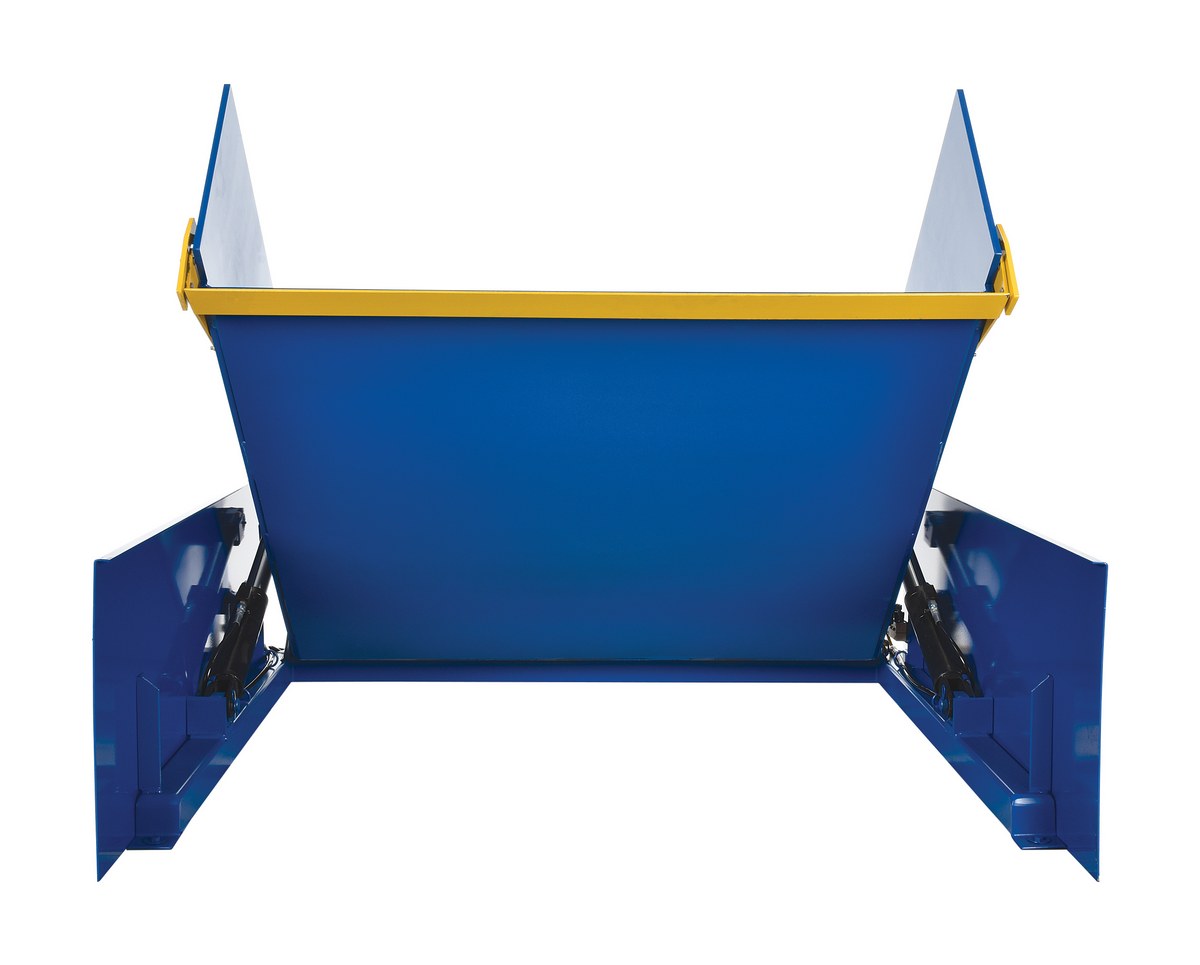

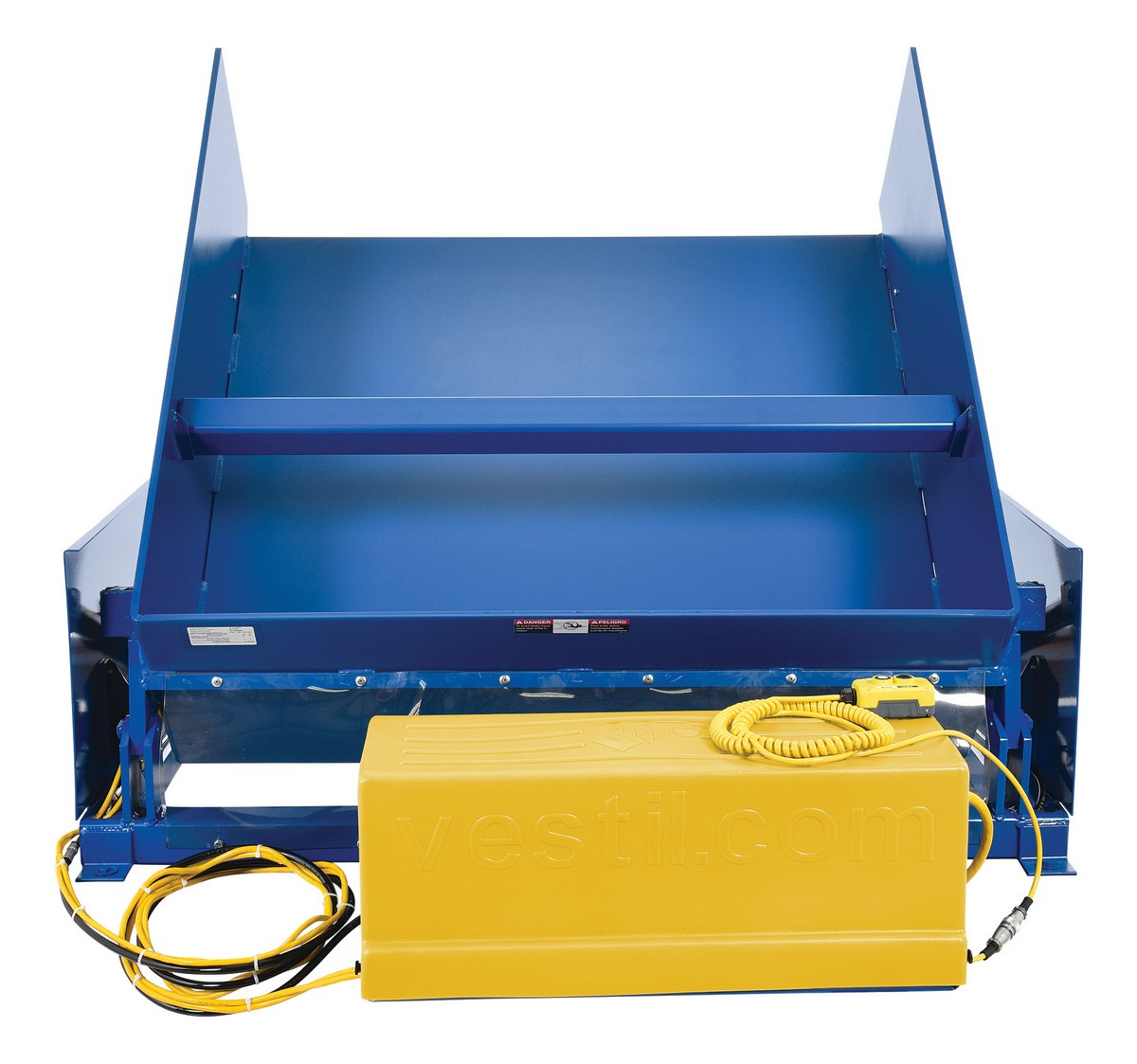

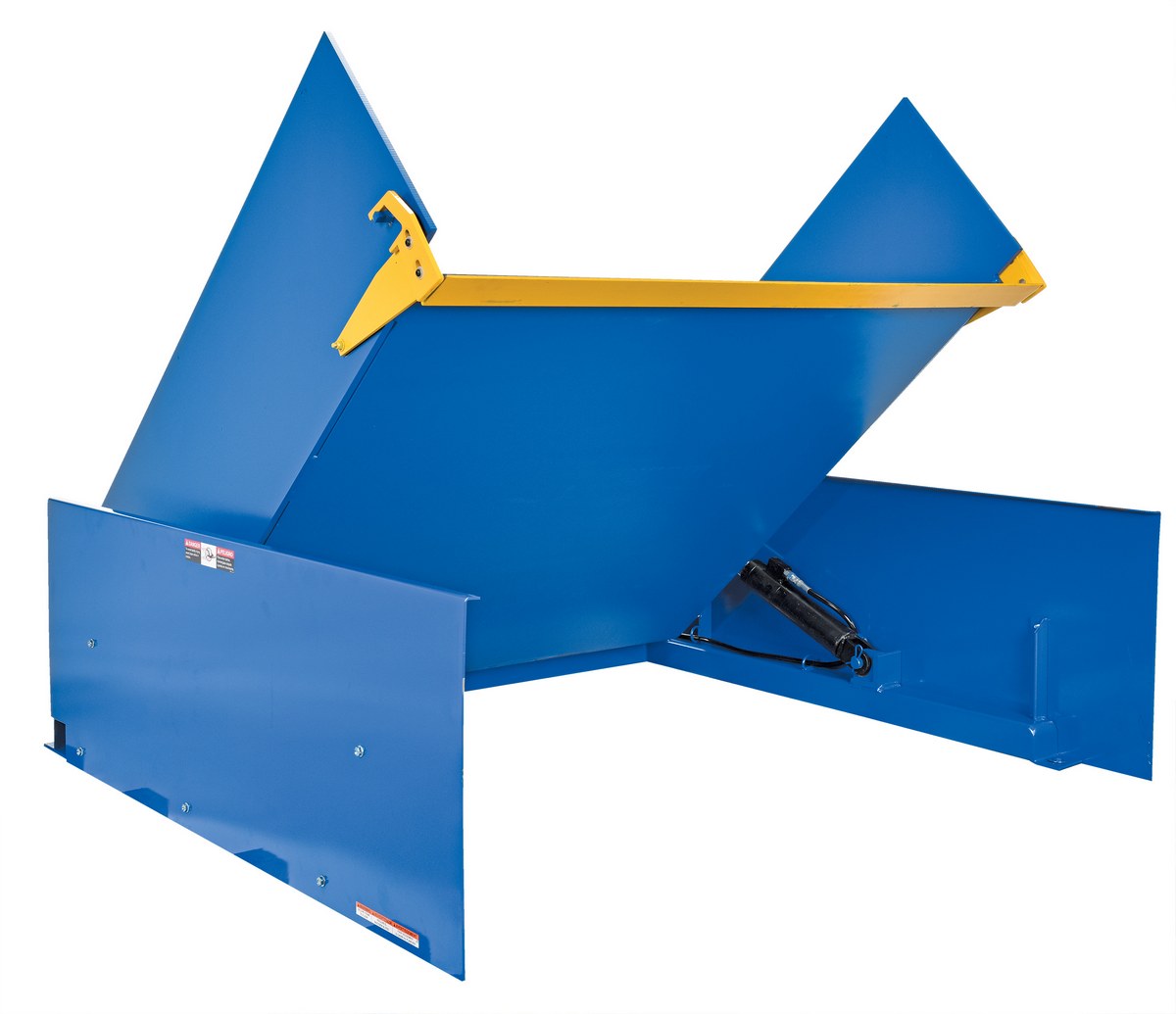

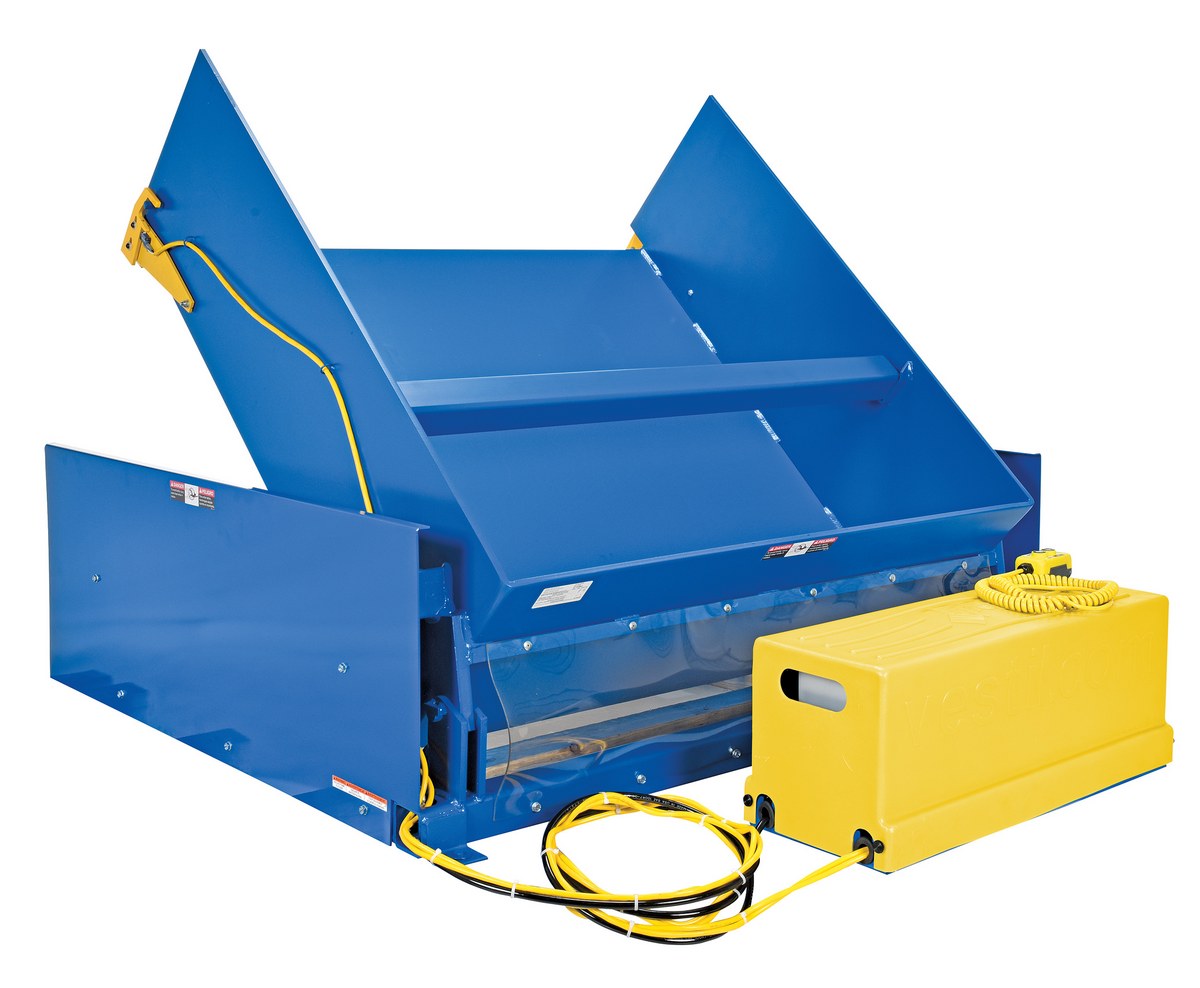

Ground Tilter
The Ground Tilter, model GLT-4000 , is the best product for tilting applications which require the use of a pallet truck for loading and unloading. Rotate containers up to 45 degrees from floor level to provide better access to parts in containers. Platform includes a 17-1/2″ high lip on tilt side. A removable positioning bar is provided for use with smaller containers. Designed with worker safety in mind, pinch point guards are provided on loading side of the unit. 2HP 460V, 3-phase motor standard, other voltages available. Remote power unit with a protective cover measures 12″W x 32-1/2″L x 12-1/2″H. Hand pendant control standard. Optional foot control available model FC-2.
| Uniform Capacity (lb.) | 4,000 |
|---|---|
| Platform Width (in.) | 50 |
| Platform Width (in.) | 50 |
| Platform Length (in.) | 48 |
| Level Height (in.) | 1/2 |
| Lip Height (in.) | 17-1/2 |
| Remote Power Protective Cover Width (in.) | 12 |
| Remote Power Cover Length (in.) | 32-1/2 |
| Remote Power Cover Height (in.) | 12-1/2 |
| Assembled Weight | 1143 |
| Total Ship Weight | 1342 |
| Package 1 Size | 65″W x 63″D x 28″H |
| Freight | LTL Palletized |
| Weight | 1342 lbs |
|---|---|
| Dimensions | 63 × 65 × 28 in |
| Uniform Capacity (lb.) | 4, 000 |
