Mechanical Post Tables

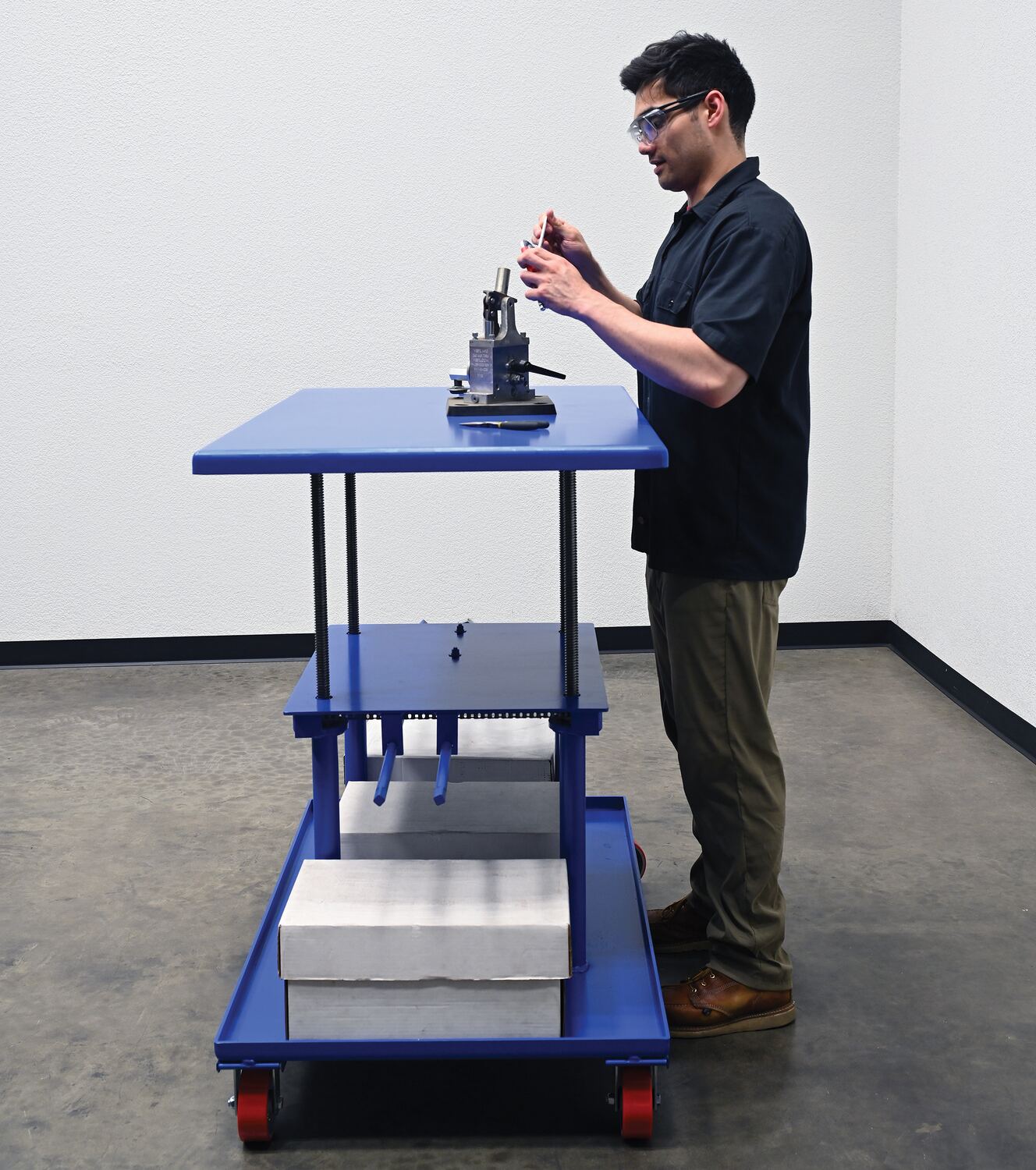

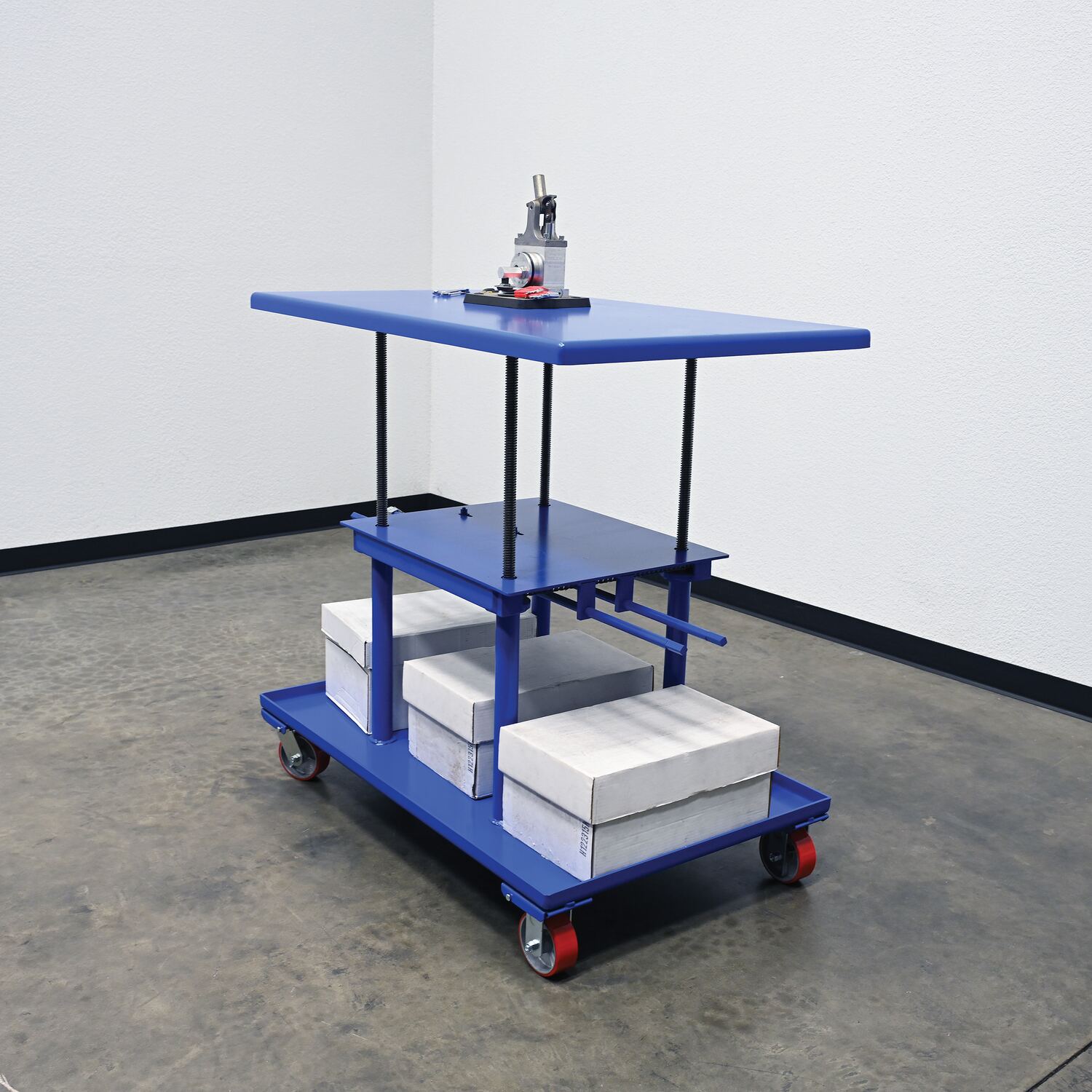

Mechanical height adjustable work tables provide precise load positioning for assembly, packaging, maintenance, machine feeding, and general material handling applications. Designed to move and hold materials at a preferred working height, these post tables help reduce bending, reaching, and unnecessary repositioning while giving operators stable support for heavy parts and products.

Positive Mechanical Lift Control

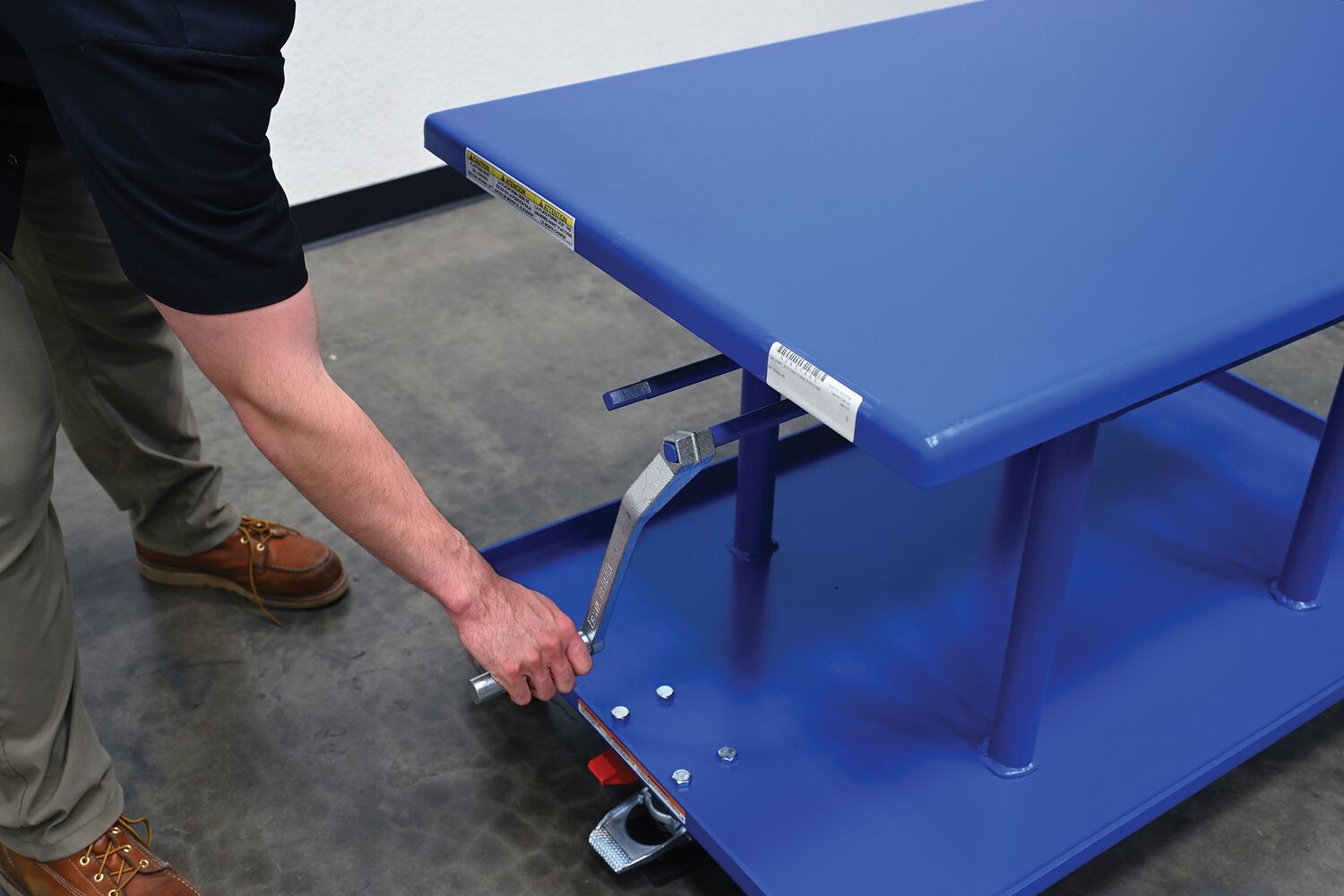

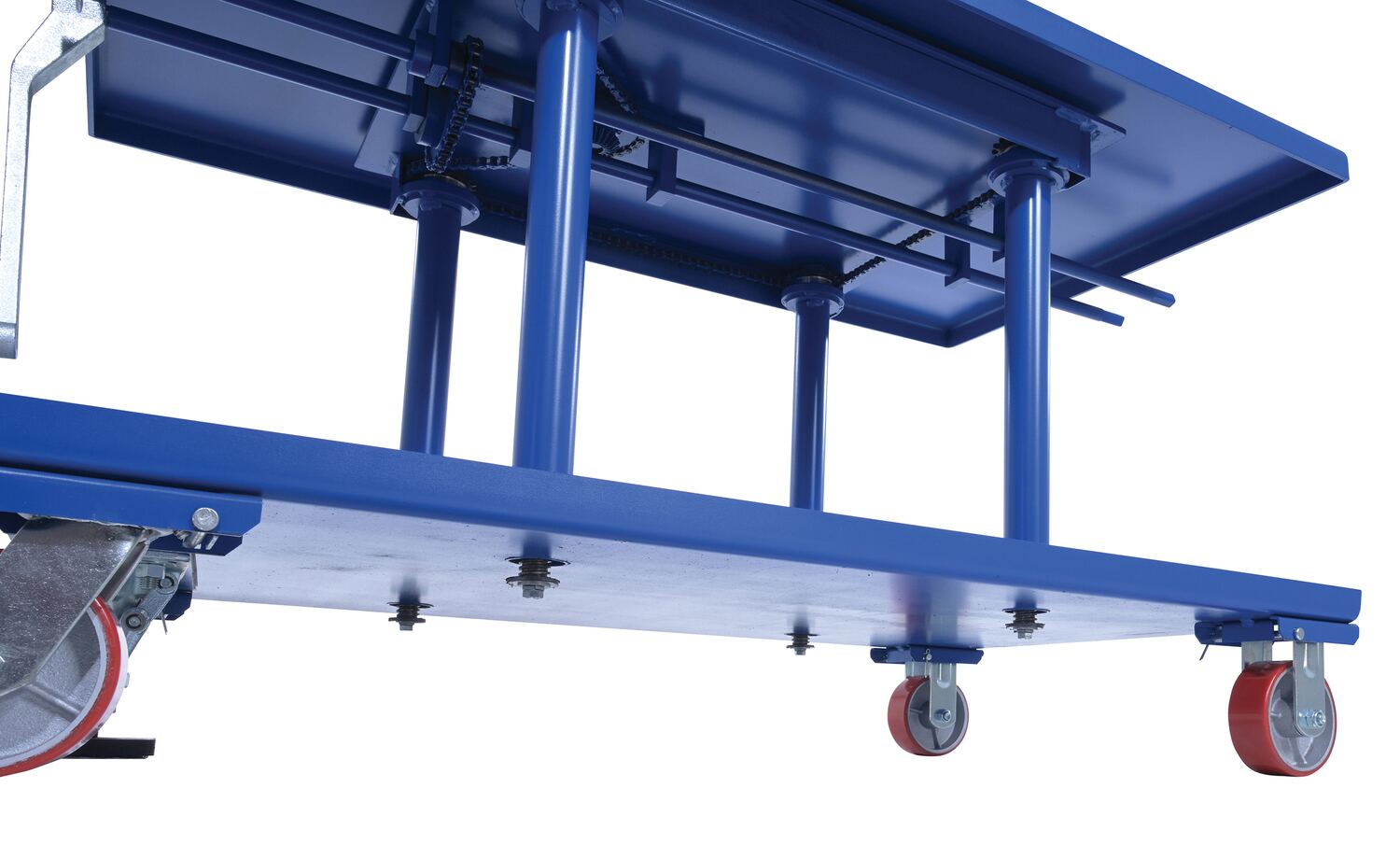

The precision sprocket and gear lifting mechanism provides positive height adjustment without downward drift, making these tables a strong choice where consistent positioning is important. A two-speed manual gear system allows operators to move heavy loads at 1/8 inch per crank rotation or lighter loads at 5/16 inch per crank rotation for faster adjustment.

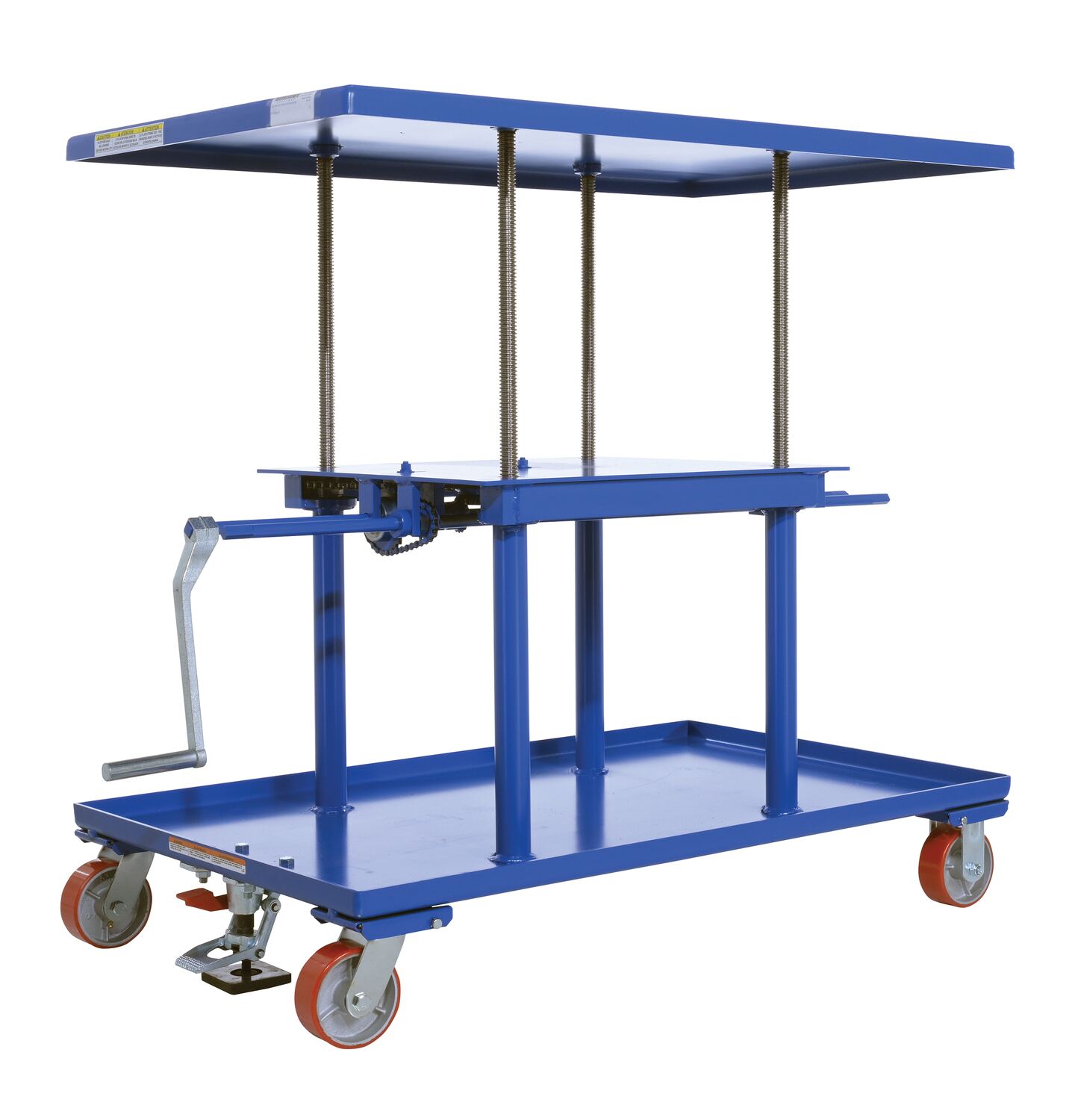

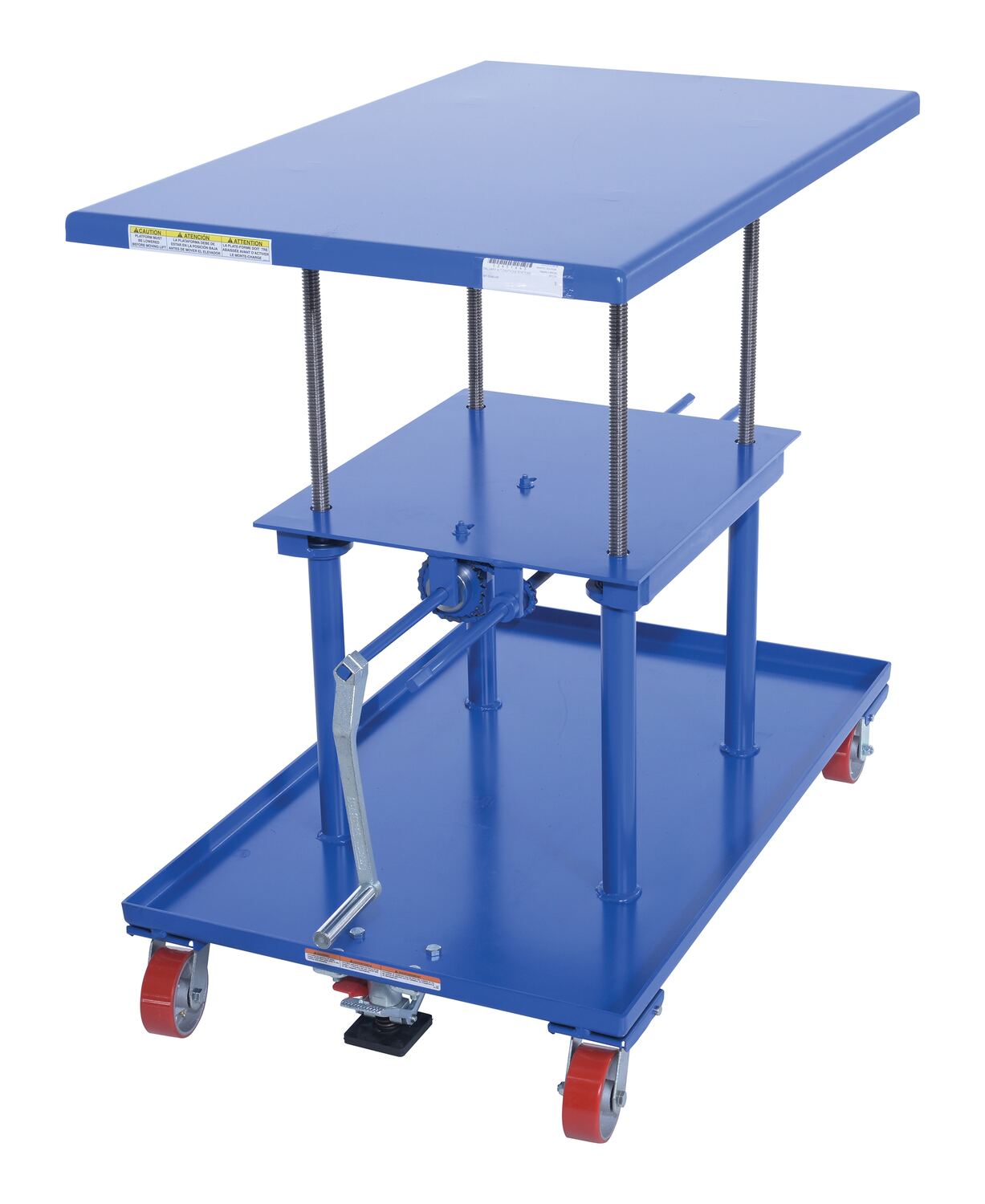

Low and High Profile Models

This family includes low-profile and high-profile configurations with platform sizes ranging from 18 x 28 inches to 30 x 60 inches. Capacities range from 1,000 lb. to 2,000 lb., giving distributors and end users options for different load sizes, working heights, and production requirements.

Mobile Steel Construction

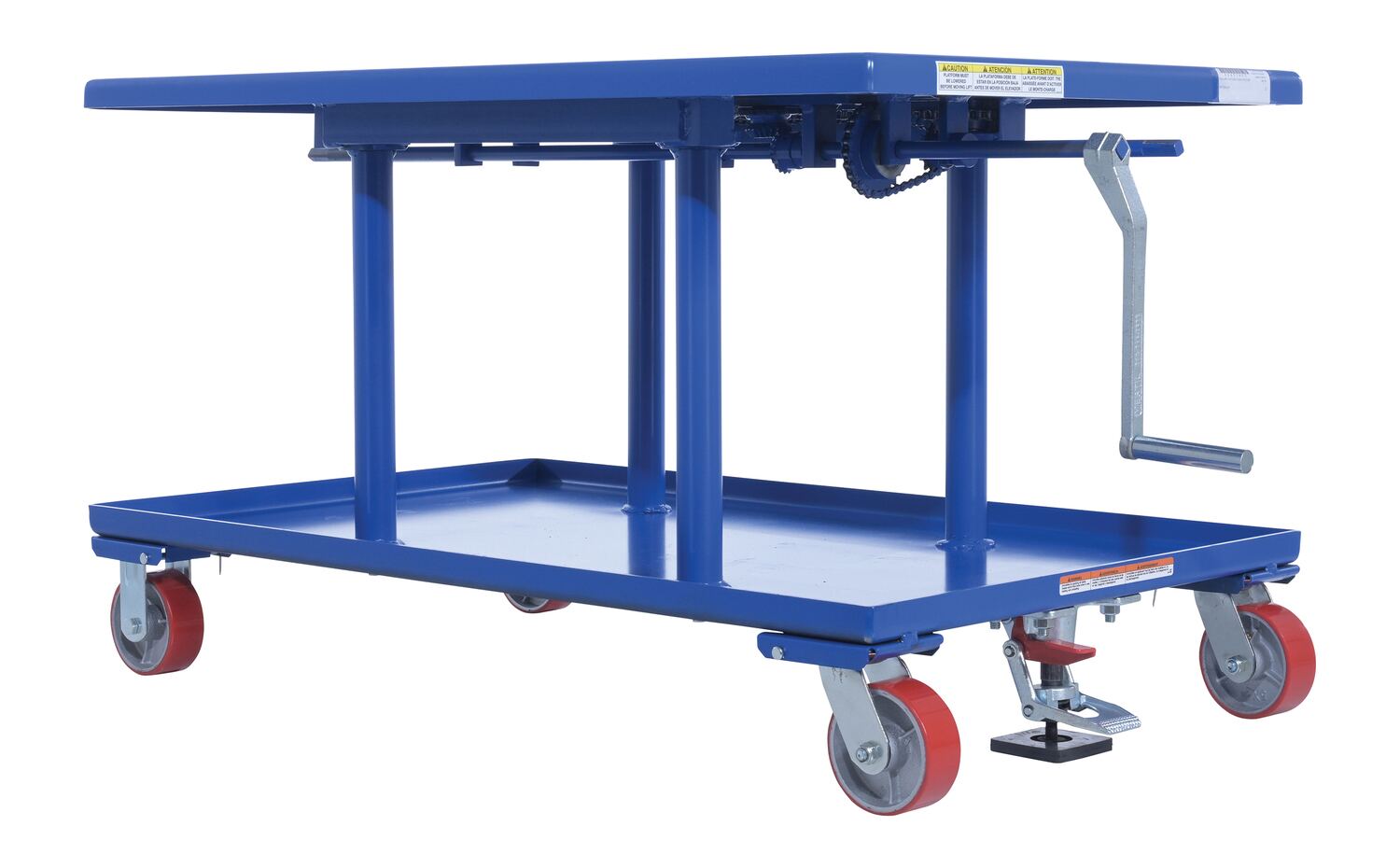

All-welded steel deck construction provides long-lasting durability in industrial environments. The tables roll on two rigid and two swivel 5 inch by 2 inch poly-on-steel casters for controlled movement, and a standard floor lock helps keep the unit in place during loading, unloading, or work positioning. A durable blue finish supports daily use in demanding facilities.

Mechanical Post Tables

model: MT-3048-HP
