Price range: $515.02 through $539.82

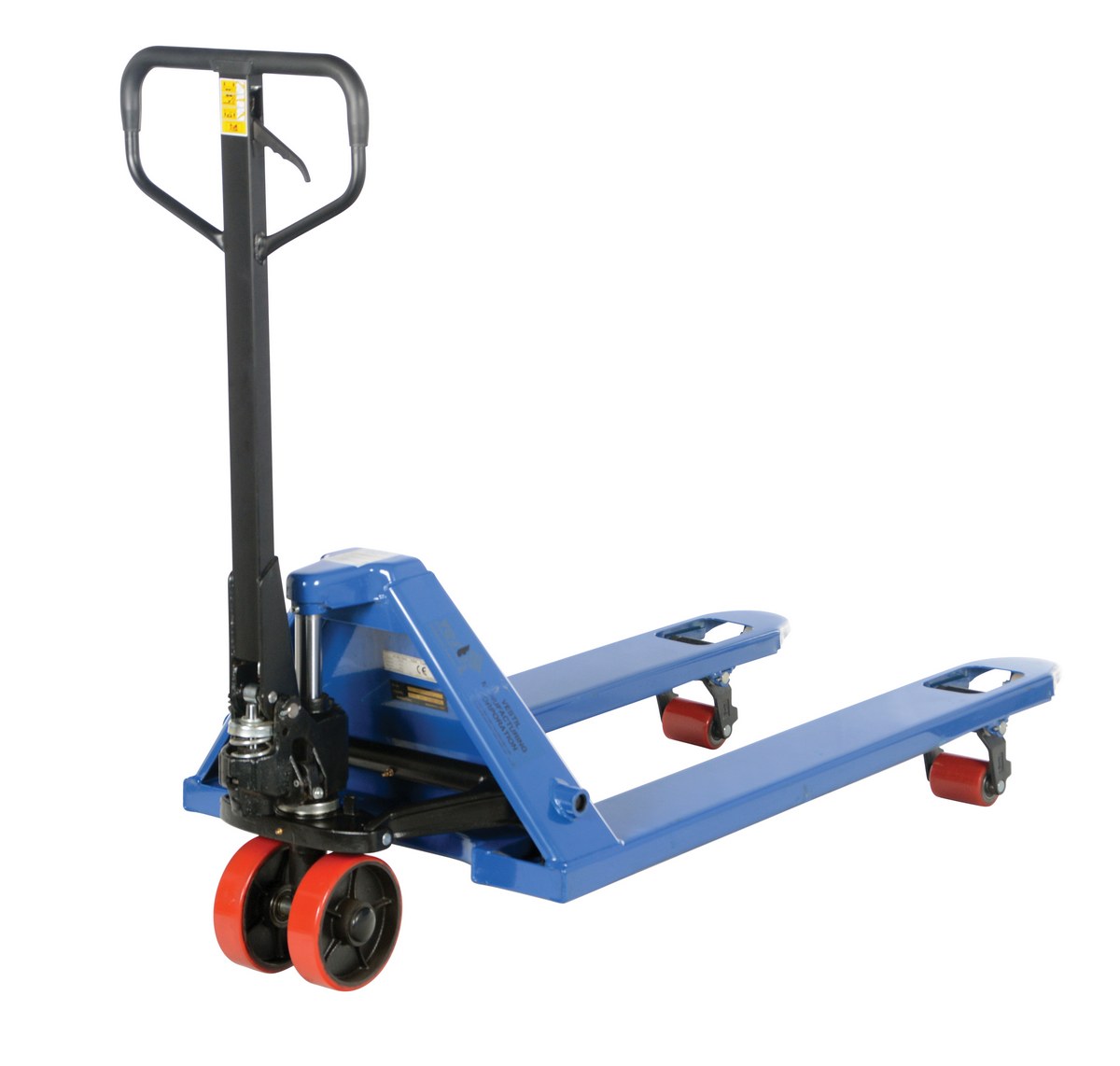

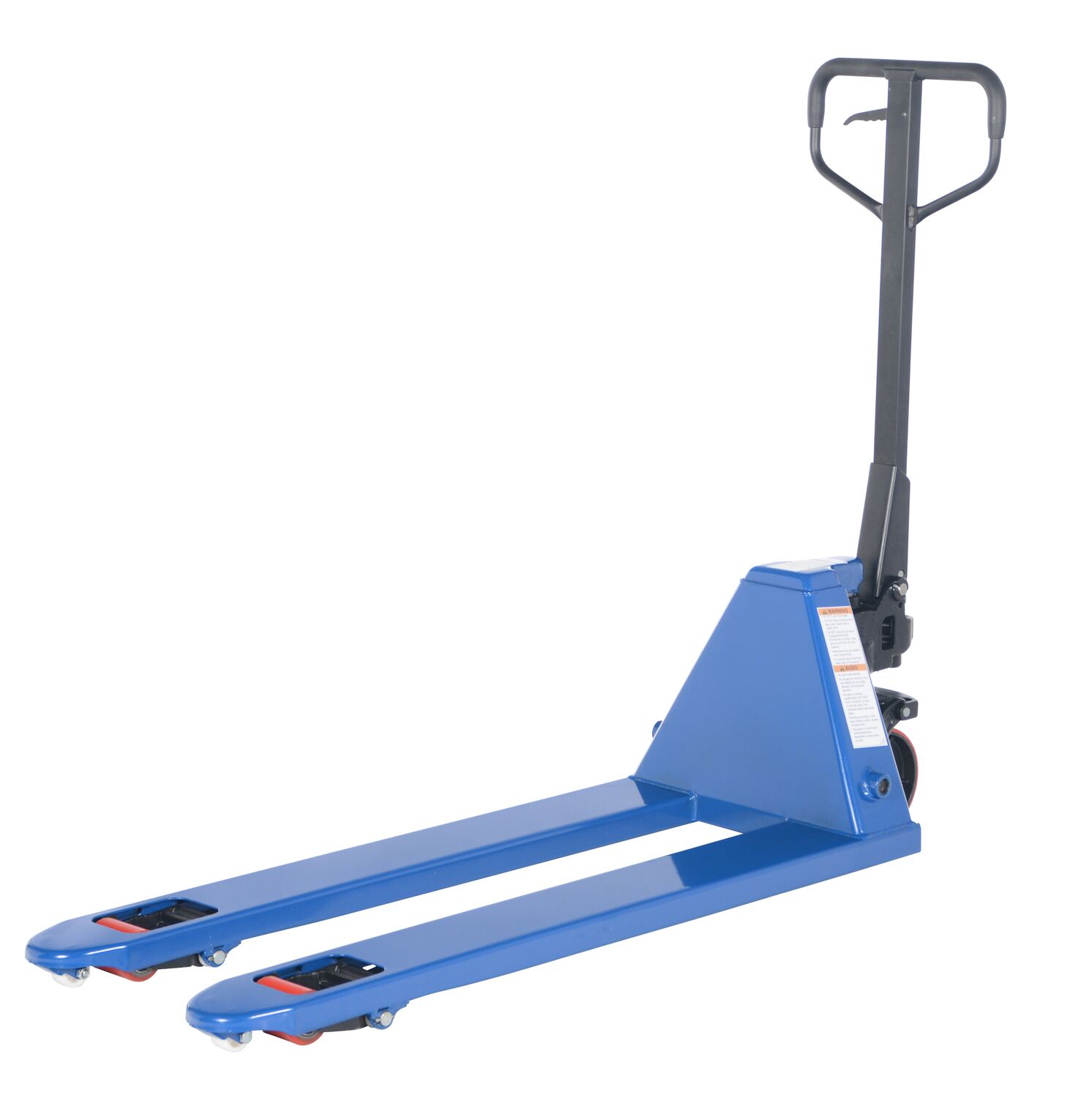

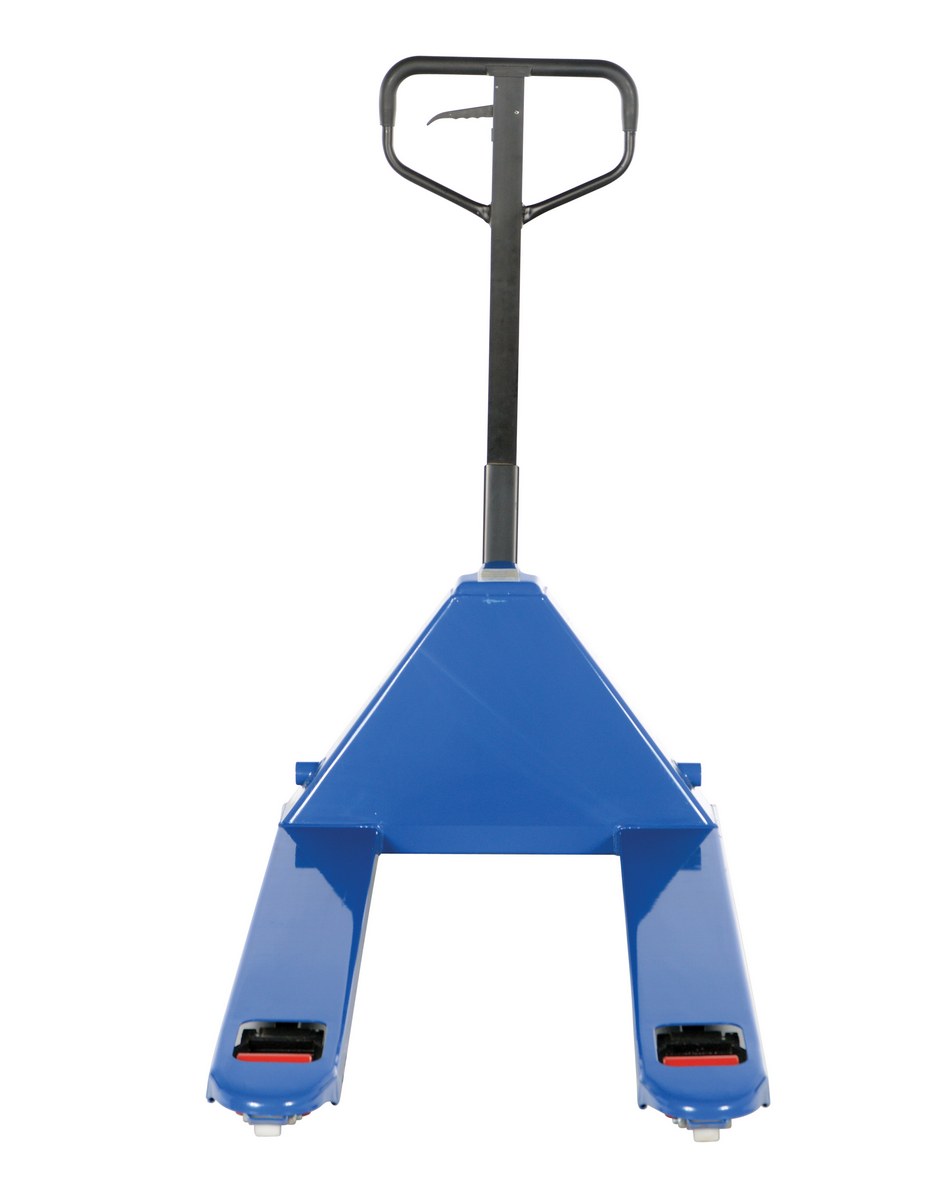

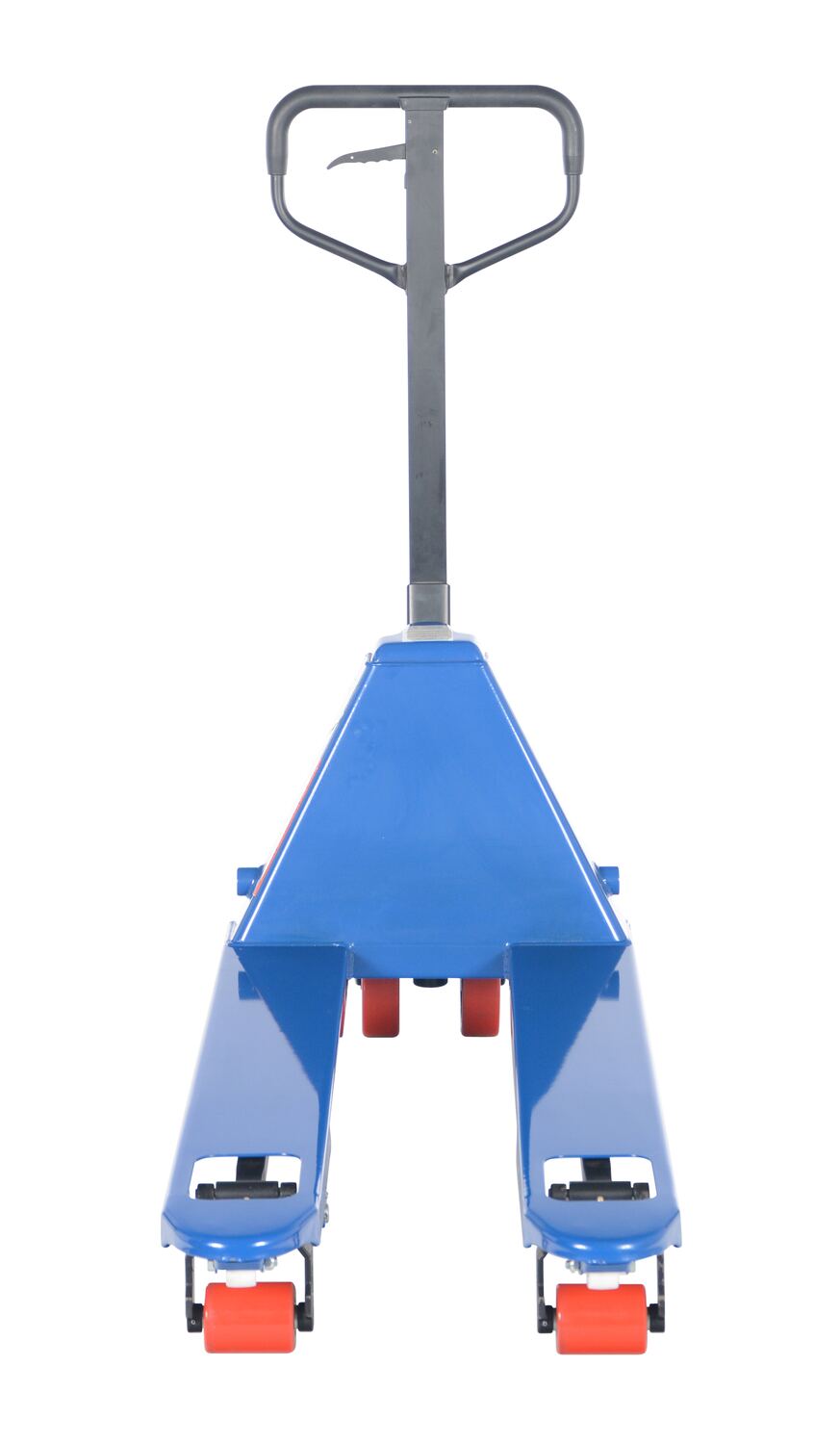

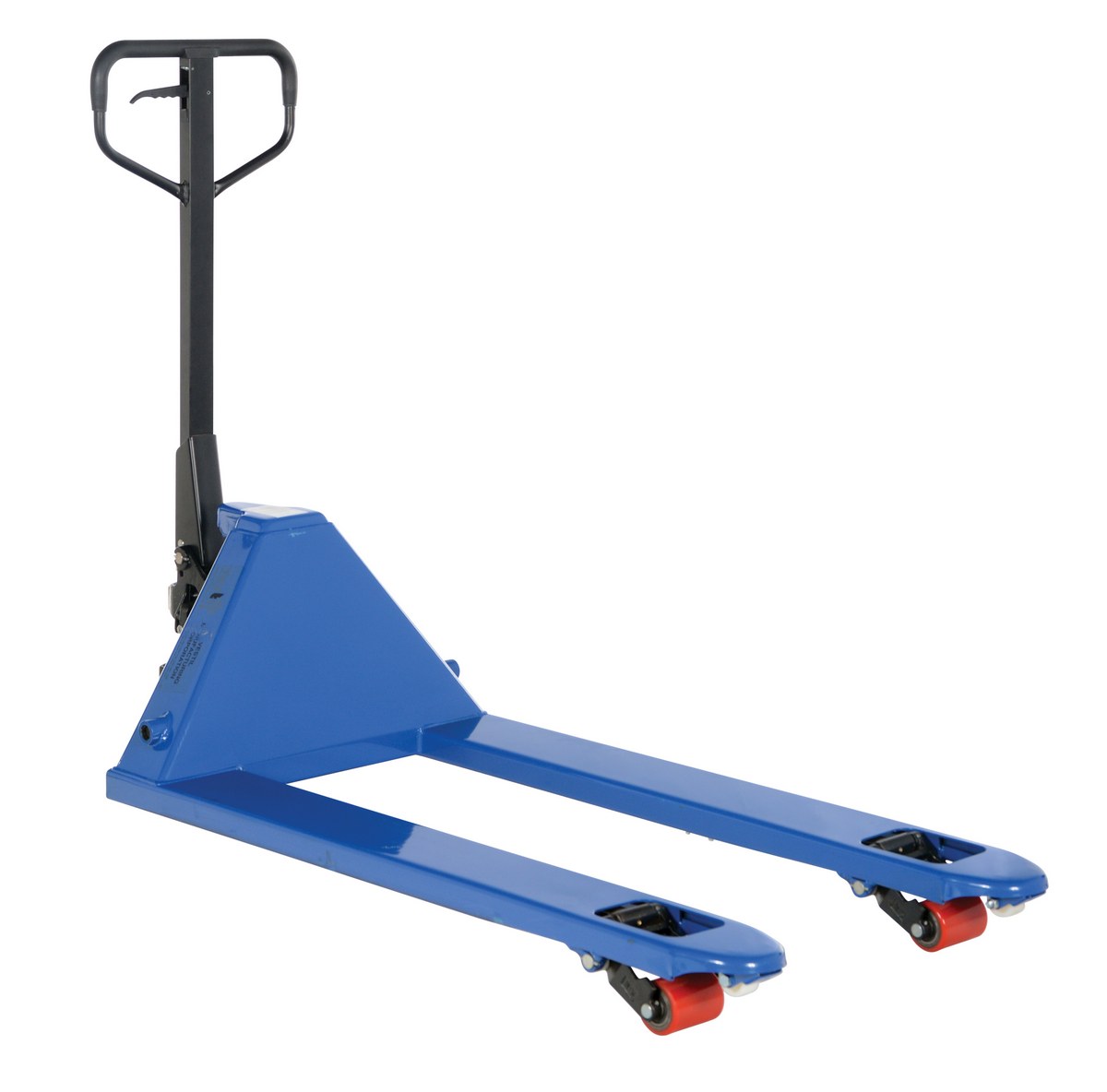

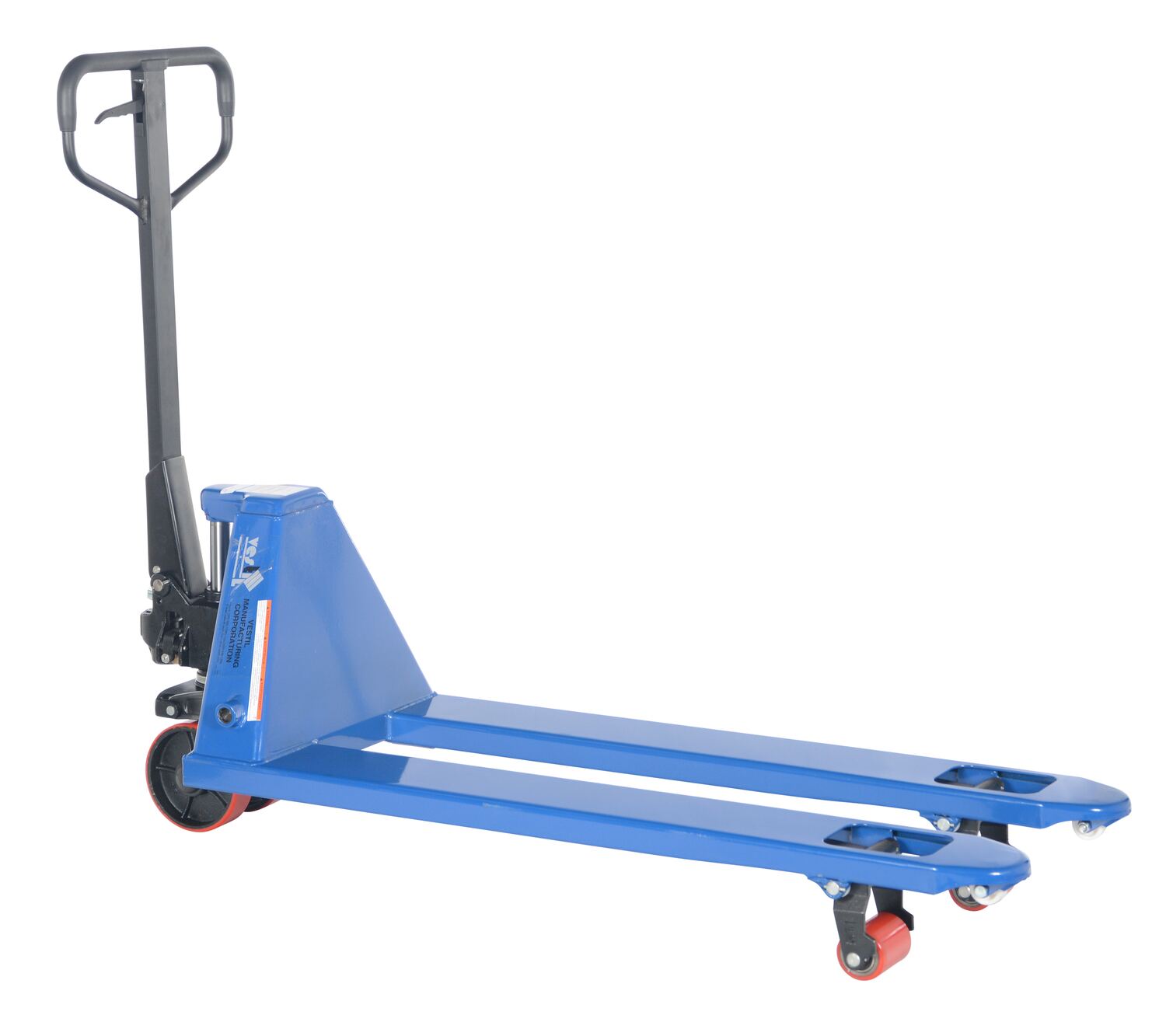

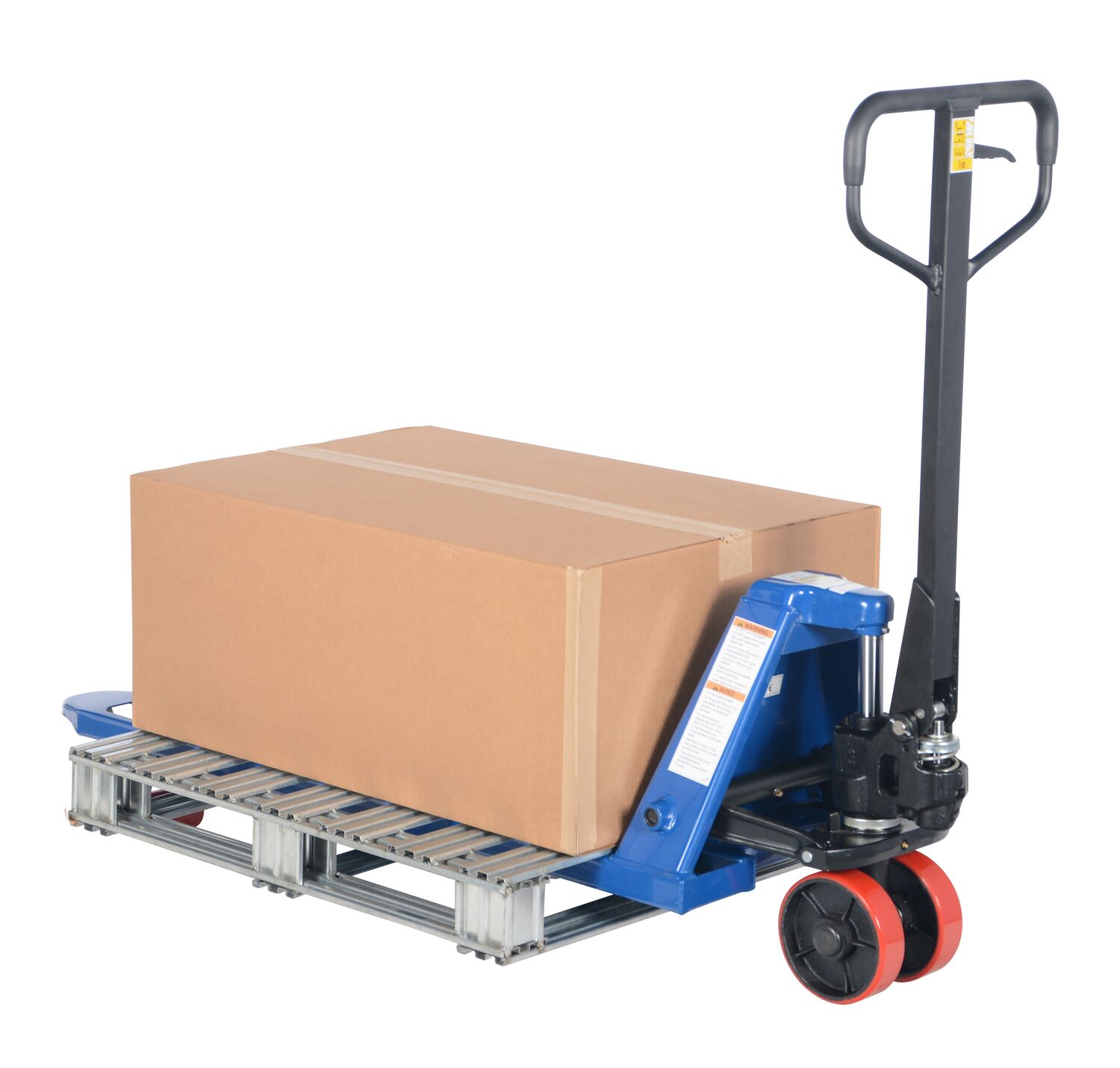

Quick Lift Pallet Jacks for Faster Manual Pallet Handling

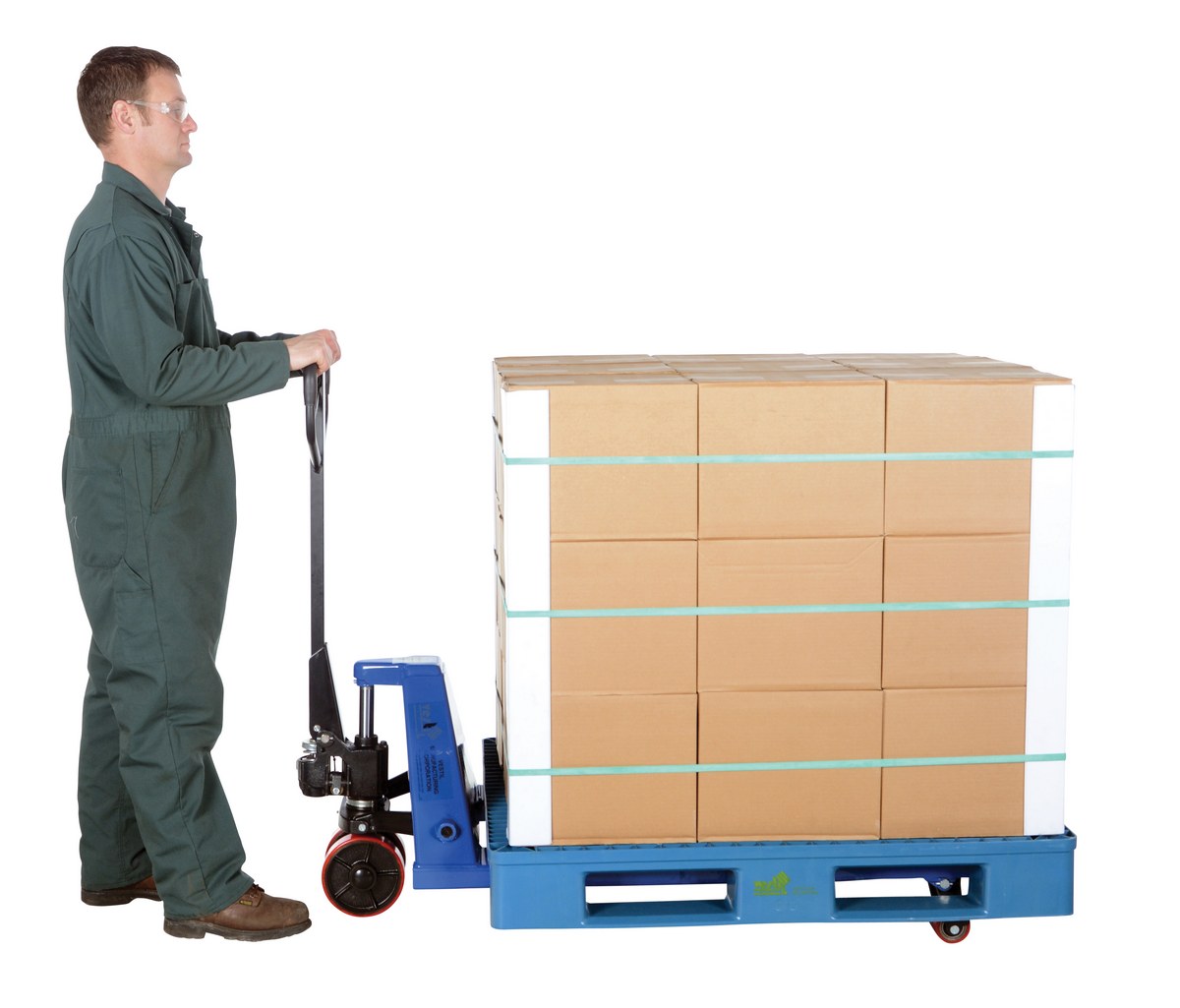

Quick lift pallet trucks provide a faster, ergonomic solution for moving heavy pallet loads through warehouses, loading docks, stockrooms, manufacturing areas, and distribution centers. Designed for one-person operation, these manual pallet jacks help reduce lift time, improve productivity, and move palletized materials without relying on a fork truck for every transport task.
The quick lift hydraulic design reaches maximum height in approximately 5 to 6 pumps when unloaded and 12 to 13 pumps when loaded. This helps reduce repetitive pumping during daily pallet movement, especially in facilities where operators handle frequent short-distance transfers.
The handle design requires only 75 lb. of pulling force when fully loaded, supporting easier movement and operator control. Nose wheels at the front edge of each fork help provide clean pallet entrance and exit, while steering wheels with bearing dust covers support longer service life.
This family supports 5,500 lb. capacity with 7 inch x 48 inch forks and service range from 2-7/8 inches to 7-3/4 inches. Models are available with 20 inch or 27 inch fork spacing to match different pallet handling needs. Reinforced triple-formed steel forks, adjustable steel push rods, polyurethane load rollers, and a blue finish provide dependable performance for demanding material handling applications.
| Weight | 205 lbs |
|---|---|
| Dimensions | 64 × 40 × 23 in |
| Model | PM5-2048-QL, PM5-2748-QL |
